Fixed Lens Mounts, with U-Shaped Groove — Model FLFT1
✔ In Stock — Ships Today

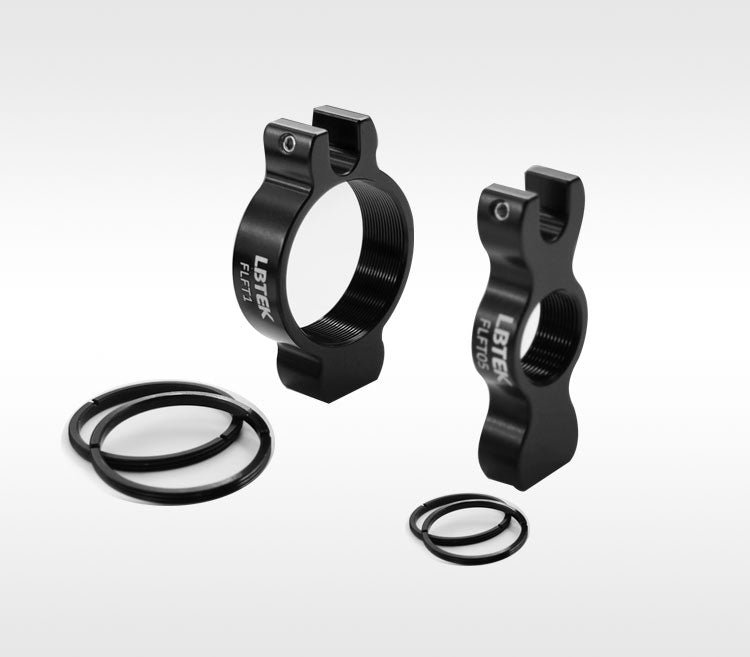

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. The FLFT series features through-threaded holes and comes with dual retaining rings to secure optical components. The top U-shaped groove design allows for mounting Ø6 mm coaxial posts, while the side is secured with set screws. The bottom is equipped with M4 threaded mounting holes for connecting to optical posts.
Key Features
- Optical Component Specifications: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm
- Internal Threads, Through-Threaded Holes
- 2 Retaining Rings
Application
Fixed lens mount, through internal thread, with two retaining rings
| Clear Aperture | 23.0 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Lens Mounts, with U-Shaped Groove (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fixed Lens Mounts, with U-Shaped Groove FLFE05 |
FLFE05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFE1 |
FLFE1
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFE2 |
FLFE2
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT05 |
FLFT05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT1 Current |
FLFT1
| — | — | — | |
| Fixed Lens Mounts, with U-Shaped Groove FLFT2 |
FLFT2
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF05 |
FLF05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF1 |
FLF1
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF2 |
FLF2
| — | — | — | View |
