Fixed Lens Mounts, with U-Shaped Groove FLFE05
FLFE05$23.24
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
Fixed Lens Mounts, with U-Shaped Groove — Model FLFE05
✔ In Stock — Ships Today

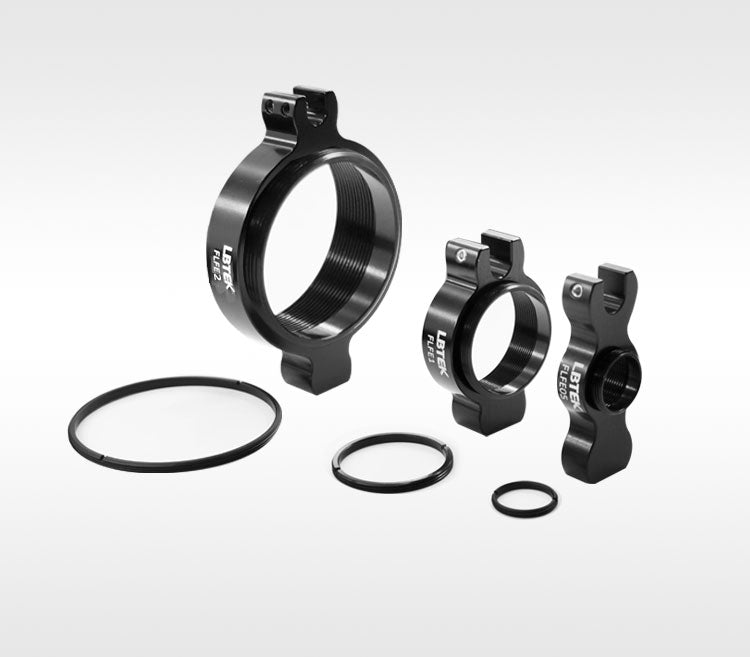

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. The FLFE series features internal and external threads for expandable connections and includes a retaining ring to secure optical components. The top U-shaped groove design allows for mounting Ø6 mm coaxial posts, while the side is secured with set screws. The bottom is equipped with M4 threaded mounting holes for connecting to optical posts.
Key Features
- Optical Component Specifications: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm
- Internal and External Threads, Expandable
- 1 retaining ring
Application
Fixed lens mount with internal and external threads, including a retaining ring
| Clear Aperture | 11.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Lens Mounts, with U-Shaped Groove (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fixed Lens Mounts, with U-Shaped Groove FLFE05 Current |
FLFE05
| — | — | — | |
| Fixed Lens Mounts, with U-Shaped Groove FLFE1 |
FLFE1
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFE2 |
FLFE2
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT05 |
FLFT05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT1 |
FLFT1
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT2 |
FLFT2
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF05 |
FLF05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF1 |
FLF1
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF2 |
FLF2
| — | — | — | View |
