Fixed Lens Mounts, with U-Shaped Groove FLF1
FLF1$20.26
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
Fixed Lens Mounts, with U-Shaped Groove — Model FLF1
✔ In Stock — Ships Today

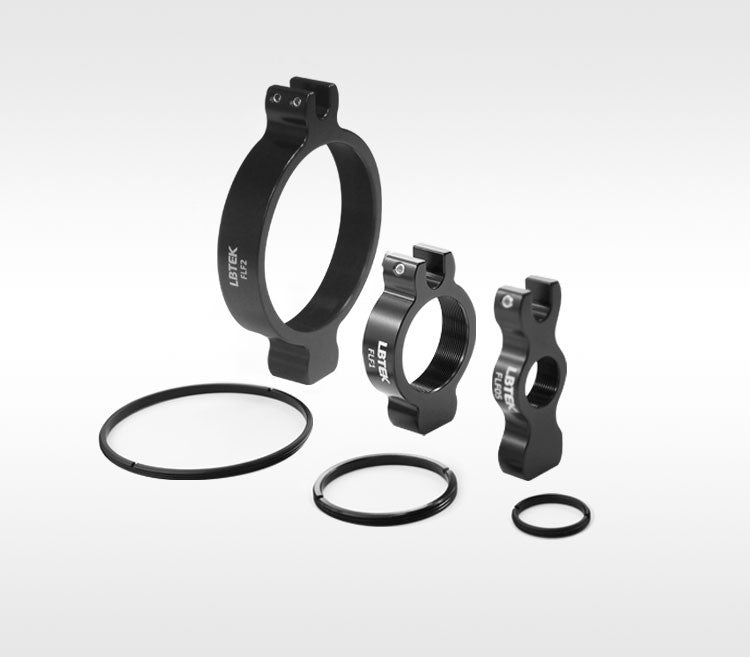

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. The FLF series features mounting steps for optical components and includes one retaining ring for securing optical components with a maximum thickness of 5.2 mm. The top U-shaped groove design allows for mounting Ø6 mm coaxial posts, while the side is secured with set screws. The bottom is equipped with M4 threaded mounting holes for connecting to optical posts.
Key Features
- Optical Component Specifications: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm
- Internal Thread with Optical Component Mounting Steps
- Including 1 retaining ring
Application
Fixed lens mount with optical component mounting step, including one retaining ring
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Lens Mounts, with U-Shaped Groove (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fixed Lens Mounts, with U-Shaped Groove FLFE05 |
FLFE05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFE1 |
FLFE1
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFE2 |
FLFE2
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT05 |
FLFT05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT1 |
FLFT1
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLFT2 |
FLFT2
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF05 |
FLF05
| — | — | — | View |
| Fixed Lens Mounts, with U-Shaped Groove FLF1 Current |
FLF1
| — | — | — | |
| Fixed Lens Mounts, with U-Shaped Groove FLF2 |
FLF2
| — | — | — | View |
