Fixed Lens Mounts, with U-Shaped Groove — Model FLFT05

✔ In Stock — Ships Today

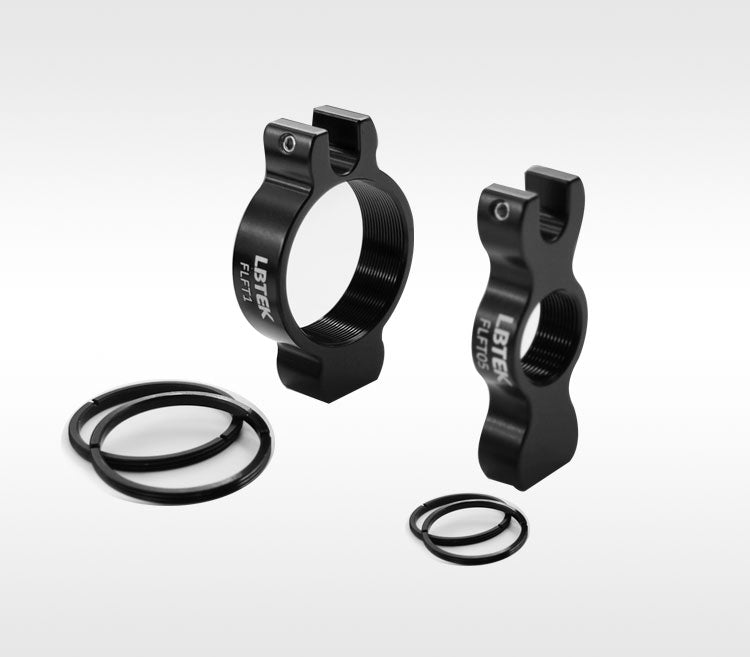

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. The FLFT series features through-threaded holes and comes with dual retaining rings to secure optical components. The top U-shaped groove design allows for mounting Ø6 mm coaxial posts, while the side is secured with set screws. The bottom is equipped with M4 threaded mounting holes for connecting to optical posts.

Key Features

  • Optical Component Specifications: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm
  • Internal Threads, Through-Threaded Holes
  • 2 Retaining Rings

Application

Fixed lens mount, through internal thread, with two retaining rings

Material 6061-T6 Aluminum Alloy
Drive mode SM05
Applicable optical element diameter Ø12.7 mm
Bottom threaded hole specifications M4
Clear Aperture Ø11.4 mm
Coaxial rod fixing method Set screw
Maximum applicable thickness of optical components 4.2 mm
Surface Treatment Black anodized
Applicable optical element diameter 17.5 mm
Rod mounting threaded hole SM05R/2 pcs
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
