Fixed Lens Mounts, with U-Shaped Groove — Model FLFE1
✔ In Stock — Ships Today

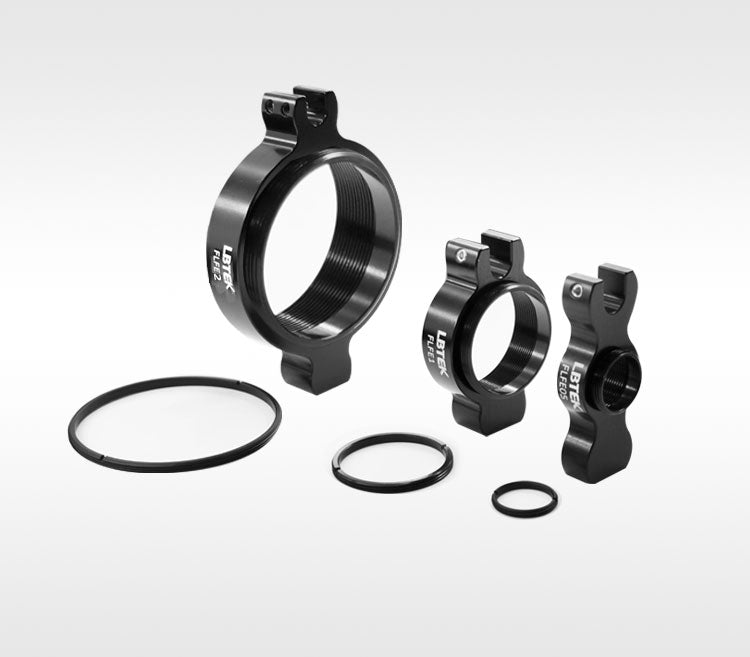

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. The FLFE series features internal and external threads for expandable connections and includes a retaining ring to secure optical components. The top U-shaped groove design allows for mounting Ø6 mm coaxial posts, while the side is secured with set screws. The bottom is equipped with M4 threaded mounting holes for connecting to optical posts.
Key Features
- Optical Component Specifications: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm
- Internal and External Threads, Expandable
- 1 retaining ring
Application
Fixed lens mount with internal and external threads, including a retaining ring
| Material | 6061-T6 Aluminum Alloy |
| Drive mode | SM1 |
| Applicable optical element diameter | Ø25.4 mm |
| Bottom threaded hole specifications | M4 |
| Clear Aperture | Ø23.0 mm |
| Coaxial rod fixing method | Set screw |
| Maximum applicable thickness of optical components | 7.2 mm |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | 17.5 mm |
| Rod mounting threaded hole | SM1R/1 piece |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Lens Mounts, with U-Shaped Groove (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
