What wavelength range does Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge support?

Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge operates at a center wavelength of 2.0 nm.

What are the physical dimensions of Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge?

Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge dimensions: Diameter: 25.4 mm. Thickness: 5.0 mm.

What documentation is available for Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge?

The following documents are available for download on the Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge

Name: Germanium Windows, Uncoated, 2.0 μm-16.0 μm OW2-Ge
Brand: WaveQuanta
SKU: OW2-Ge
Price: 223.13 SGD
Availability: InStock

OW2-Ge

$223.13

In Stock

Key Specifications

Wavelength 2.0nm

Diameter 25.4mm

Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Germanium Windows, Uncoated, 2.0 μm-16.0 μm — Model OW2-Ge

Operating wavelength 2.0 μm-16.0 μm, Ø25.4 mm, substrate Ge.

Product Description

Optical Material: Germanium
Wavelength Range: 2.0 μm -16.0 μm

LBTEK offers standard uncoated Germanium (Ge) high-precision windows. These uncoated windows operate within a wavelength range from 2.0 μm to 16.0 μm, exhibiting high transmittance across the entire spectral band. For details, see the transmittance curve. Due to Germanium's broad infrared transmission spectrum, it is highly suitable for infrared laser applications. Germanium's opacity in the visible light spectrum also allows it to function as a long-pass filter, transmitting wavelengths above 2.0 μm. The spectral transmittance of Germanium is highly sensitive to temperature. At an ambient temperature of 100°C, the material's absorption increases significantly, becoming nearly opaque, and at 200°C, it becomes completely opaque. Safety Notice: Germanium contains hazardous substances. While operation, wear gloves, a particulate-filtering respirator, chemical safety goggles, and impermeable protective clothing. Wash hands thoroughly after operation.

Germanium Windows, Uncoated, 2.0 μm-16.0 μm

Substrate Material: Germanium
Operating Wavelength: 2.0 μm -16.0 μm

The spectral transmittance of germanium is highly sensitive to temperature; at an ambient temperature of 100°C, the material's absorption becomes so significant that it is nearly opaque, and it becomes completely opaque at 200°C. Germanium material contains hazardous substances. While operation, it is necessary to wear gloves, a filtering dust mask, chemical safety goggles, and anti-infiltration work cloths. Additionally, hands should be washed after operation. All LBTEK circular lenses can be mounted in LBTEK standard lens sleeves, fixed lens holders, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

Clear Aperture	90% CA
Operating Wavelength	2.0 μm-16.0 μm
Thickness	5.0 mm
Diameter	25.4 mm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

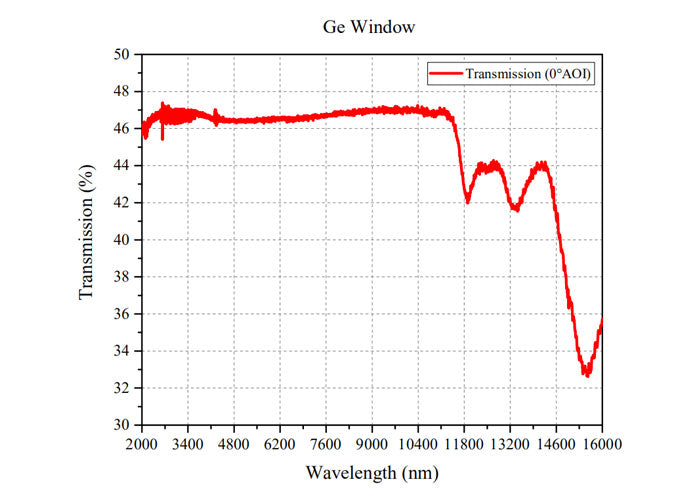

Curve 1
