Microscopy Uncooled Camera — Model MP-X5FA1
8 MP Microscopy Uncooled Camera with USB3.0/HDMI interface; 380-650 nm spectral response, 2.0 μm × 2.0 μm pixel size.
Overview

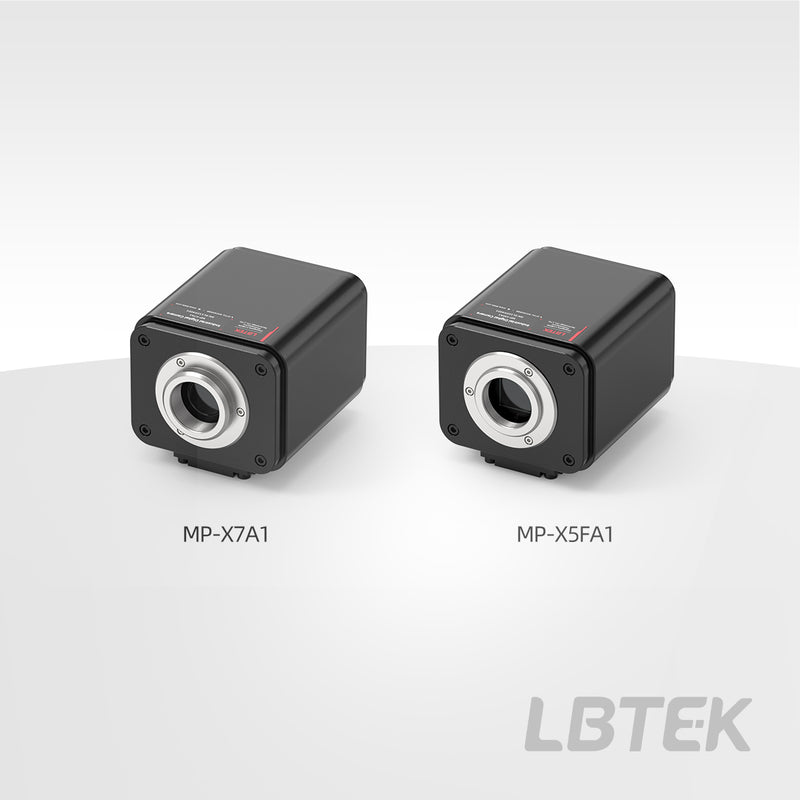

LBTEK offers two models of multi-interface cameras for selection: MP-X5FA1 and MP-X7A1.
The MP-X5FA1 supports multiple output methods including HDMI, WiFi, and USB, and features an embedded autofocus system capable of automatically focusing on specific areas of a scene.
The MP-X7A1 camera supports various output methods such as HDMI, WiFi, USB, and NETWORK, adding a LAN port output compared to the MP-X5FA1, and also enables focus control via software.
Key Features
- 4K HDMI/WiFi/USB multi-interface synchronous output
- Supports SD card/USB flash drive for saving captured videos or images
| Spectral range | 380-650 nm |
| Pixel size | 2.0 μm × 2.0 μm |
| Effective pixels | 8 MP |
| Sensor size | 1/1.8'' |
| Frame Rate & Resolution | 60@3840*2160a |
| Shutter Type | Rolling shutter |
| color | Colorful |
| Bit Depth | 12 bit |
| Data Transfer Interface | USB3.0/HDMI |
| Exposure time | 0.019 ms~1000 ms |
| Optical Interface | C-Mount |
| Sensitivity | 3541 mv with 1/30 s b |
| Dark current | 0.15 mv with 1/30 s |
| Power Supply Type | DC 12V/1A |
| Operating Temperature | -10~50 ℃ |
| Storage Temperature | -20~60 ℃ |
| Humidity | 30%-80%, no condensation |
| Size | 65 mm×78 mm×94.5 mm |
No CAD drawings available for this product.

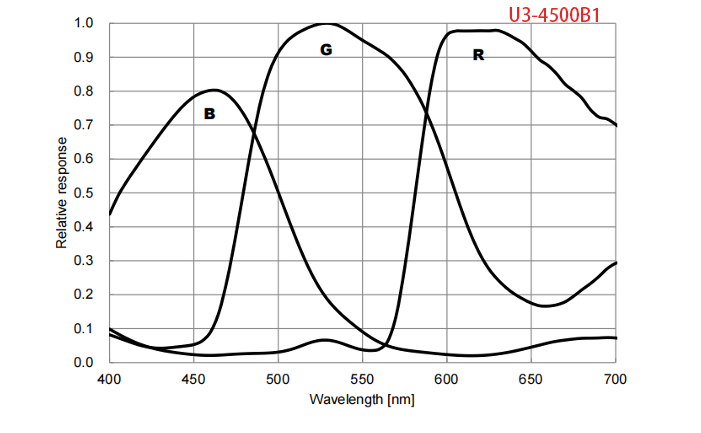

Spectral Response 1 — Graph

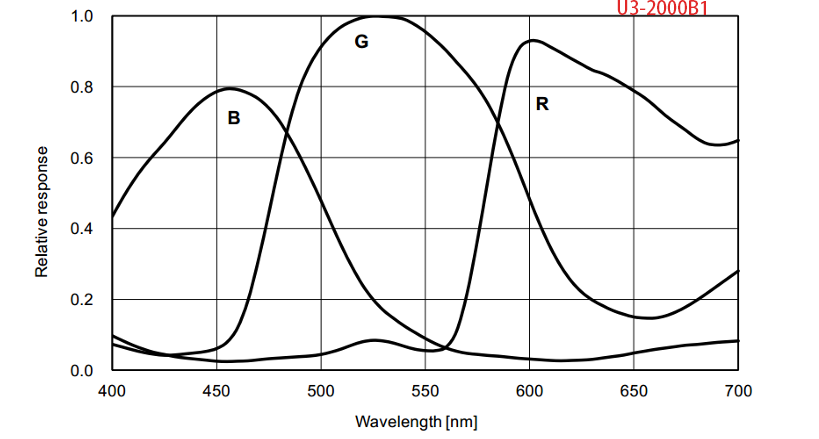

Spectral Response 2 — Graph

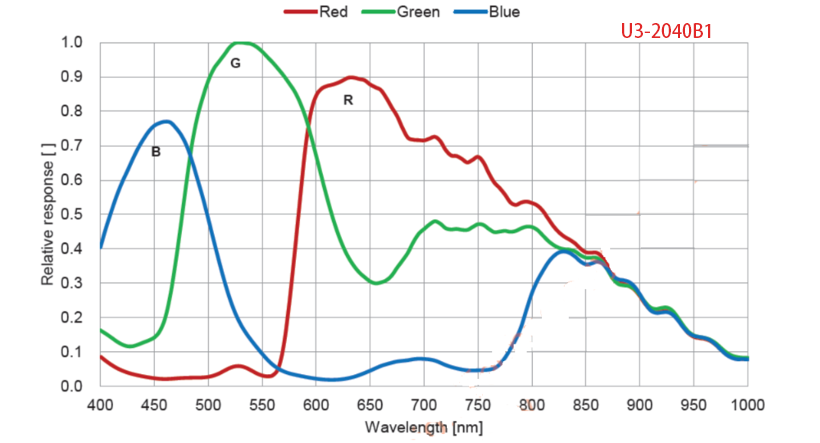

Spectral Response 3 — Graph

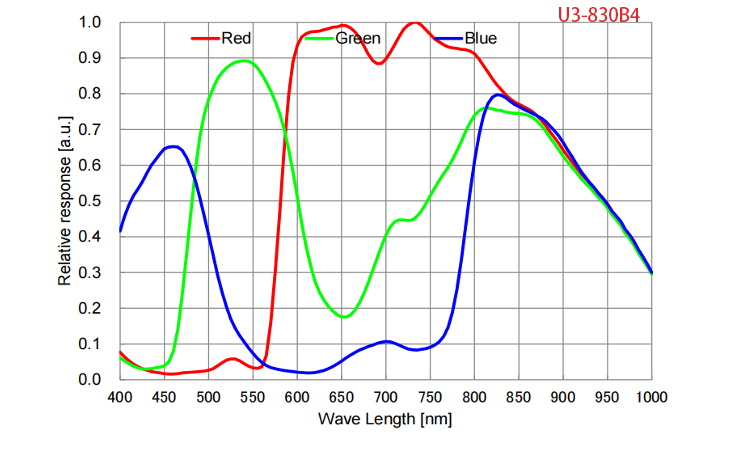

Spectral Response 4 — Graph

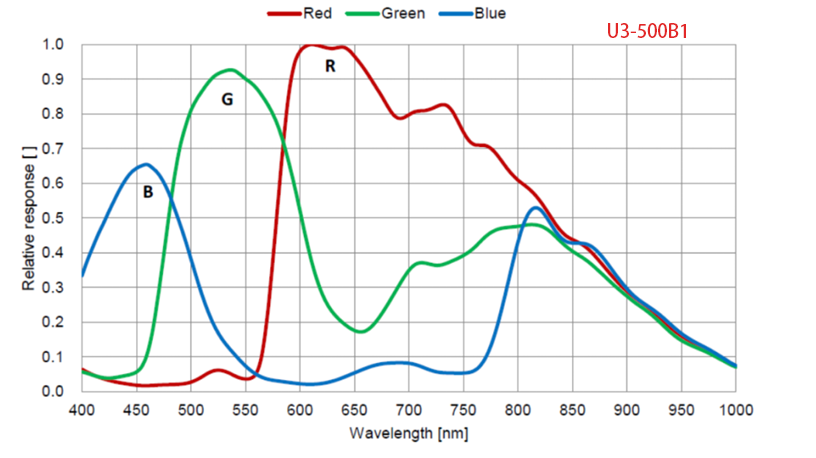

Spectral Response 5 — Graph

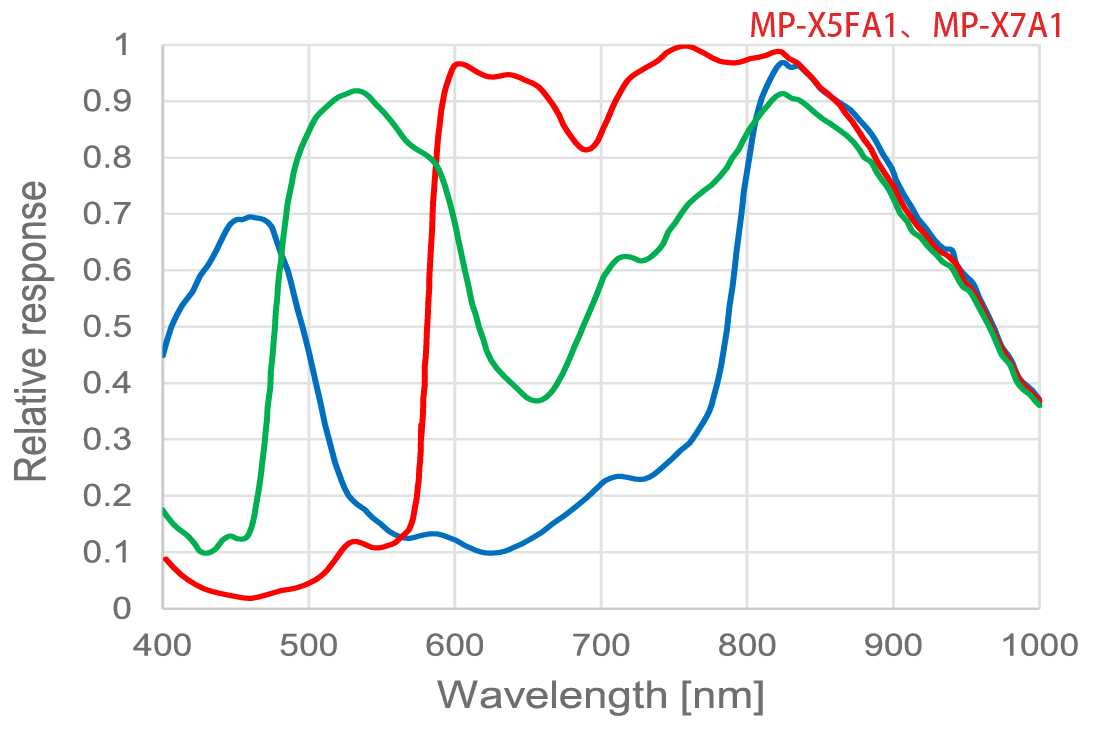

Spectral Response 6 — Graph

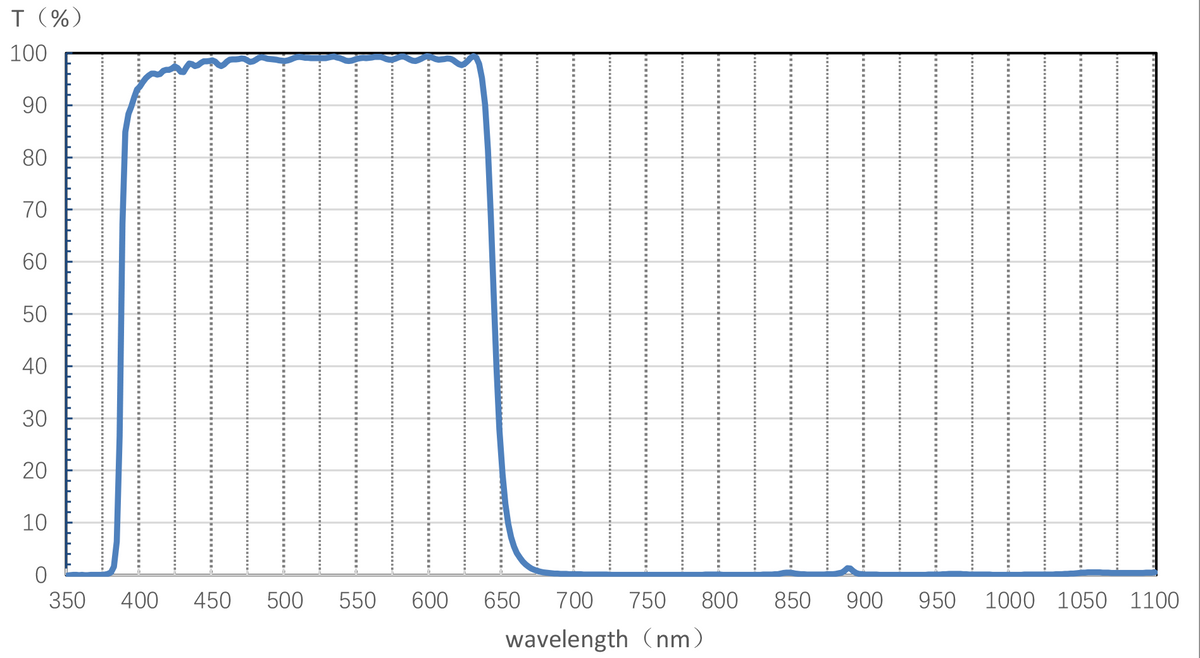

Spectral Response 7 — Graph
