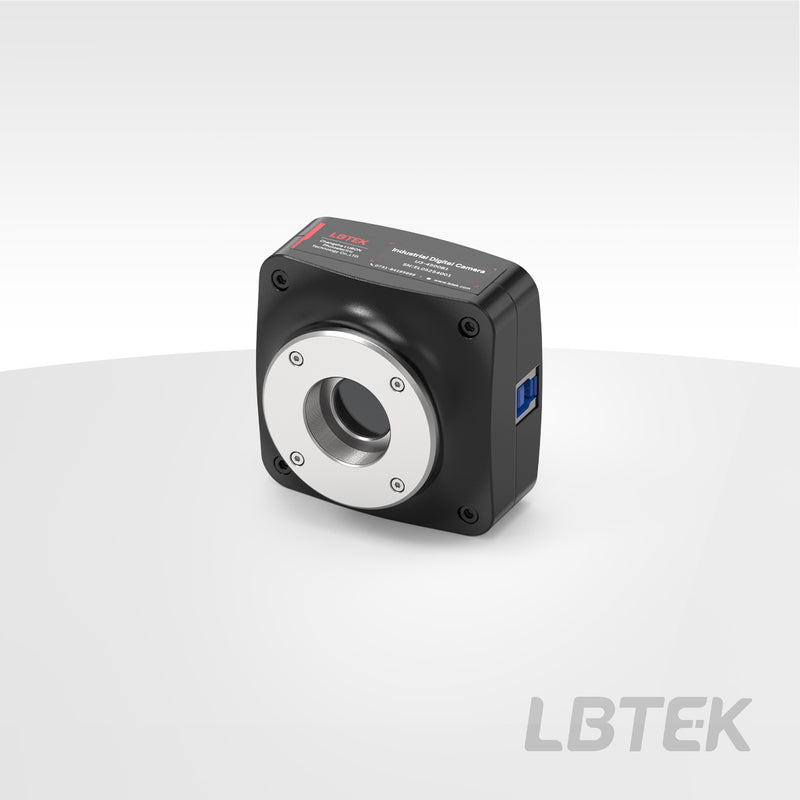

Microscopy Uncooled Camera — Model U3-830B4

8.3 MP Microscopy Uncooled Camera with USB3.0 interface; 380-650 nm spectral response, 2.9 μm × 2.9 μm pixel size.

Overview

LBTEK's U3 series cameras offer pixel resolutions ranging from 5 million to 45 million, featuring a USB3.0 data interface.

Utilizing USB3.0 data transfer technology, they ensure fast and stable transmission of video/images.

The input port adopts a C-Mount optical connector, which can be connected to SM1 coaxial mounting plates or SM1 lens tubes via SM1 threaded adapters (e.g., SM1-CC), enabling integration into 30 mm coaxial systems.

Key Features

C-Mount optical connector
Ultra-high sensitivity and ultra-low noise
High transmission rate

Spectral range	380-650 nm
Pixel size	2.9 μm × 2.9 μm
Effective pixels	8.3 MP
Sensor size	1/1.2''
Shutter Type	Rolling shutter
color	Colorful
Bit Depth	8 bit/12 bit
Data Transfer Interface	USB3.0
Exposure time	0.02 ms~15 s
Optical Interface	C-Mount
Sensitivity	5970 (mV/lx/s) ^a
Dark current	0.13 mv with 1/30 s
Power Supply Type	USB3.0 interface power supply
Operating Temperature	-10~50 ℃
Storage Temperature	-20~60 ℃
Humidity	30%-80%, no condensation
Size	68 mm×68 mm×46.6 mm

Specification Sheet PDF — Download

User Manual PDF

CAD Drawing Download

3D Model (STL) STL — Download

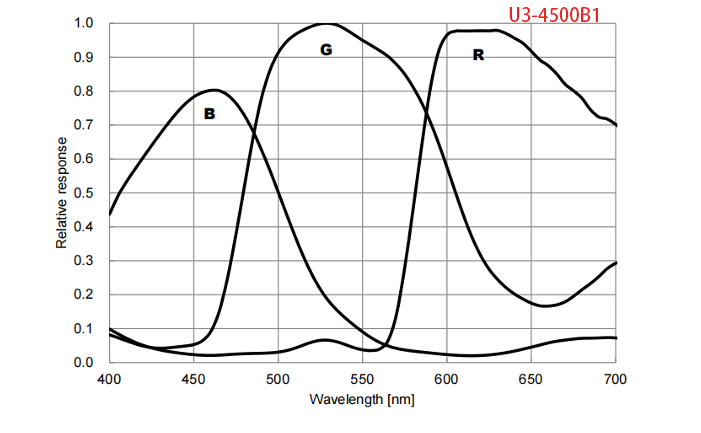

Spectral Response 1 — Graph

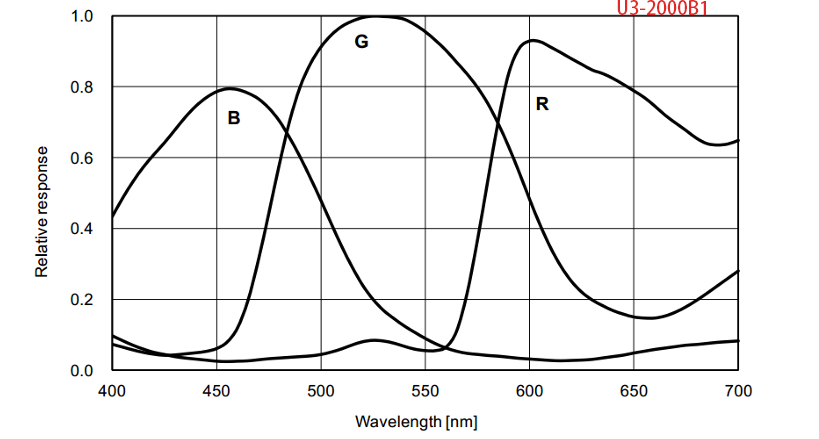

Spectral Response 2 — Graph

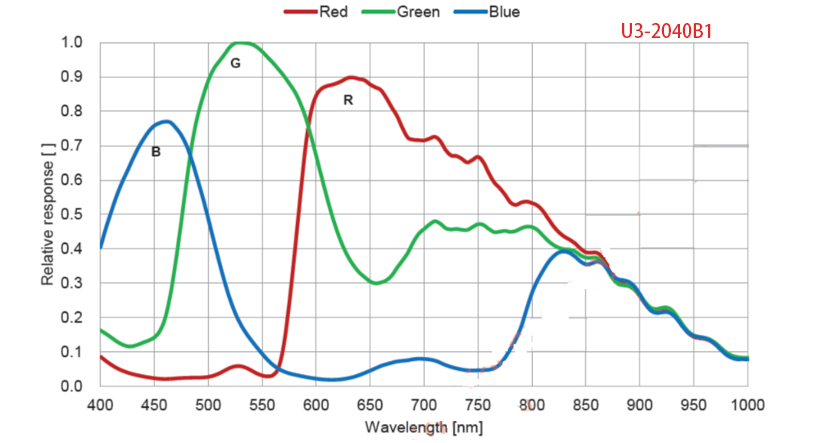

Spectral Response 3 — Graph

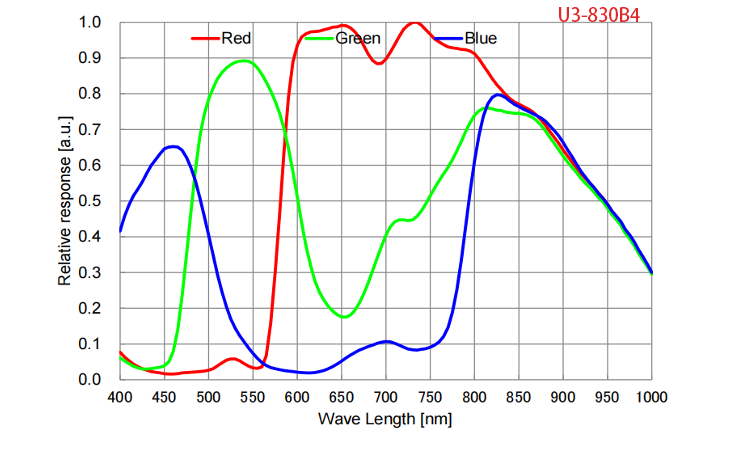

Spectral Response 4 — Graph

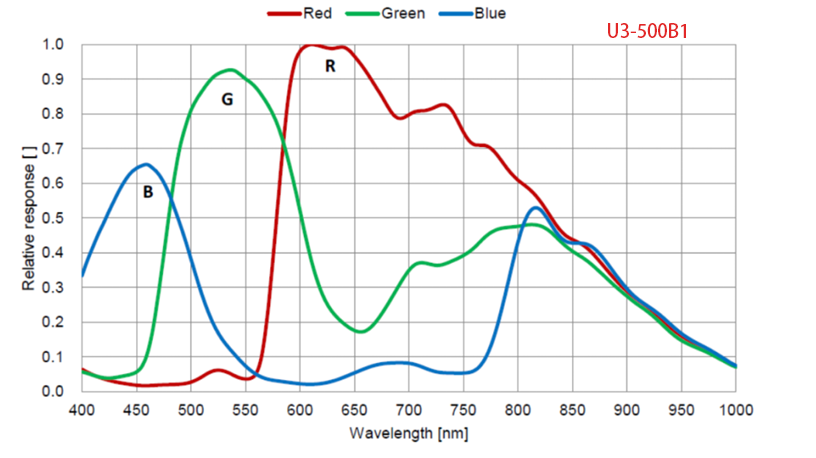

Spectral Response 5 — Graph

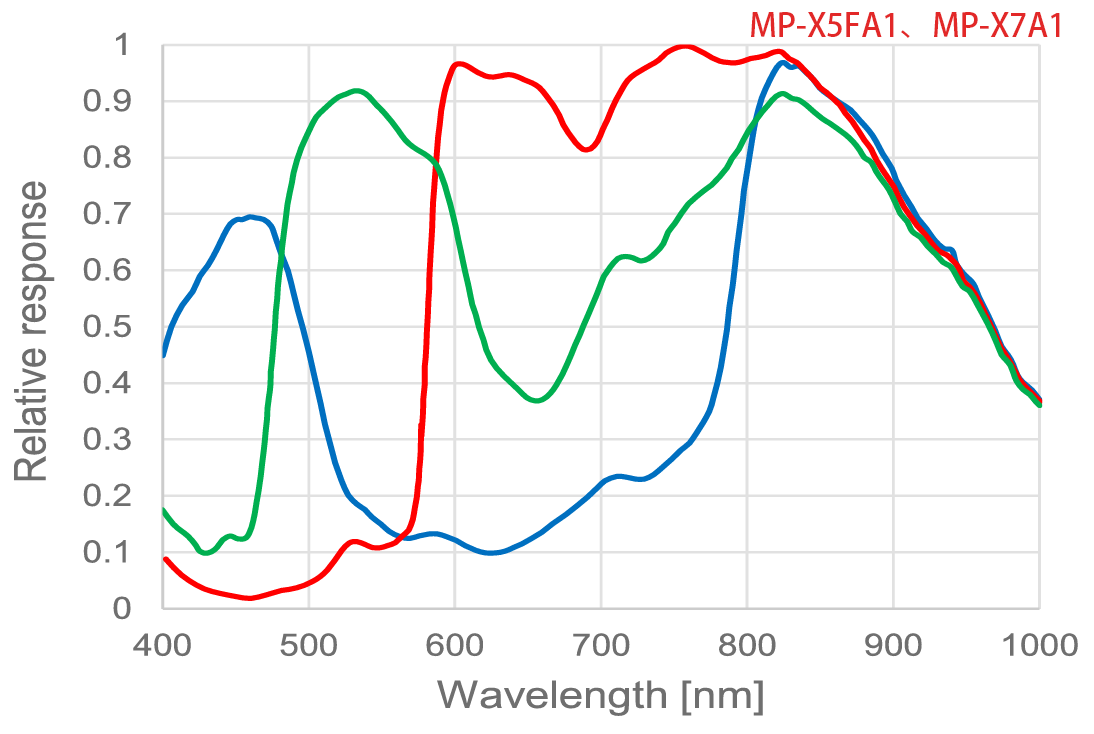

Spectral Response 6 — Graph

Spectral Response 7 — Graph
