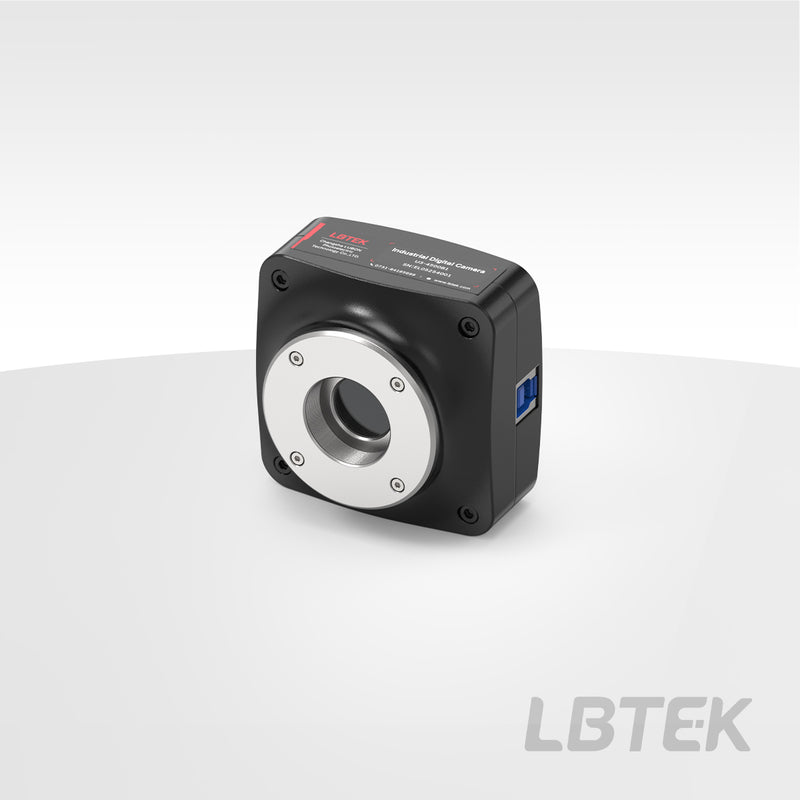

Microscopy Uncooled Camera — Model U3-2000B1
20 MP Microscopy Uncooled Camera with USB3.0 interface; 380-650 nm spectral response, 2.4 μm × 2.4 μm pixel size.
Overview
LBTEK's U3 series cameras offer pixel resolutions ranging from 5 million to 45 million, featuring a USB3.0 data interface.
Utilizing USB3.0 data transfer technology, they ensure fast and stable transmission of video/images.
The input port adopts a C-Mount optical connector, which can be connected to SM1 coaxial mounting plates or SM1 lens tubes via SM1 threaded adapters (e.g., SM1-CC), enabling integration into 30 mm coaxial systems.
Key Features
- C-Mount optical connector
- Ultra-high sensitivity and ultra-low noise
- High transmission rate
| Spectral range | 380-650 nm |
| Pixel size | 2.4 μm × 2.4 μm |
| Effective pixels | 20 MP |
| Sensor size | 1'' |
| Shutter Type | Rolling shutter |
| color | Colorful |
| Bit Depth | 8 bit/12 bit |
| Data Transfer Interface | USB3.0 |
| Exposure time | 0.1 ms~15 s |
| Optical Interface | C-Mount |
| Sensitivity | 462 mv with 1/30 s a |
| Dark current | 0.21 mv with 1/30 s |
| Power Supply Type | USB3.0 interface power supply |
| Operating Temperature | -10~50 ℃ |
| Storage Temperature | -20~60 ℃ |
| Humidity | 30%-80%, no condensation |
| Size | 68 mm×68 mm×46.6 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

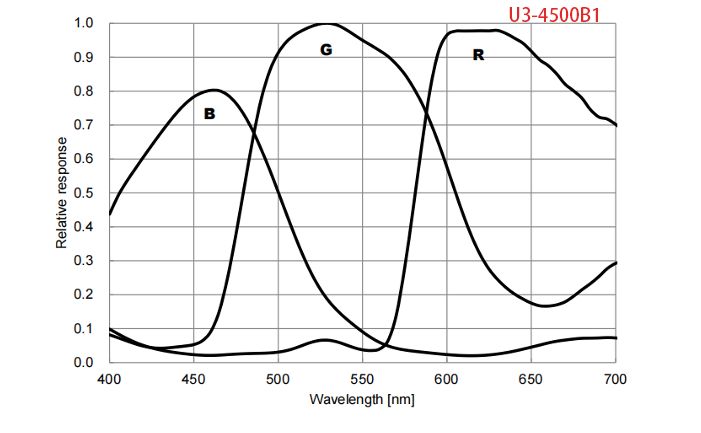

Spectral Response 1 — Graph

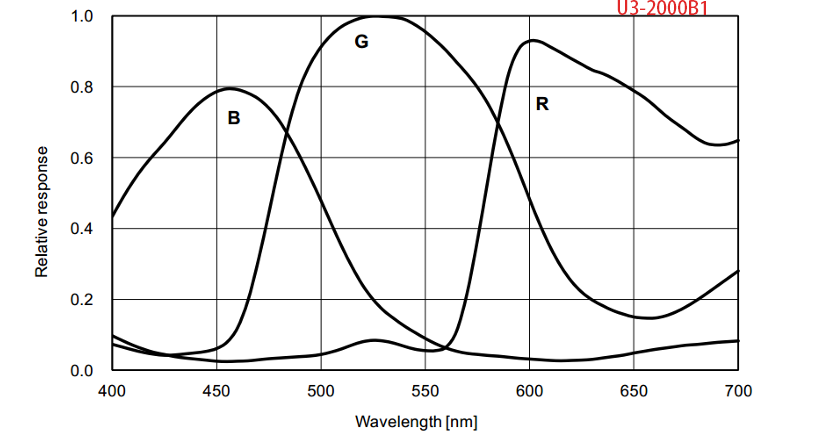

Spectral Response 2 — Graph

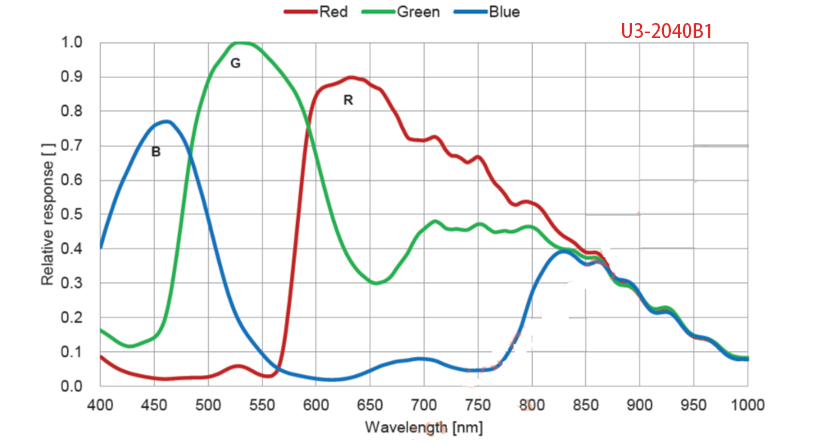

Spectral Response 3 — Graph

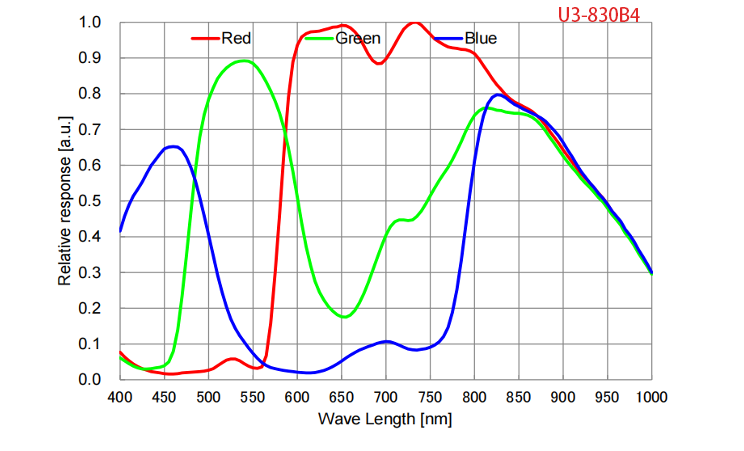

Spectral Response 4 — Graph

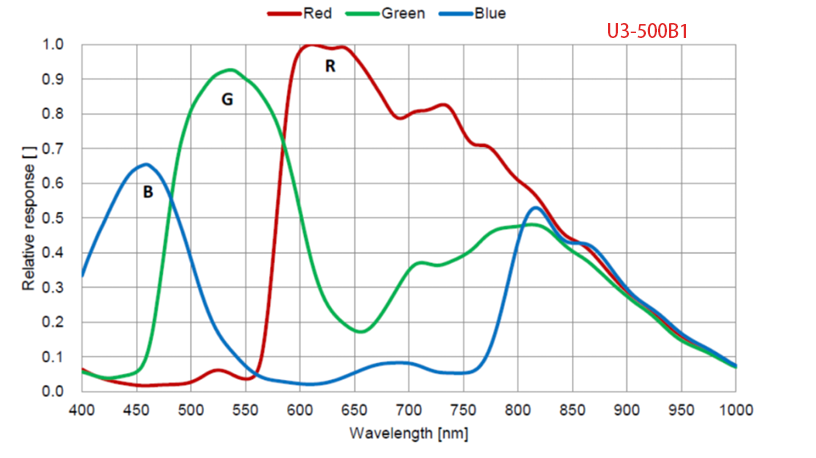

Spectral Response 5 — Graph

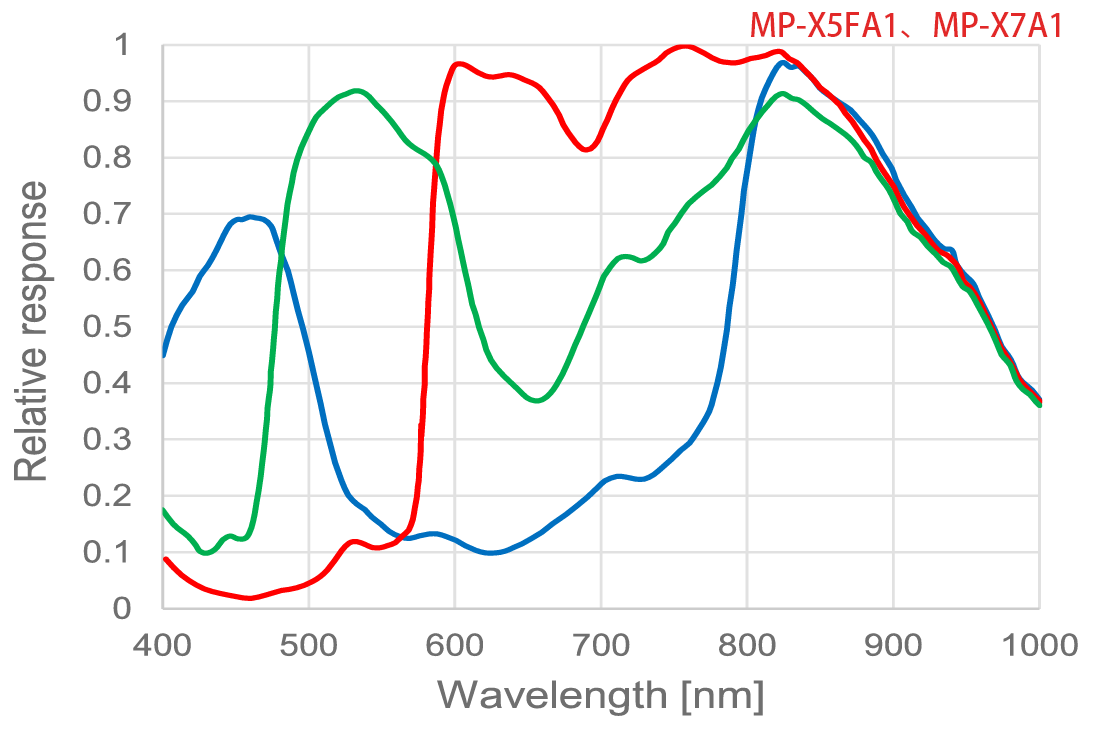

Spectral Response 6 — Graph
Spectral Response 7 — Graph
Product Family: Microscopy Uncooled Cameras (14 variants)
| Product | SKU | Spectral range | Pixel size | Effective pixels | |
|---|---|---|---|---|---|
| USB Cameras U3-500B1 |
U3-500B1
| — | — | — | View |
| USB Cameras U3-830B4 |
U3-830B4
| — | — | — | View |
| USB Cameras U3-4500B1 |
U3-4500B1
| — | — | — | View |
| USB Cameras U3-2040B1 |
U3-2040B1
| — | — | — | View |
| USB Cameras U3-2000B1 |
U3-2000B1
| — | — | — | View |
| Multi-Interface Cameras MP-X7A1 |
MP-X7A1
| — | — | — | View |
| Multi-Interface Cameras MP-X5FA1 |
MP-X5FA1
| — | — | — | View |
| Microscopy Uncooled Cameras MP-X5FA1 |
MP-X5FA1
| 380-650 nm | 2.0 μm × 2.0 μm | 8 MP | View |
| Microscopy Uncooled Cameras MP-X7A1 |
MP-X7A1
| 380-650 nm | 2.0 μm × 2.0 μm | 8 MP | View |
| Microscopy Uncooled Cameras U3-4500B1 |
U3-4500B1
| 380-650 nm | 2.315 μm × 2.315 μm | 45 MP | View |
| Microscopy Uncooled Cameras U3-2040B1 |
U3-2040B1
| 380-650 nm | 2.74 μm × 2.74 μm | 20.4 MP | View |
| Microscopy Uncooled Cameras U3-2000B1 Current |
U3-2000B1
| 380-650 nm | 2.4 μm × 2.4 μm | 20 MP | |
| Microscopy Uncooled Cameras U3-830B4 |
U3-830B4
| 380-650 nm | 2.9 μm × 2.9 μm | 8.3 MP | View |
| Microscopy Uncooled Cameras U3-500B1 |
U3-500B1
| 380-650 nm | 3.45 μm × 3.45 μm | 5 MP | View |
