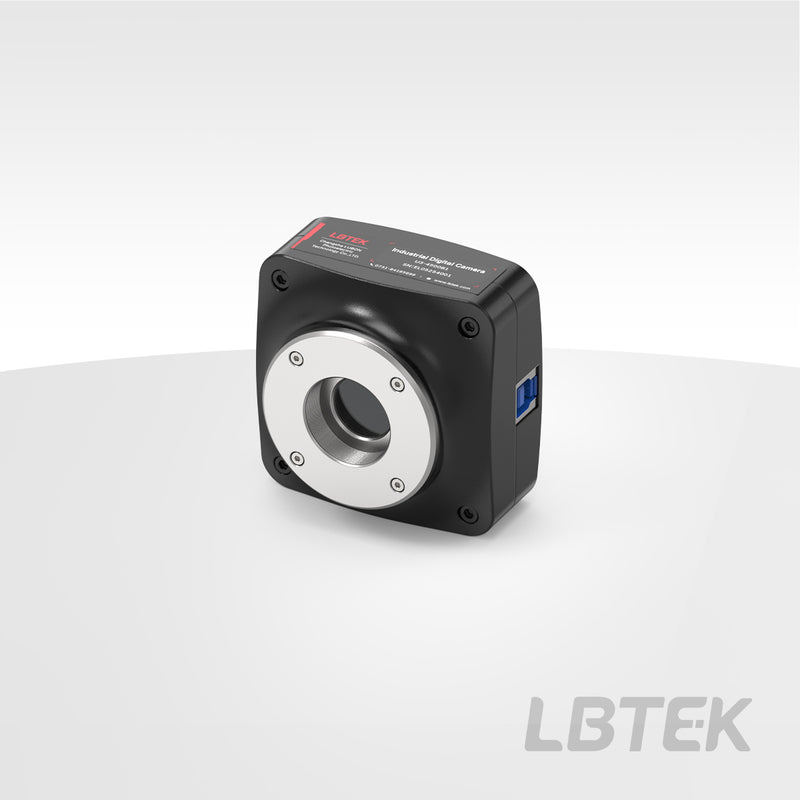

USB Cameras U3-4500B1
U3-4500B1$588.34
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
LBETK's U3 series cameras offer pixel resolutions ranging from 5 million to 45 million, featuring a USB3.0 data interface. Utilizing USB3.0 data transfer technology, they ensure fast and stable transmission of video/images. The input port adopts a C-Mount optical connector, which can be connected to SM1 coaxial mounting plates or SM1 lens tubes via SM1 threaded adapters (e.g., SM1-CC), enabling integration into 30 mm coaxial systems. The camera's mechanical housing includes a 1/4-20 threaded hole at the bottom for convenient mounting in free space .
Key Features
- C-Mount optical connector
- Ultra-high sensitivity and ultra-low noise
- High transmission rate
Application
Schematic Diagram of Camera
No specifications available for this product.
No documents available for this product.
No CAD drawings available for this product.
