Multi-Interface Cameras MP-X7A1
MP-X7A1$549.11
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

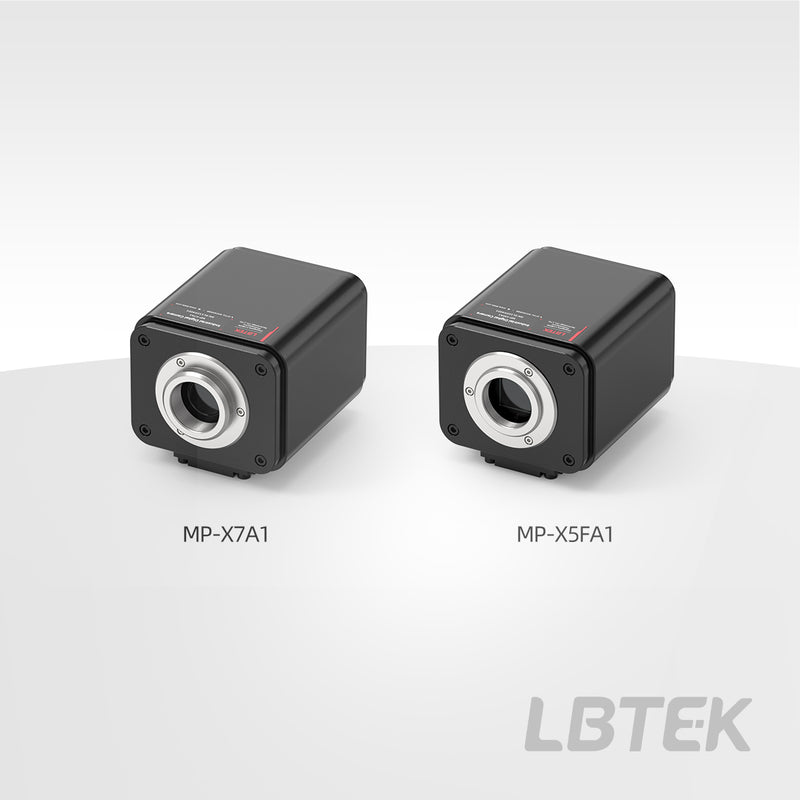

LBTEK offers two models of multi-interface cameras for selection: MP-X5FA1 and MP-X7A1. The MP-X5FA1 supports multiple output methods including HDMI, WiFi, and USB, and features an embedded autofocus system capable of automatically focusing on specific areas of a scene. The MP-X7A1 camera supports various output methods such as HDMI, WiFi, USB, and NETWORK, adding a LAN port output compared to the MP-X5FA1, and also enables focus control via software. Both cameras feature a C-Mount optical input connector and are equipped with 2×M4 threaded holes at the bottom for convenient mounting in free space.
Key Features
- 4K HDMI/WiFi/USB multi-interface synchronous output
- Supports SD card/USB flash drive for saving captured videos or images
Application
Camera Mounting Method
| Spectral range | 380-650 nm |
| Pixel size | 2.0 μm × 2.0 μm |
| Effective pixels | 8 MP |
| Sensor Format | 1/1.8'' |
| Frame Rate & Resolution | 72@3840*2160<sup>a</sup> |
| Shutter Type | Rolling shutter |
| color | Colorful |
| Bit Depth | 12 bit |
| Data Transfer Interface | USB3.0/HDMI/LAN |
| Exposure Time | 0.019 ms~1000 ms |
| Optical Interface | C-Mount |
| Sensitivity | 3541 mv with 1/30 s <sup>b</sup> |
| Dark Current | 0.15 mv with 1/30 s |
| Power Method | DC 12V/1A |
| Operating Temperature | -10~50 ℃ |
| Operating Temperature | -20~60 ℃ |
| Operating Humidity | 30%-80%, no condensation |
| Size | 65 mm×78 mm×98.3 mm |
No documents available for this product.
No CAD drawings available for this product.
