Mounting Base — Model PB-1
✔ In Stock — Ships Today

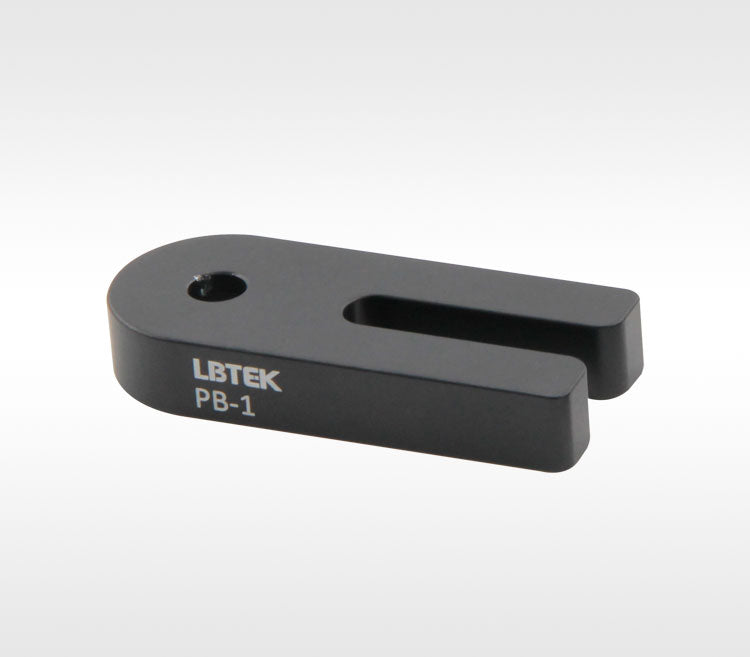

The mounting base from LBTEK features a universal design compatible with both imperial and metric breadboards, posts, and post holders. It features countersunk mounting holes that accept M6 socket head cap screws for secure attachment to post holders. By incorporating spacers with the M6 screws, the base can be firmly fixed at any position along the slots. The unilateral linear slot enables coarse positional adjustment through translation mounting along the slot axis or rotational adjustment about the screw axis, providing flexible installation alignment.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Compatible with Imperial/Metric Systems;
- Two M6 Socket Head Cap Screws are Included;
Application
Installation of the post holder onto the breadboard.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Mounting Base (6 variants)
