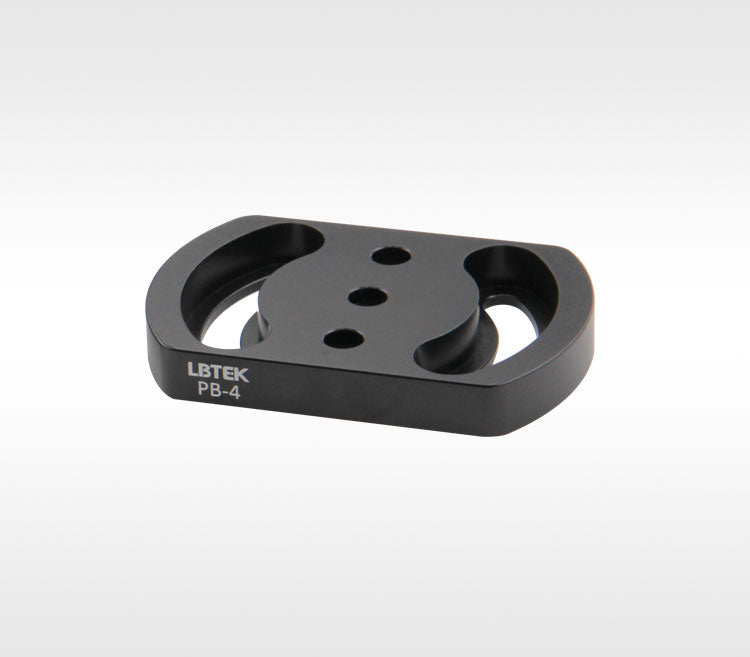

Mounting Base — Model PB-4
✔ In Stock — Ships Today
The mounting plates from LBTEK feature universal design, compatible with both imperial and metric breadboards, posts, and post holders. Optical components can rotate about the mounting center along arc-shaped slots (maximum rotation angle of ±40°). Each base contains 3 countersunk holes for user installation, with a spacing of 12.5 mm between the countersunk holes.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Compatible with Imperial/Metric Systems;
- Five M6 Socket Head Cap Screws are Included;
Application
Installation of the post holder is onto the breadboard.
| Material | 6061-T6 Aluminum Alloy |
| Attribute 296 | M6 |
| Attribute 297 | 2 |
| Rotation angle | +/-40° |
| Mounting hole specifications | Arc-shaped waist groove |
| Surface Treatment | Black anodized |
| Attribute 618 | 12.5mm |
