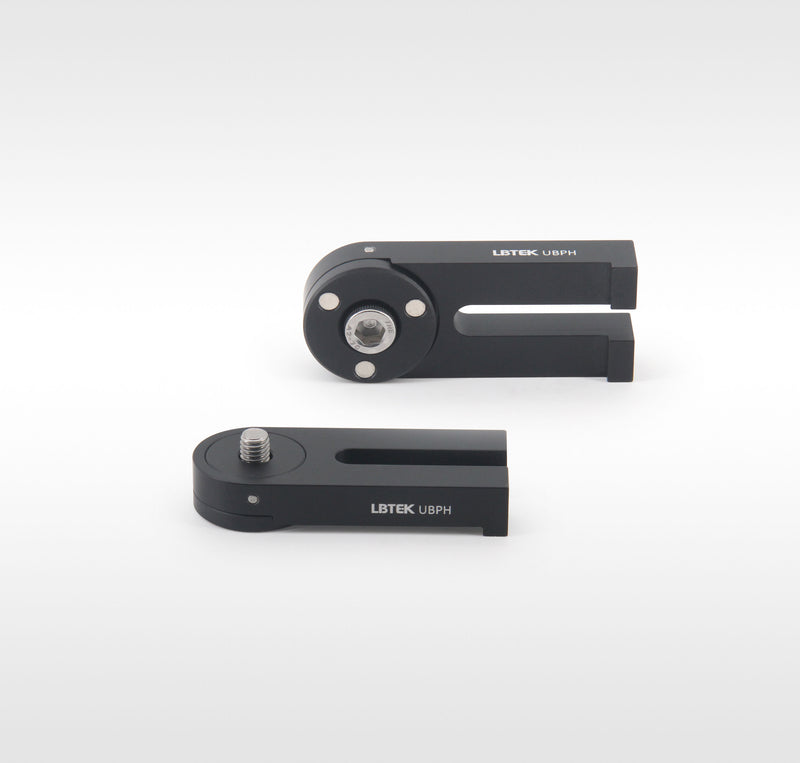

Mounting Base — Model UBPH
✔ In Stock — Ships Today
The universal rotation base from LBTEK enables secure mounting of both Ø12.7 mm post holders and Ø25 mm posts without base using M6 socket head cap screws. The clamping fork at the bottom provides 360° rotation with integrated M6 mounting slots, offering maximum flexibility for component positioning on optical platforms. The post holder base incorporates three magnets that deliver holding force before final locking.
Key Features
- 360° rotation base for easy installation;
- The base's magnet provides holding force when fixed to the optical platform;
- Universal rotation base secures Ø12.7 mm post holder PH-××A and Ø25 mm post without base OP1-××B6/B with M6 cylindrical head cap screws;
- Compatible with imperial/metric systems;
- Optional 5 pieces per pack;
Application
UBPH is used in conjunction with standard post holder.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Mounting Base (6 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Mounting Base PB-5 |
PB-5
| — | — | — | View |
| Mounting Base UBPH Current |
UBPH
| — | — | — | |
| Mounting Base PB-4 |
PB-4
| — | — | — | View |
| Mounting Base PB-3 |
PB-3
| — | — | — | View |
| Mounting Base PB-2 |
PB-2
| — | — | — | View |
| Mounting Base PB-1 |
PB-1
| — | — | — | View |
