Mounting Base — Model PB-3
✔ In Stock — Ships Today

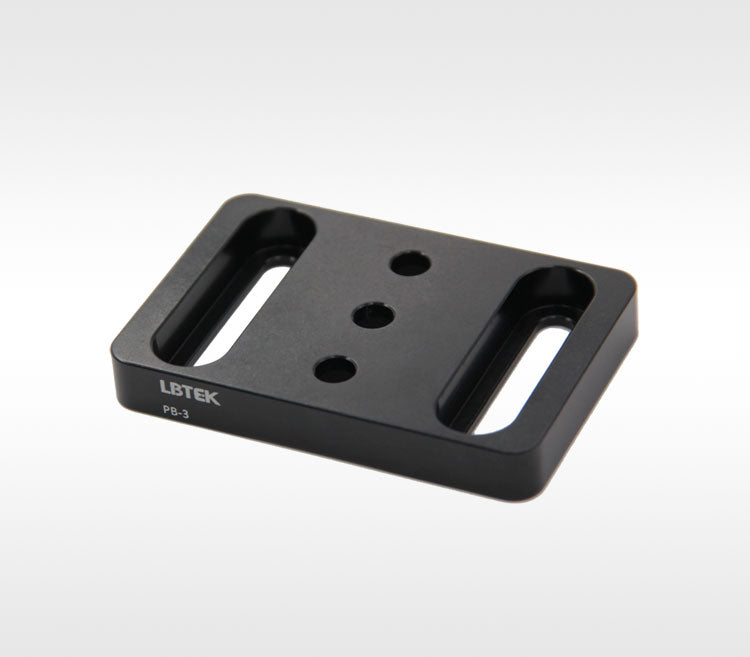

The mounting base from LBTEK features a universal design compatible with both imperial and metric breadboards, posts, and post holders. These bases are secured using M6 socket head cap screws through countersunk mounting holes, and include dual 32 mm long countersunk slots spaced 50 mm apart to match standard metric breadboard hole patterns. The slots allow for coarse positional adjustment when using a single screw. Additionally, three central countersunk holes spaced 12.5 mm apart provide flexible mounting options.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Compatible with Imperial/Metric Systems;
- Five M6 Socket Head Cap Screws are Included;
Application
Installation of the post holder onto the breadboard.
| Material | 6061-T6 Aluminum Alloy |
| Attribute 296 | M6 |
| Size | 50 mm x 75 mm x 10 mm |
| Surface Treatment | Black anodized |
| Mounting hole specifications | Straight waist groove |
| Attribute 297 | 2 |
| Groove length | 32 mm |
| Attribute 298 | 50 mm |
| Attribute 618 | 12.5 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Mounting Base (6 variants)
