Mounting Base — Model PB-5
✔ In Stock — Ships Today

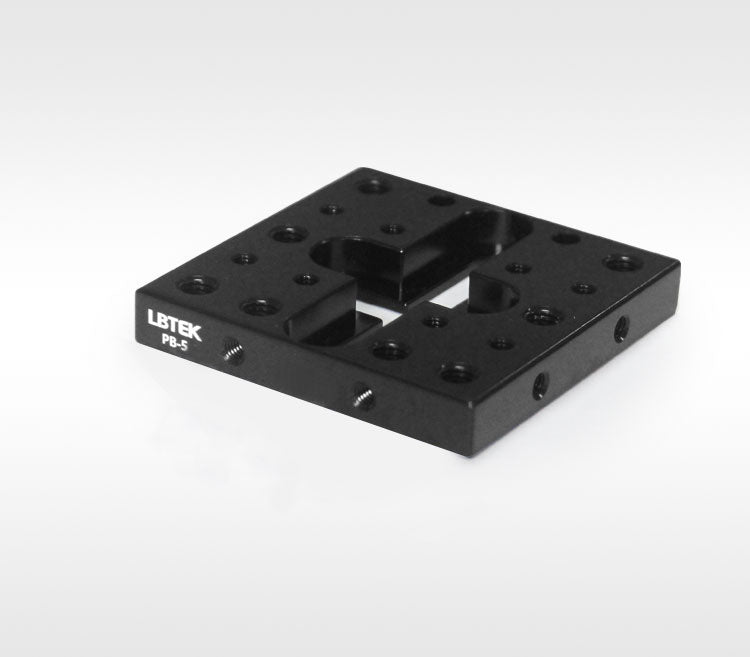

The mounting plate from LBTEK features dimensions of 65 mm × 65 mm × 10 mm, with two 90° countersunk slots centrally positioned to enable coarse translation on optical platforms. An array of M6 and M4 tapped holes allows multi-directional component mounting. The base includes M4 countersunk holes on the reverse side and M4 screws on the lateral faces, facilitating the assembly of two PB-5 units into an RAB1 configuration.
Key Features
- Compatible with metric or imperial breadboards, posts, and holders;
- 32mm countersunk slot with M6 head cap screw in the center;
- Tapped holes: M6× 8, M4× 8;
- Two PB-5 can be combined into a right-angle mounting plate RAB1 using 2 M4 head cap screws;
- Two M6 socket head cap screws and matching spacers are included;
Application
Installation of the mounting plate is onto the optical platform.
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Overall dimensions | 65 mm×65 mm×10 mm |
| Compatibility | M4，M6 |
| Installation Method | 12.5 mm/25 mm |
| Mounting hole specifications | Straight waist groove |
| Mounting Hardware | M6×8 mm Hex Socket Head Cap Screw / 2 pcs (with washers) |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Mounting Base (6 variants)
