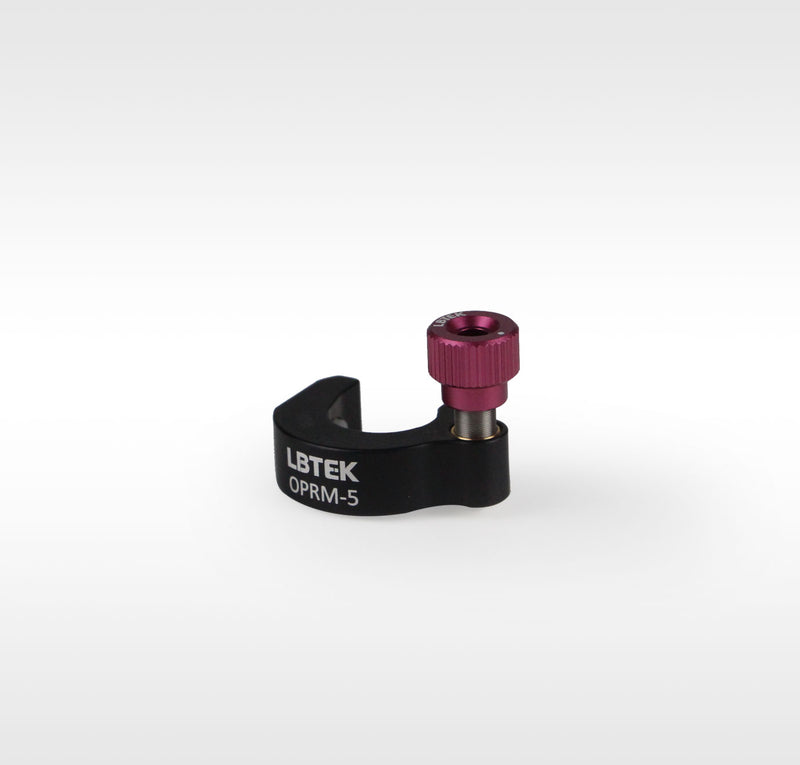

Ø12.7 mm Post Collar — Model OPRM-5
✔ In Stock — Ships Today
The OPRM-5 adjustable locator from LBTEK provides precise axial height positioning of posts. It incorporates a high-precision M5×0.25 hex adjuster, finely located via a 2 mm hex key. For extended or reduced ranges, this adjuster can be replaced with any M5×0.25 hex adjuster. The right diagram shows the adjustable locator mounted on the outside diameter of a Ø12.7 mm post for axial movement, secured by a side-mounted M4 rubber-tipped screw.
Key Features
- Adjustment accuracy: 0.25mm/rev
- Lockable slide-on collar design for Ø12.7 mm posts connection;
- Replaceable M5×0.25 hex adjuster
Application
The OPRM-5 adjustable locator is used in conjunction with the OPRM-4 contact block.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
