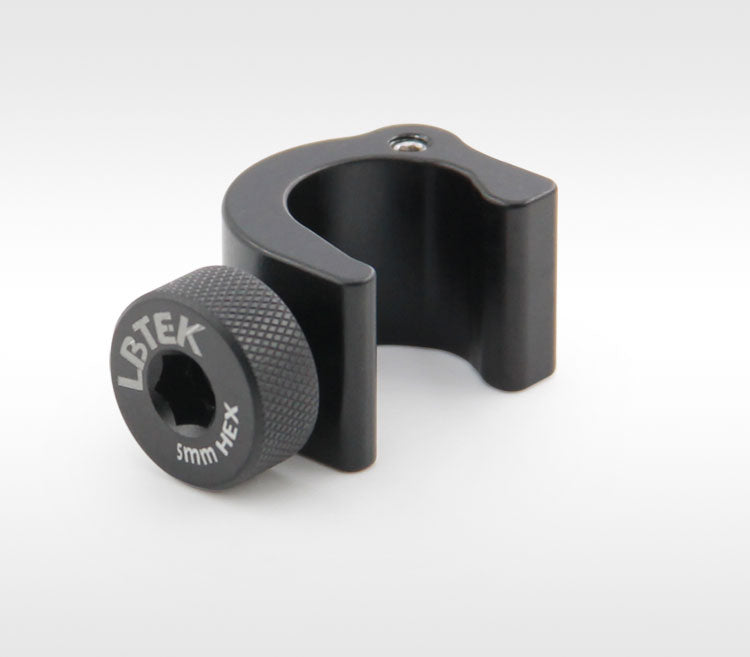

Ø12.7 mm Post Collar — Model OPRMB-1
✔ In Stock — Ships Today
The sliding post collar from LBTEK is secured to a Ø12.7 mm post using a socket knurled thumb screw. After placing the post into the post holder and coarsely adjusting it to the desired height, slide the post collar onto the post until its bottom contacts the top of the post holder. Tighten the knurled thumb screw to secure the post. For 10 mm fine adjustment of the post position within the post holder, use a 2 mm hex key to adjust the support height of the M3 screw on the upper surface.
Key Features
- Fine post height adjustment, maximum adjustable height: 10 mm;
- Clamping diameter: Ø12.7 mm;
- 5 pieces per package;
Application
Vertical sliding of the clamping post within the post tube;
No specifications available for this product.
CAD Drawing
Download
