Princeton Instruments

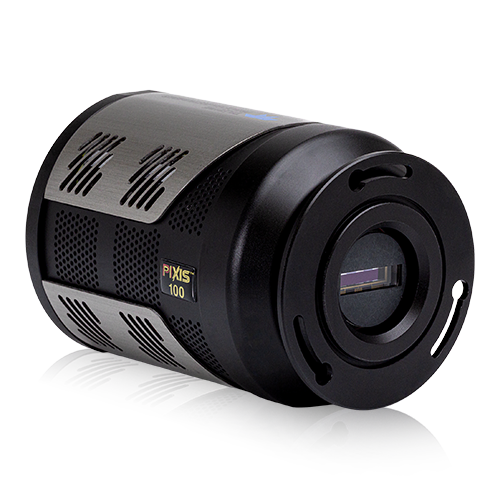

PIXIS TE-Cooled CCD Camera
PI-PIXIS-2048BContact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The PIXIS is a thermoelectrically cooled CCD camera series offering high performance in a compact, cryogen-free package. Cooling to -75°C eliminates the need for liquid nitrogen while maintaining excellent sensitivity. Available in multiple formats from 100×1340 to 2048×2048 with back-illuminated and eXcelon-enhanced sensor options. The workhorse choice for spectroscopy and imaging laboratories.
Key Features
- Thermoelectric cooling to -75°C (no cryogens)
- Back-illuminated CCD options
- eXcelon enhanced sensors for improved QE
- Multiple formats: 100, 256, 400, 1024, 2048 rows
- Low read noise <4 e- rms
- USB 2.0 interface
- Compact, maintenance-free design
Applications
- Routine spectroscopy
- Raman spectroscopy
- Fluorescence spectroscopy
- Imaging
- Process monitoring
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 200 nm |
| Wavelength Range Max | 1100 nm |
| Sensor Type | Back-Illuminated CCD (TE) |
| Pixel Size | 13.5 µm |
| Resolution | 2048x2048 px |
| Frame Rate | 3.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -75.0 °C |
| Spectral Range | 200-1100 nm |
| Quantum Efficiency | 95.0 % |
| Dark Current | 0.001 e⁻/px/s |
| Weight | 3.5 kg |
| Wavelength Range | 200.0 – 1100.0 nm |
| Dark Current | 0.001 e/px/h |
| Quantum Efficiency | 95.0% |
| Weight | 3.5 kg |
| Sensor Type | Back-Illuminated CCD (TE) |
| Pixel Size | 13.5 μm |
| Resolution | 2048x2048 |
| Frame Rate | 3.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -75.0 °C |
| Spectral Range | 200-1100 |
No documents available for this product.
No CAD drawings available for this product.
Product Family: CCD Cameras (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| PIXIS TE-Cooled CCD Camera Current |
PI-PIXIS-2048B
| — | — | — | |
| PyLoN LN2-Cooled CCD Camera |
PI-PYLON-400BR
| — | — | — | Contact |
| BLAZE Spectroscopy CCD Camera |
PI-BLAZE-400
| — | — | — | Contact |
