Princeton Instruments

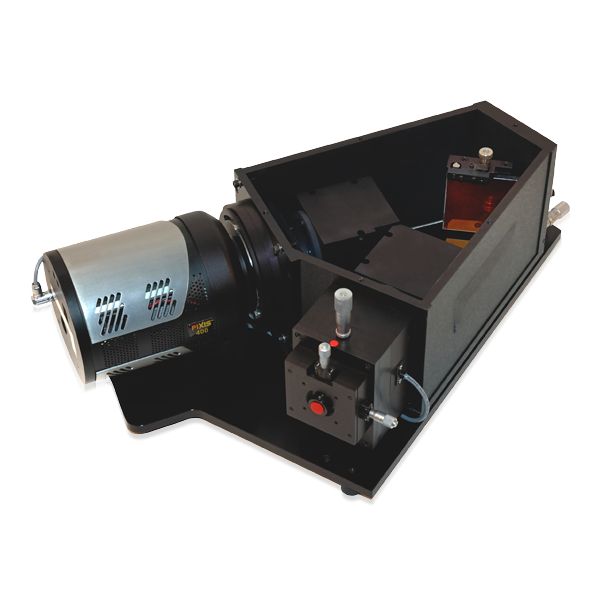

Acton LS-785 NIR Raman Spectrometer
PI-ACTON-LS785Contact for pricing
In Stock
Key Specifications
Contact Sales
Transmittance
99.0%
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Acton LS-785 is a high-throughput lens-based spectrometer purpose-built for near-infrared Raman spectroscopy. Its proprietary 5-element f/2 refractive design delivers >4× the throughput of standard f/4 mirror-based spectrographs. Using all AR-coated lenses from Acton Optics (no mirrors), it achieves >99% optical throughput. A custom gold-coated 1200 g/mm grating with micrometer-controlled tuning covers 750-1100 nm excitations, perfectly matched to fiber optic probes and deep-depletion CCD detectors.
Key Features
- Proprietary 5-element f/2 refractive design
- >4× throughput vs. standard f/4 spectrographs
- All-lens optical path (no mirrors)
- Custom gold-coated 1200 g/mm grating
- Micrometer-controlled grating rotation
- 750-1100 nm wavelength range
- 5 cm⁻¹ spectral resolution with 25 µm fiber
- Compatible with deep-depletion CCD cameras
Applications
- NIR Raman spectroscopy (785 nm excitation)
- Raman imaging
- Pharmaceutical analysis
- Fiber-coupled Raman measurements
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 750 nm |
| Wavelength Range Max | 1100 nm |
| Numerical Aperture (f/#) | 0.25 |
| Transmittance | 99.0 % |
| Focal Length | 85.0 mm |
| Weight | 11.2 kg |
| Length | 457.0 mm |
| Width | 305.0 mm |
| Height | 152.0 mm |
| Wavelength Range | 750.0 – 1100.0 nm |
| Numerical Aperture | 0.25 |
| Transmittance | 99.0% |
| Length | 457.0 mm |
| Width | 305.0 mm |
| Height | 152.0 mm |
| Focal Length | 85.0 mm |
| Weight | 11.2 kg |
