Princeton Instruments

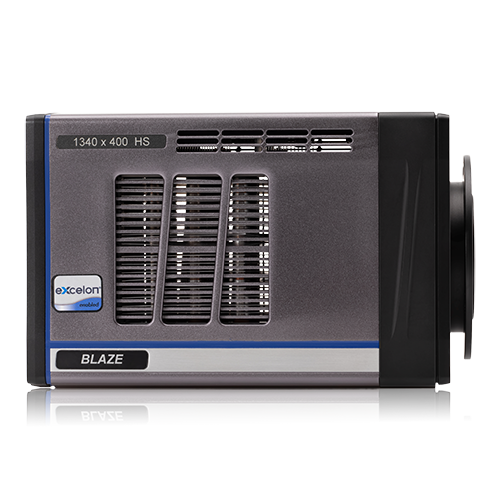

BLAZE Spectroscopy CCD Camera
PI-BLAZE-400Contact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The BLAZE is a high-performance spectroscopy CCD camera designed for demanding spectroscopic applications. Featuring back-illuminated CCD sensors with deep depletion options, it delivers exceptional quantum efficiency across UV to NIR wavelengths. The thermoelectric cooling system reaches -95°C for ultra-low dark current, while the high-speed readout electronics enable rapid spectral acquisition. Available in 400B (back-illuminated) and 400HR (high-resolution) models.
Key Features
- Back-illuminated CCD sensor options
- Deep-depletion for enhanced NIR response
- Thermoelectric cooling to -95°C
- Ultra-low read noise <3 e- rms
- High quantum efficiency >95% peak
- USB 3.0 interface for fast data transfer
- LightField software integration
Applications
- Raman spectroscopy
- Photoluminescence
- Absorption/transmission spectroscopy
- LIBS (Laser-Induced Breakdown Spectroscopy)
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 200 nm |
| Wavelength Range Max | 1100 nm |
| Sensor Type | Back-Illuminated CCD |
| Pixel Size | 20.0 µm |
| Resolution | 1340x400 px |
| Frame Rate | 4.3 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -95.0 °C |
| Spectral Range | 200-1100 nm |
| Quantum Efficiency | 95.0 % |
| Dark Current | 0.001 e⁻/px/s |
| Weight | 4.5 kg |
| Wavelength Range | 200.0 – 1100.0 nm |
| Dark Current | 0.001 e/px/h |
| Quantum Efficiency | 95.0% |
| Weight | 4.5 kg |
| Sensor Type | Back-Illuminated CCD |
| Pixel Size | 20.0 μm |
| Resolution | 1340x400 |
| Frame Rate | 4.3 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -95.0 °C |
| Spectral Range | 200-1100 |
