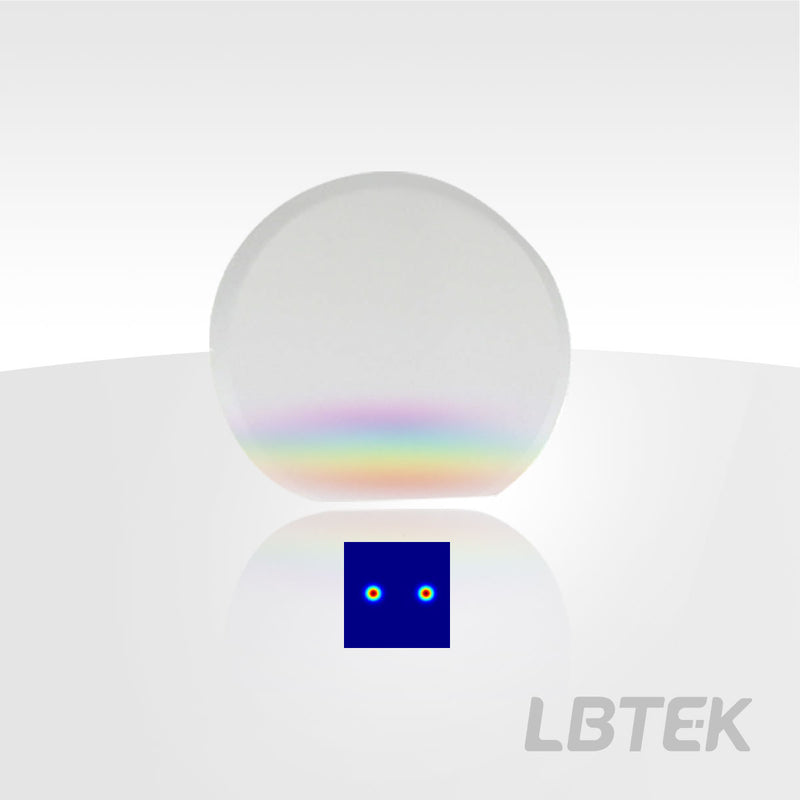

Polarization gratings PZGS-5-520
PZGS-5-520$1,176.67
In Stock
Key Specifications
Wavelength
520.0nm
Transmittance
0.5%
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
LBTek Polarization Gratings (PG) without protective glass are fabricated based on liquid crystal polymer birefringent materials, featuring a single-substrate bare die configuration with side arrow for correct incident direction indication.
The fast-axis orientation of liquid crystal molecules exhibits a periodic continuous gradient along the x-direction, maintaining half-wave retardation across the entire device plane. These polarization gratings possess polarization-dependent optical characteristics, achieving tunable energy-splitting ratios for beam splitting or enabling non-mechanical beam scanning.
Key Features
- Bare die configuration without protective glass
- Clear aperture: 20 mm, Phase period: 5 um
- Diffraction efficiency >96%
- Side arrow indicating correct incident direction
- Flat plate structure, polarization-dependent, high diffraction efficiency
| Transmittance | 0.5% |
| Element Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Element Dimensions | Ø25.4x1.6 mm |
| Clear Aperture | Ø20 mm |
| Operating Wavelength | 520 nm |
| Surface Quality | 40/20 |
| Transmittance | Ravg<0.5 %@400-700 nm |
| Diffraction Efficiency | >96 % |
| Transmittance Curve | >93 % |
| Wavefront Error | <λ/4@633 nm |
| Deflection Angle | 5.97 ° |
| Retardation | λ/2 |
| Parallelism (Edge) | <1 arcmin |
| Delay Accuracy & Uniformity | ± 5 nm |
| Operating Temperature | -20 deg C~80 deg C |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve 1

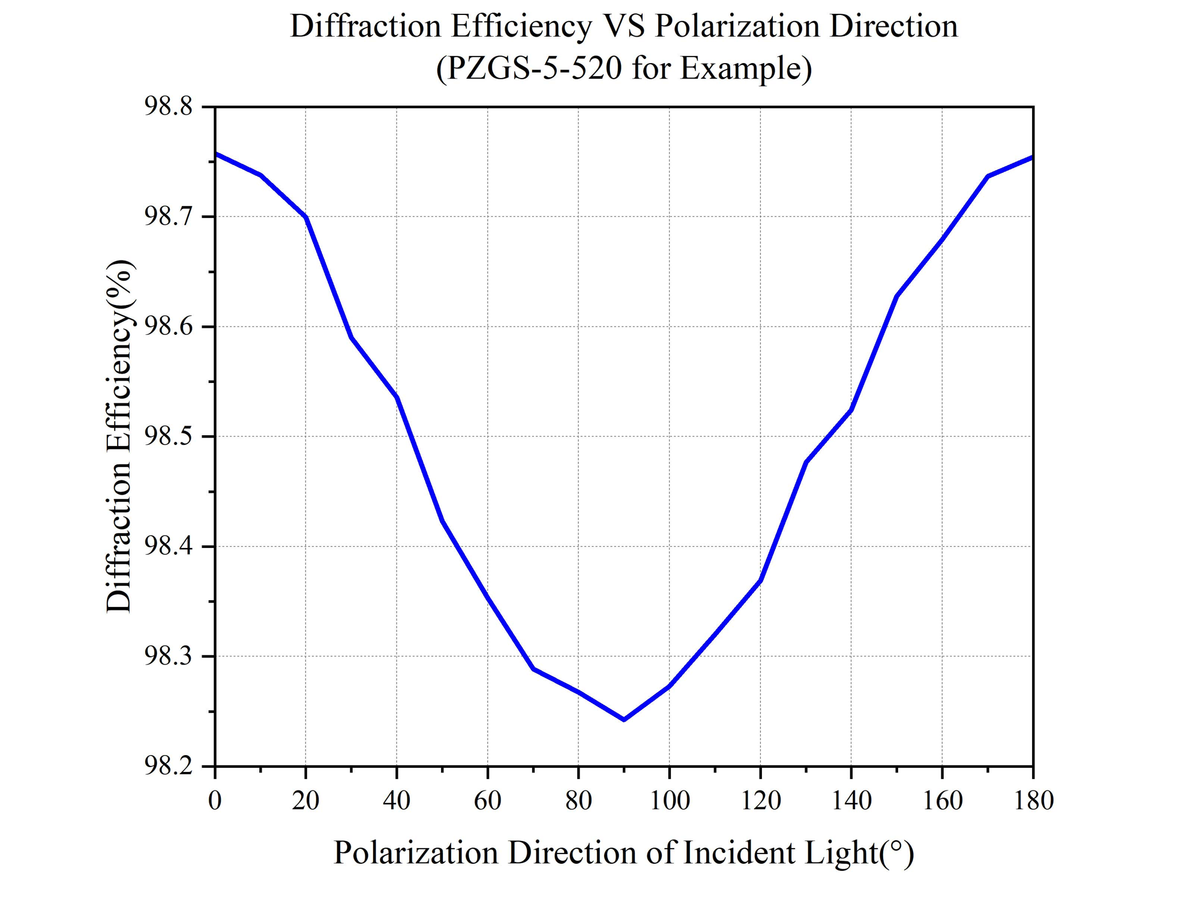

Curve 2

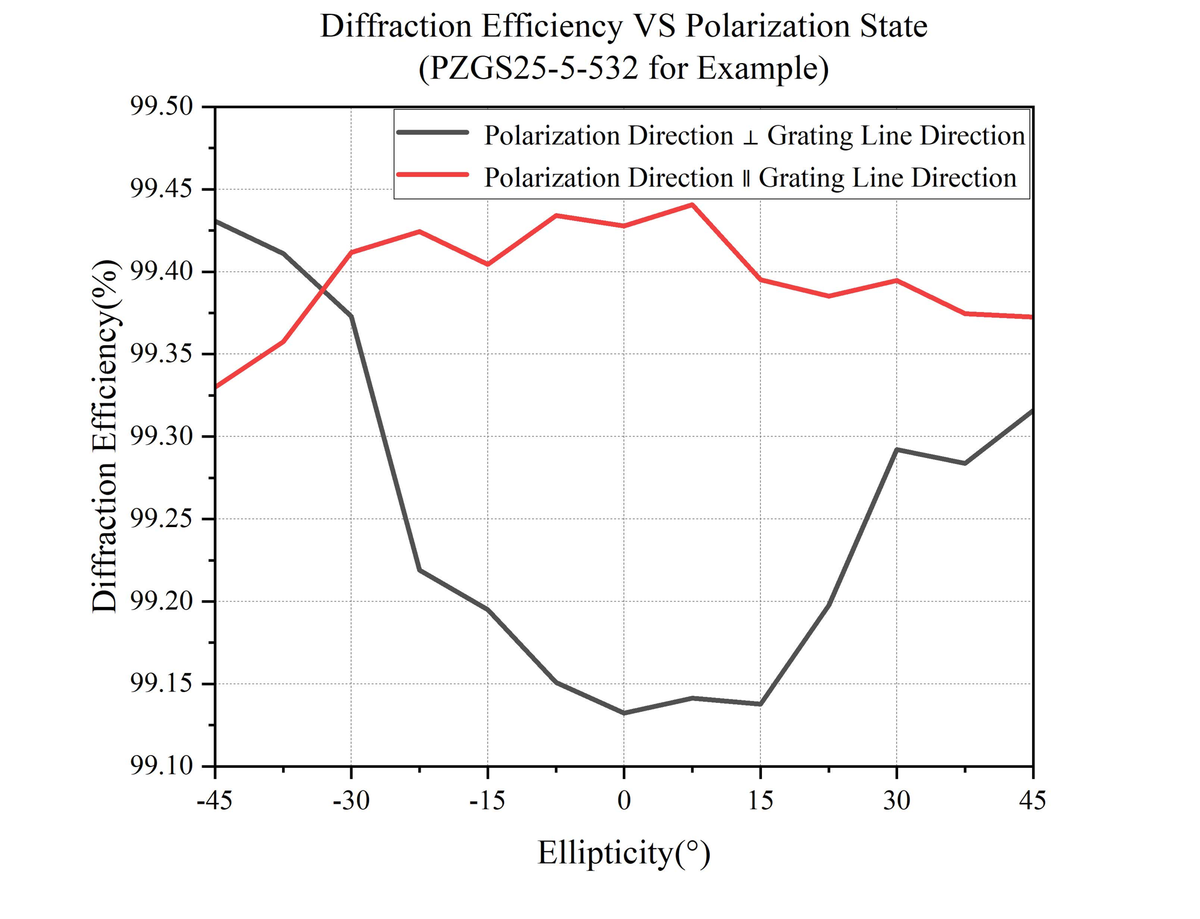

Curve 3

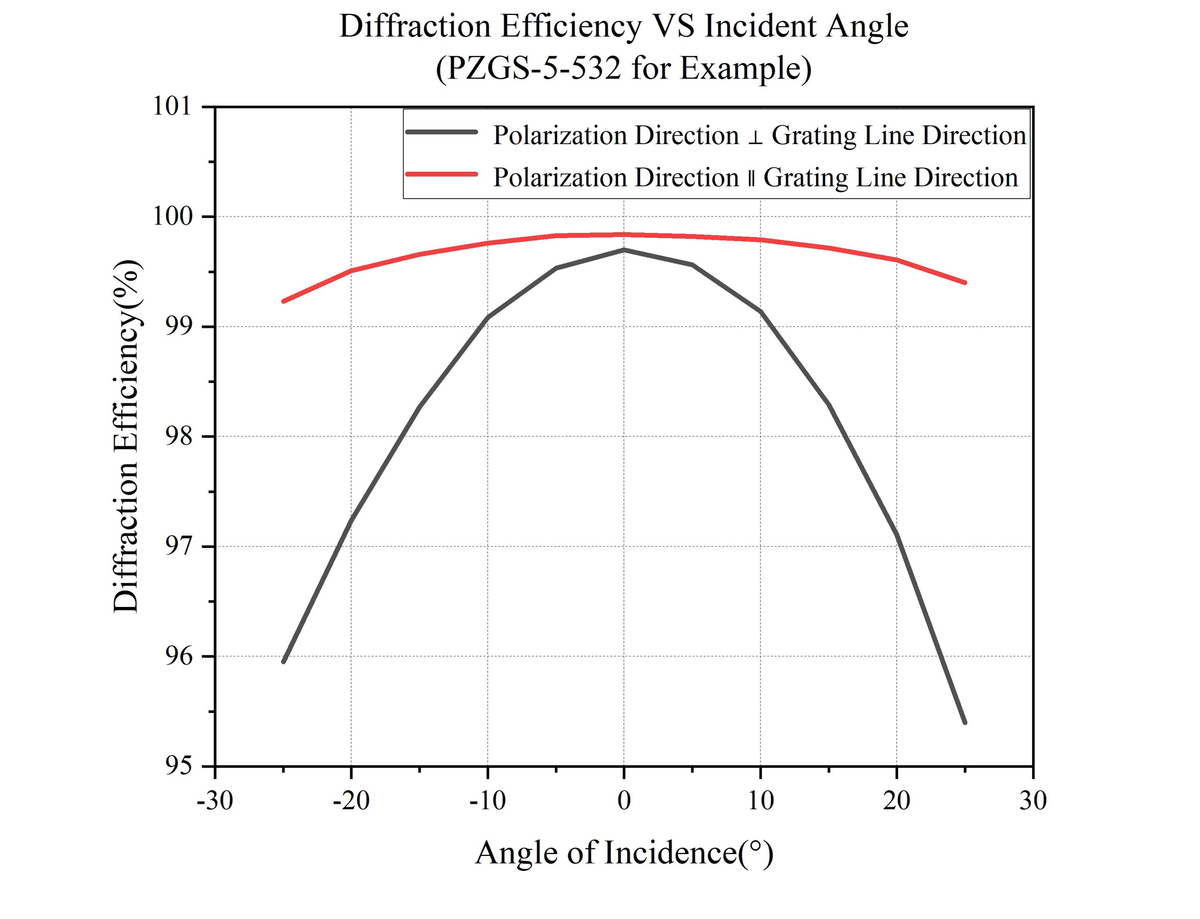

Curve 4

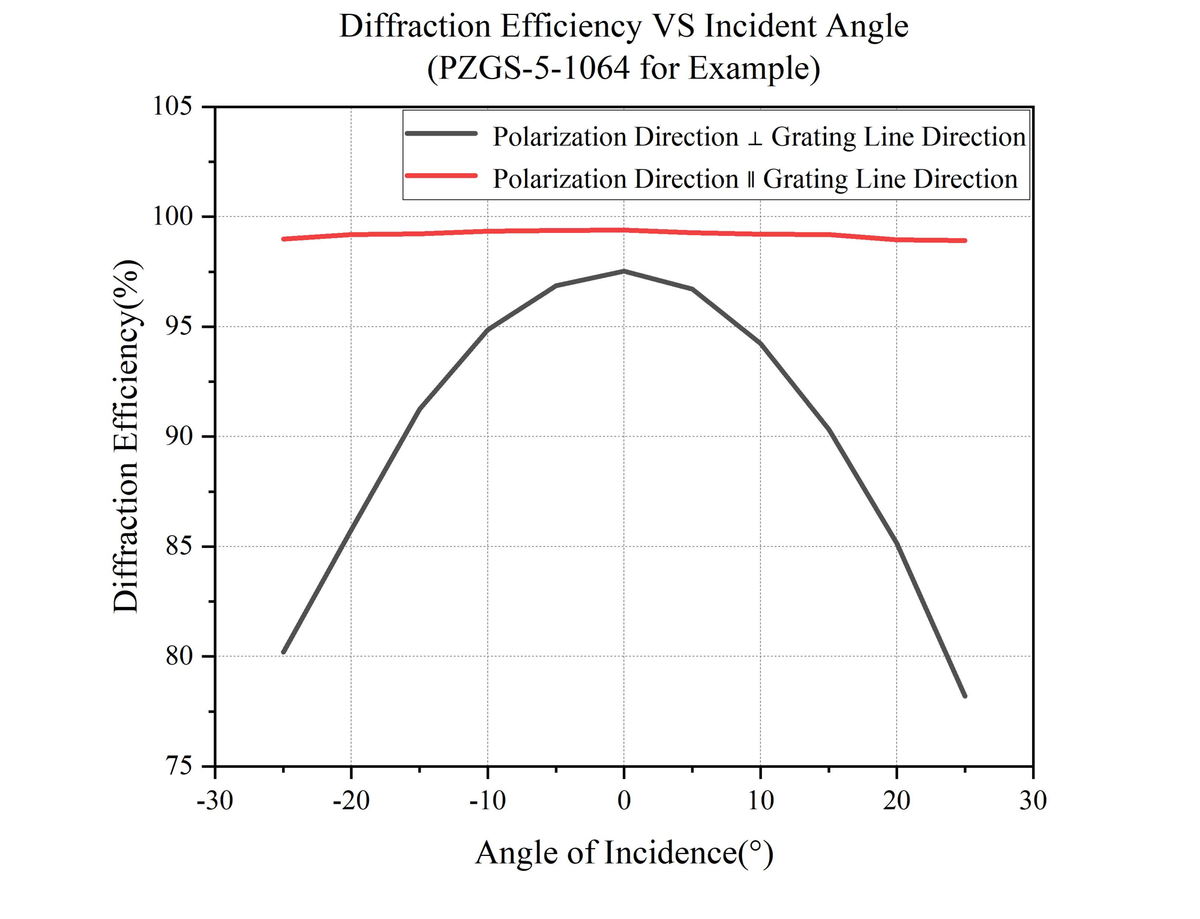

Curve 5
