Polarization gratings PZGS25-5-532
PZGS25-5-532$1,904.32
In Stock
Key Specifications
Wavelength
532.0nm
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Wavelength ↔ Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
Overview

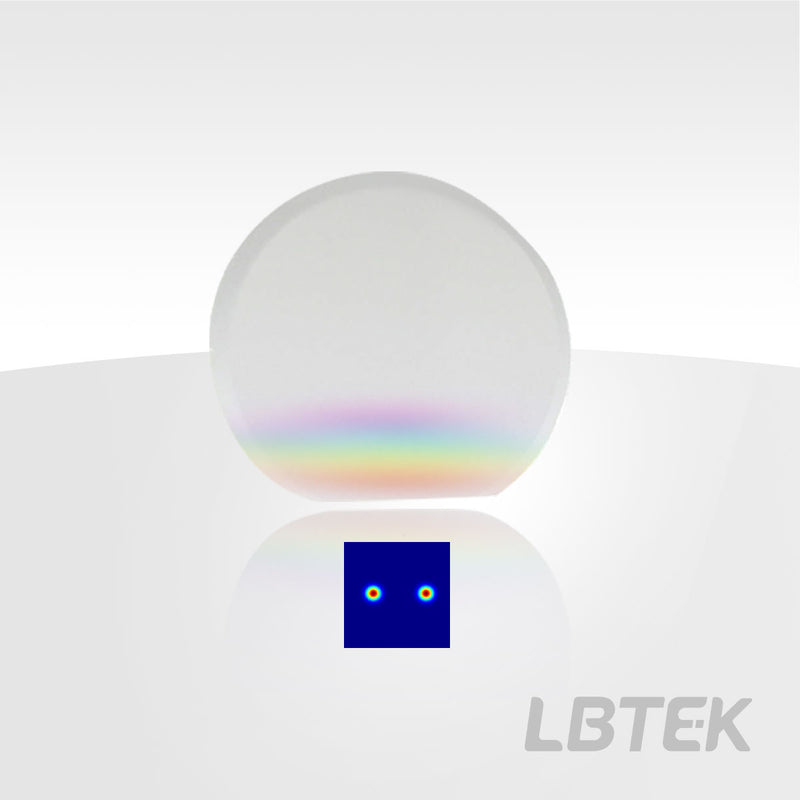

Polarization gratings are fabricated from liquid-crystal-polymer birefringent material on N-BK7 glass substrates in a sandwich structure. Model PZGS25-5-532 operates at 532 nm with a phase cycle p of 5 μm over a clear aperture of Ø20 mm, giving a typical deflection angle of 6.11 °.
Applications
- Polarization-selective beam splitting and combining
- Diffractive beam steering and deflection
- Polarimetry and polarization-state analysis
- Structured illumination and interference experiments
Construction & Performance
- Material Liquid Crystal Polymer/N-BK7 Window Plate
- Optical component size Ø25.4×3.2 mm, with a single-sided 2 mm cut edge
- Retardance λ/2; delay accuracy and uniformity ± 5 nm
- Diffraction efficiency ＞98 %; transmittance ＞96 %
- AR coating Ravg＜0.5 %@400-700 nm
- Surface quality (scratch/dig) 40/20; number of cores 200
- Angle of incidence (AOI) ±20 °
Storage & Handling
Operating temperature -20 ℃~80 ℃.
| Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Clear Aperture | Ø20 mm |
| AR Coating | Ravg＜0.5 %@400-700 nm |
| Retardance | λ/2 |
| Surface Quality (Scratch/Dig) | 40/20 |
| Operating Temperature | -20 ℃~80 ℃ |
| Number of cores | 200 |
| Diffraction efficiency | ＞98 % |
| Deflection angle (typical value) | 6.11 ° |
| Optical component size | Ø25.4×3.2 mm, with a single-sided 2 mm cut edge |
| Delay Accuracy & Uniformity | ± 5 nm |
| Operating wavelength λ | 532 nm |
| Phase cycle p | 5 μm |
| Transmittance | ＞96 % |
| Angle of Incidence (AOI) | ±20 ° |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

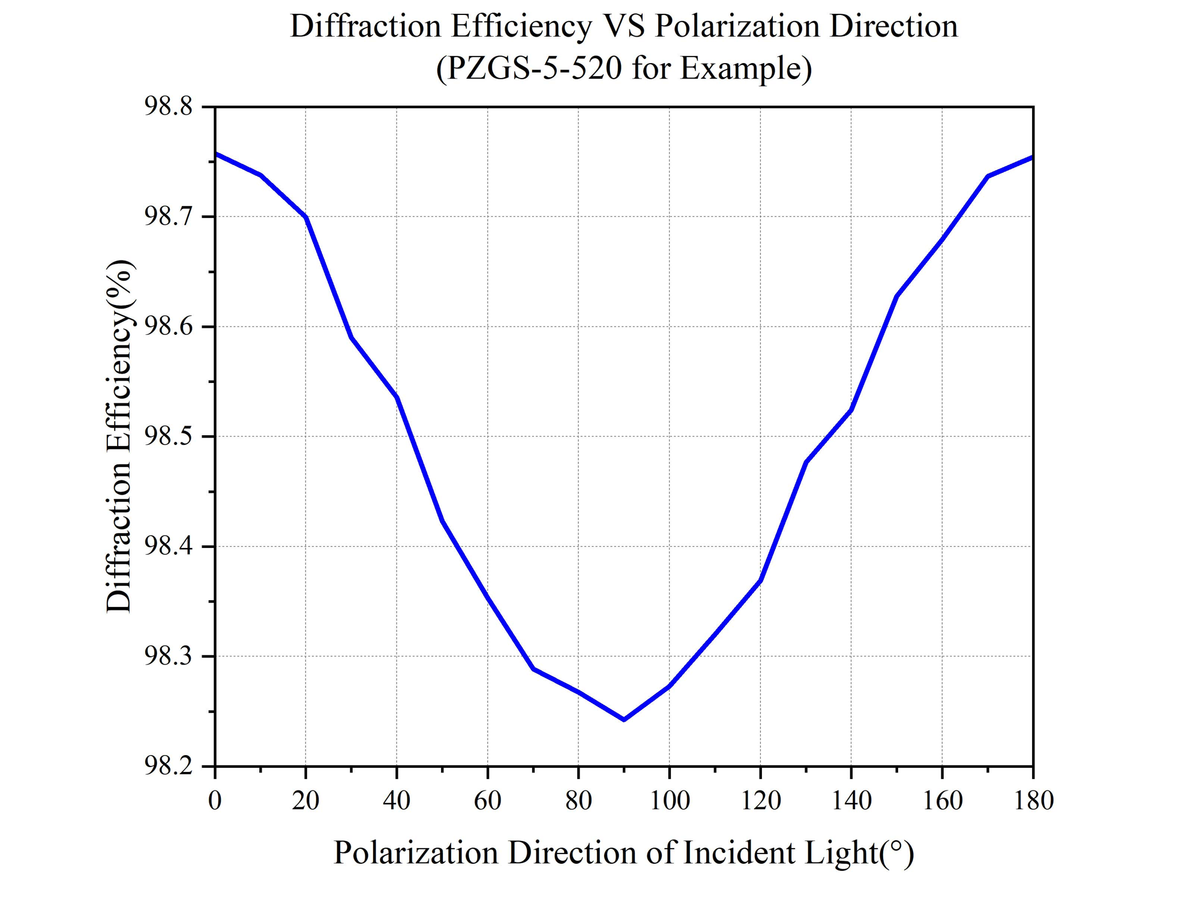

Curve 1

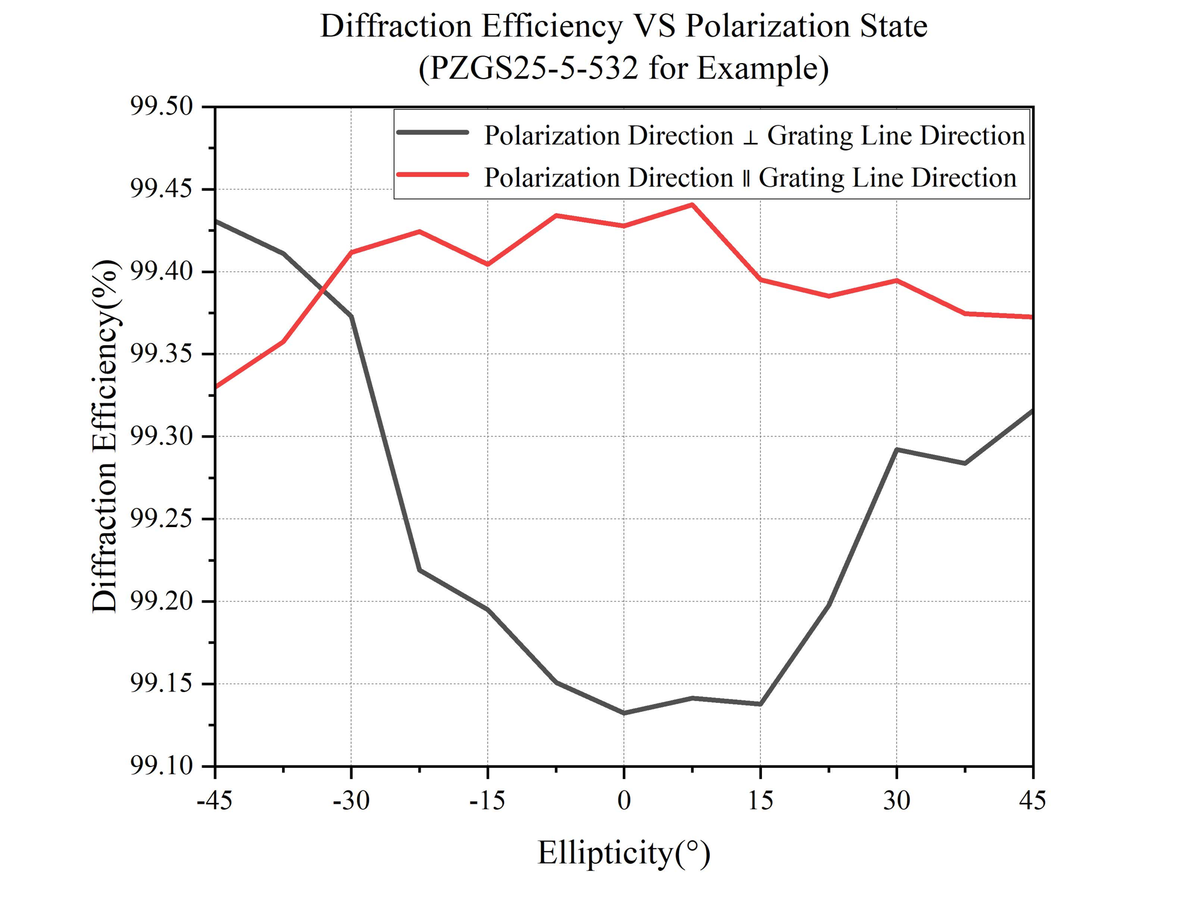

Curve 2

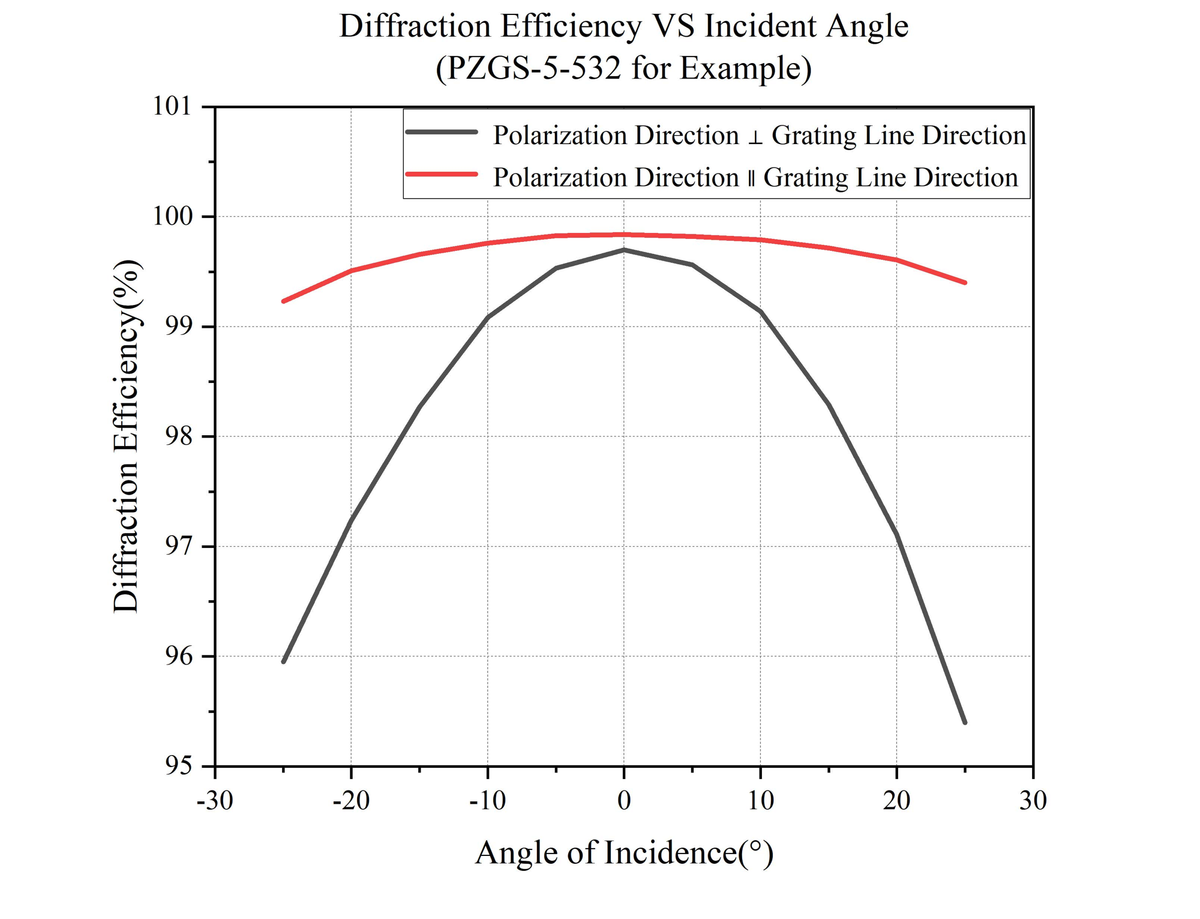

Curve 3
Curve 4

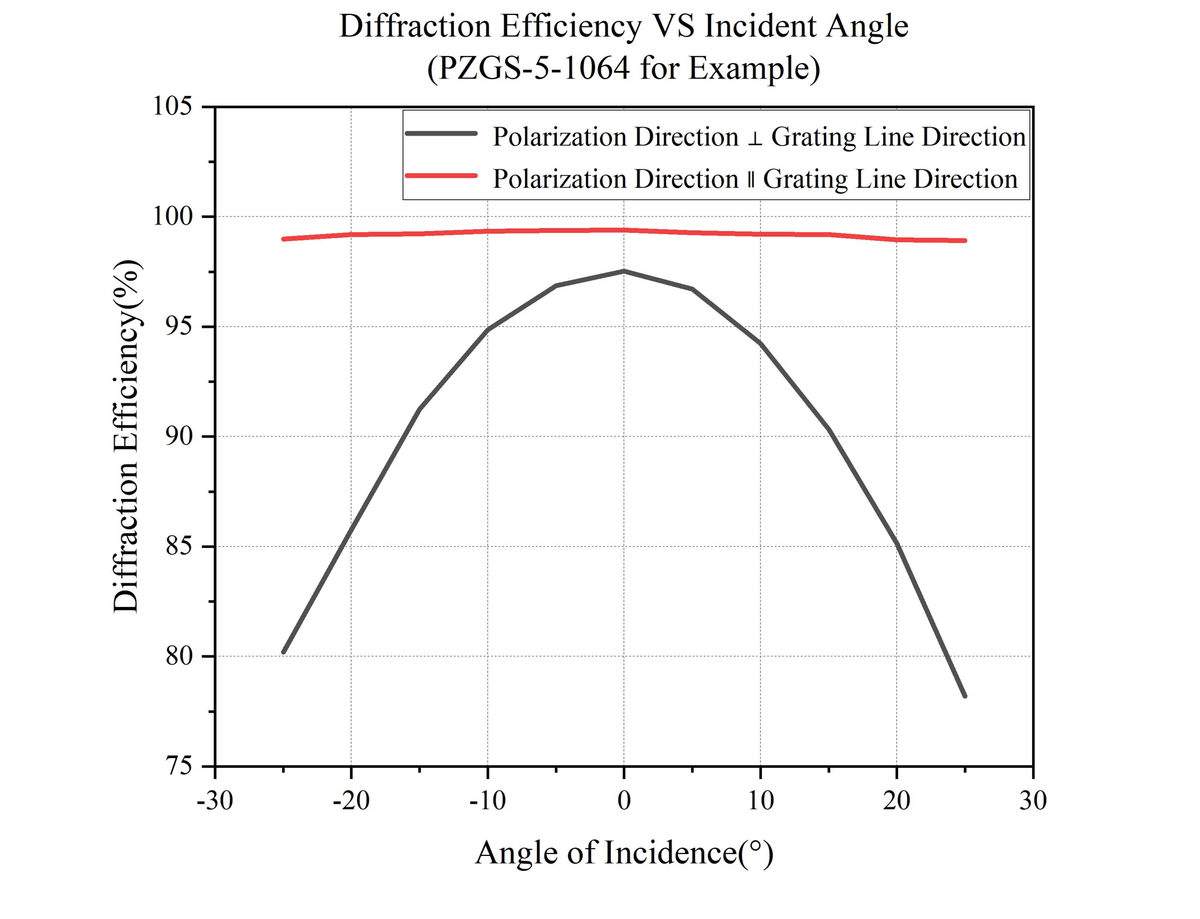

Curve 5
