Polarization gratings PZGS25-8-1550

PZGS25-8-1550
$1,894.99
In Stock
Key Specifications
Wavelength 1550.0nm
Request Quote

Design Tools

Grating Angle Calculator Compute diffraction angles and efficiency Wavelength ↔ Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Overview

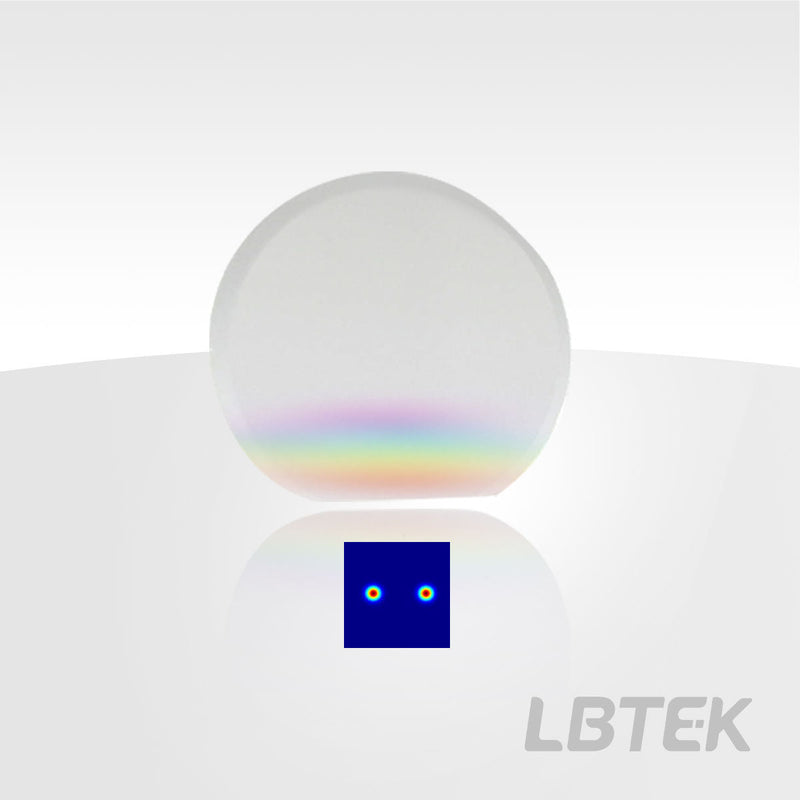

Polarization gratings are fabricated from liquid-crystal-polymer birefringent material on N-BK7 glass substrates in a sandwich structure. Model PZGS25-8-1550 operates at 1550 nm with a phase cycle p of 8 μm over a clear aperture of Ø20 mm, giving a typical deflection angle of 11.17 °.

Applications

  • Polarization-selective beam splitting and combining
  • Diffractive beam steering and deflection
  • Polarimetry and polarization-state analysis
  • Structured illumination and interference experiments

Construction & Performance

  • Material Liquid Crystal Polymer/N-BK7 Window Plate
  • Optical component size Ø25.4×3.2 mm, with a single-sided 2 mm cut edge
  • Retardance λ/2; delay accuracy and uniformity ± 5 nm
  • Diffraction efficiency ＞98 %; transmittance ＞98 %
  • AR coating Ravg＜0.5 %@1100-1700 nm
  • Surface quality (scratch/dig) 40/20; number of cores 125
  • Angle of incidence (AOI)

Storage & Handling

Operating temperature -20 ℃~80 ℃.

Material Liquid Crystal Polymer/N-BK7 Window Plate
Retardance λ/2
Optical component size Ø25.4×3.2 mm, with a single-sided 2 mm cut edge
Delay Accuracy & Uniformity ± 5 nm
Clear Aperture Ø20 mm
AR Coating Ravg＜0.5 %@1100-1700 nm
Operating Temperature -20 ℃~80 ℃
Phase cycle p 8 μm
Number of cores 125
Surface Quality (Scratch/Dig) 40/20
Deflection angle (typical value) 11.17 °
Operating wavelength λ 1550 nm
Diffraction efficiency ＞98 %
Transmittance ＞98 %
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

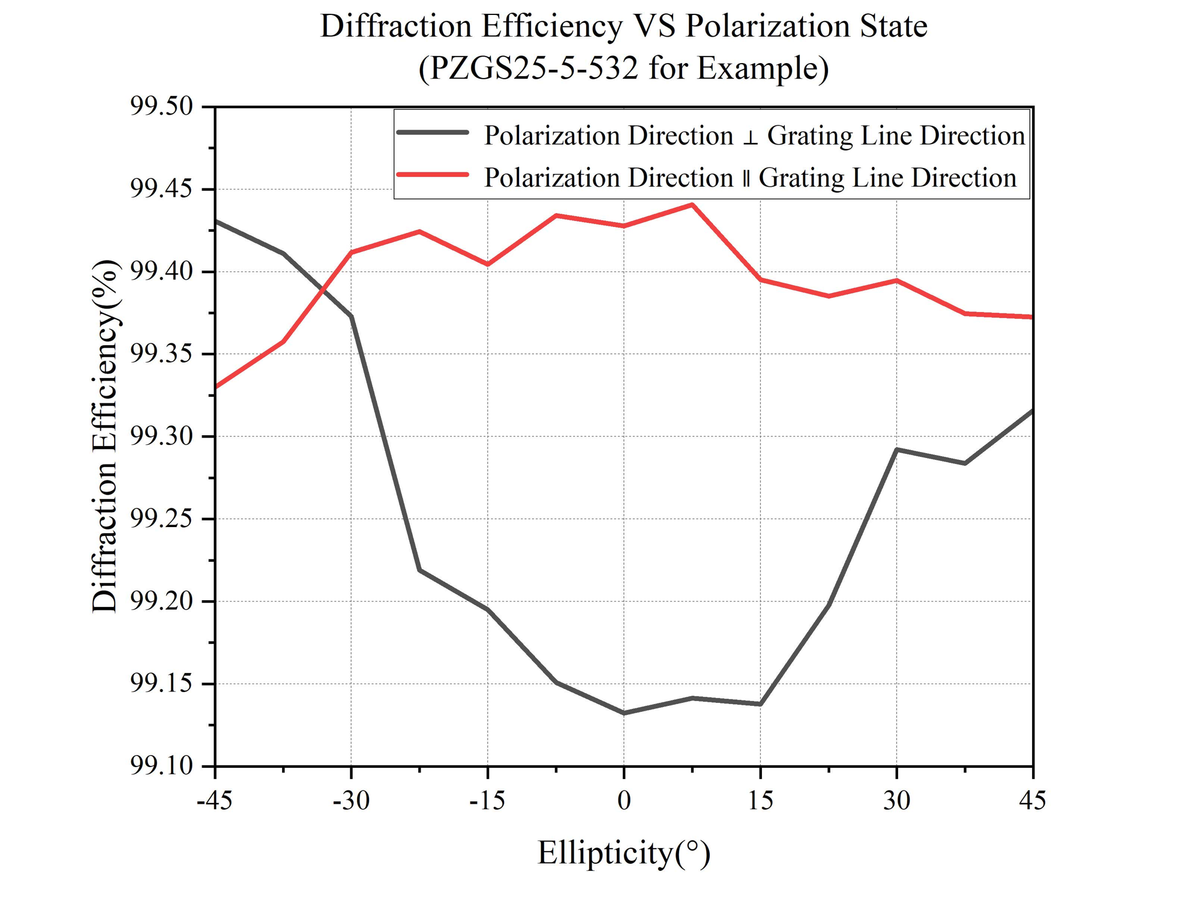

Curve 1
Curve 1

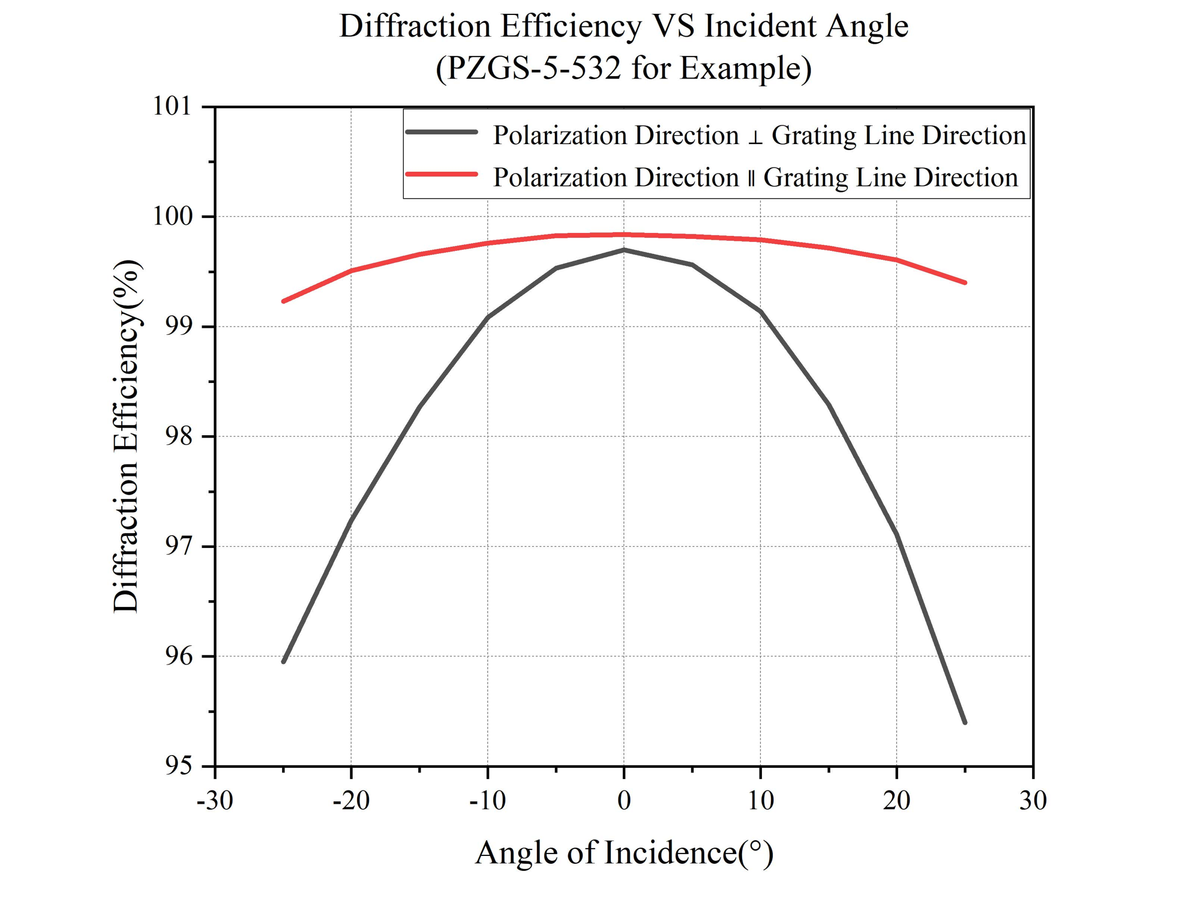

Curve 2
Curve 2

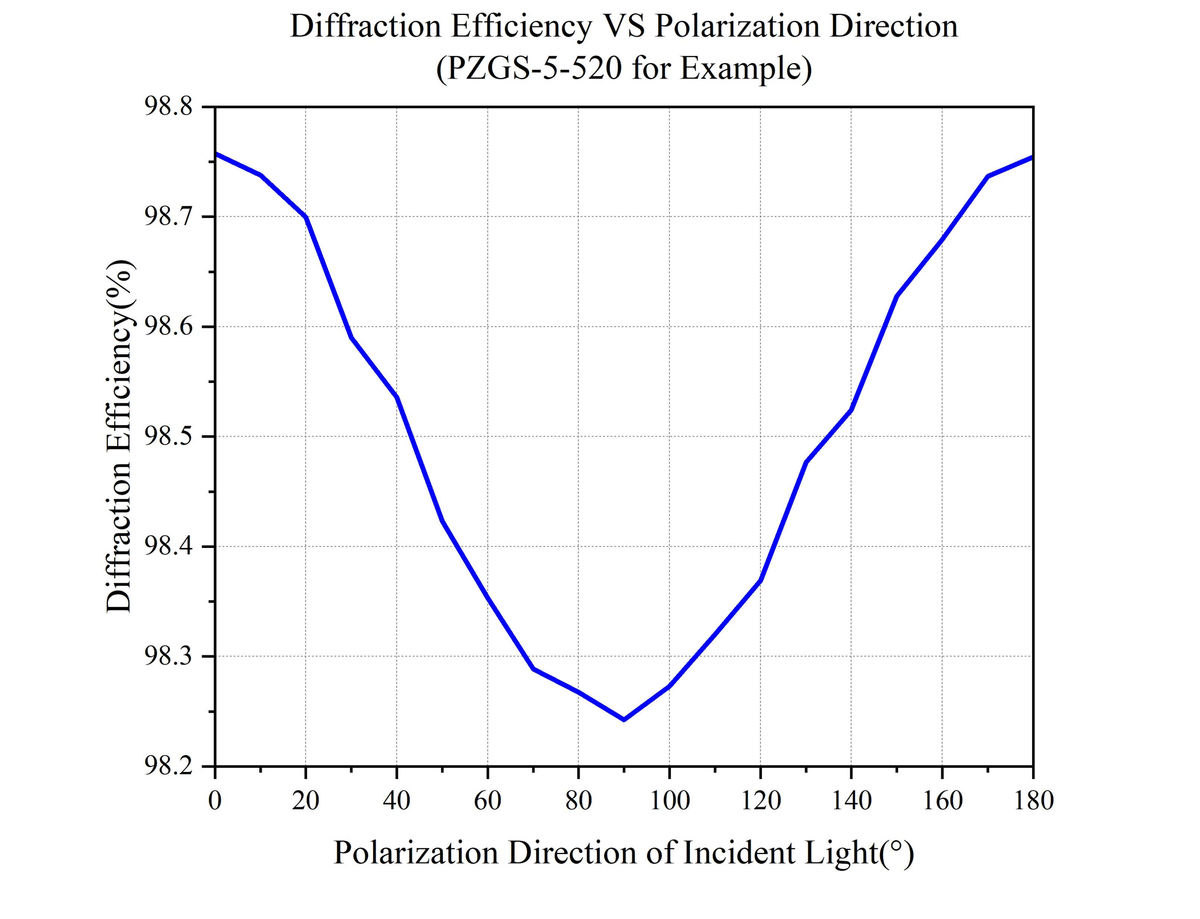

Curve 3
Curve 3

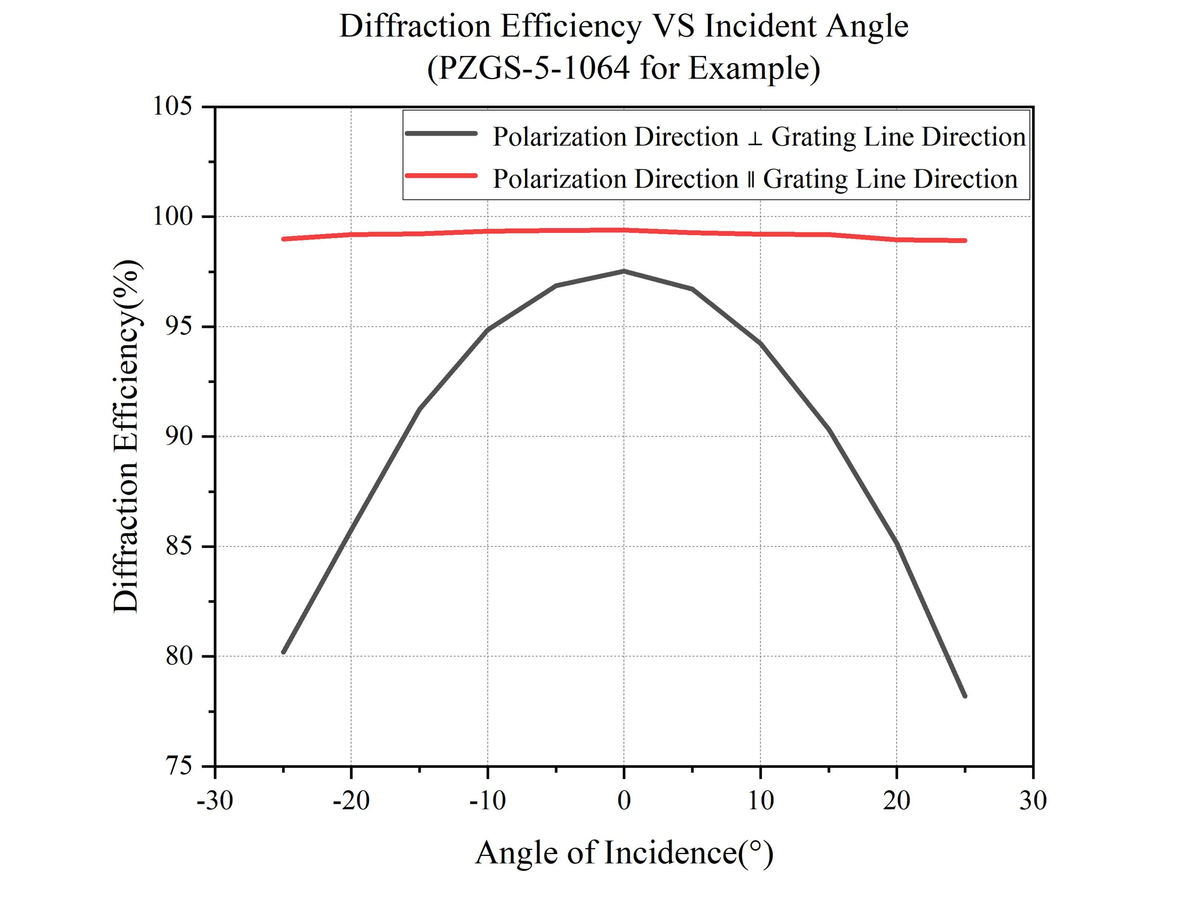

Curve 4
