Polarization gratings PZGS25-5-633

PZGS25-5-633
$1,904.32
In Stock· Ships in 3.0 weeks
Key Specifications
Wavelength 633.0nm
Request Quote

Design Tools

Grating Angle Calculator Compute diffraction angles and efficiency Wavelength ↔ Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Overview

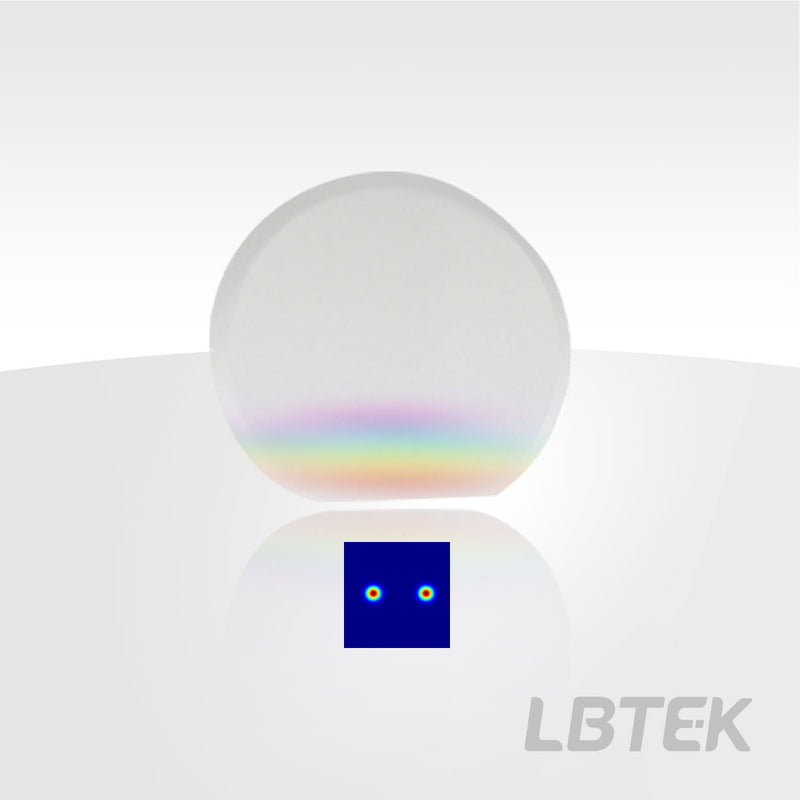

Polarization gratings are fabricated from liquid-crystal-polymer birefringent material on N-BK7 glass substrates in a sandwich structure. Model PZGS25-5-633 operates at 633 nm with a phase cycle p of 5 μm over a clear aperture of Ø20 mm, giving a typical deflection angle of 7.27 °.

Applications

  • Polarization-selective beam splitting and combining
  • Diffractive beam steering and deflection
  • Polarimetry and polarization-state analysis
  • Structured illumination and interference experiments

Construction & Performance

  • Material Liquid Crystal Polymer/N-BK7 Window Plate
  • Optical component size Ø25.4×3.2 mm, with a single-sided 2 mm cut edge
  • Retardance λ/2; delay accuracy and uniformity ± 5 nm
  • Diffraction efficiency ＞98 %; transmittance ＞97 %
  • AR coating Ravg＜0.5 %@400-700 nm
  • Surface quality (scratch/dig) 40/20; number of cores 200
  • Angle of incidence (AOI) ±20 °

Storage & Handling

Operating temperature -20 ℃~80 ℃.

Material Liquid Crystal Polymer/N-BK7 Window Plate
Clear Aperture Ø20 mm
AR Coating Ravg＜0.5 %@400-700 nm
Transmittance ＞97 %
Retardance λ/2
Surface Quality (Scratch/Dig) 40/20
Operating Temperature -20 ℃~80 ℃
Number of cores 200
Diffraction efficiency ＞98 %
Deflection angle (typical value) 7.27 °
Optical component size Ø25.4×3.2 mm, with a single-sided 2 mm cut edge
Delay Accuracy & Uniformity ± 5 nm
Operating wavelength λ 633 nm
Phase cycle p 5 μm
Angle of Incidence (AOI) ±20 °
Specification Sheet PDF — Download
Lead Time: 3.0 week1s
CAD Drawing Download
3D Model (STL) STL — Download
Curve 1
Curve 1

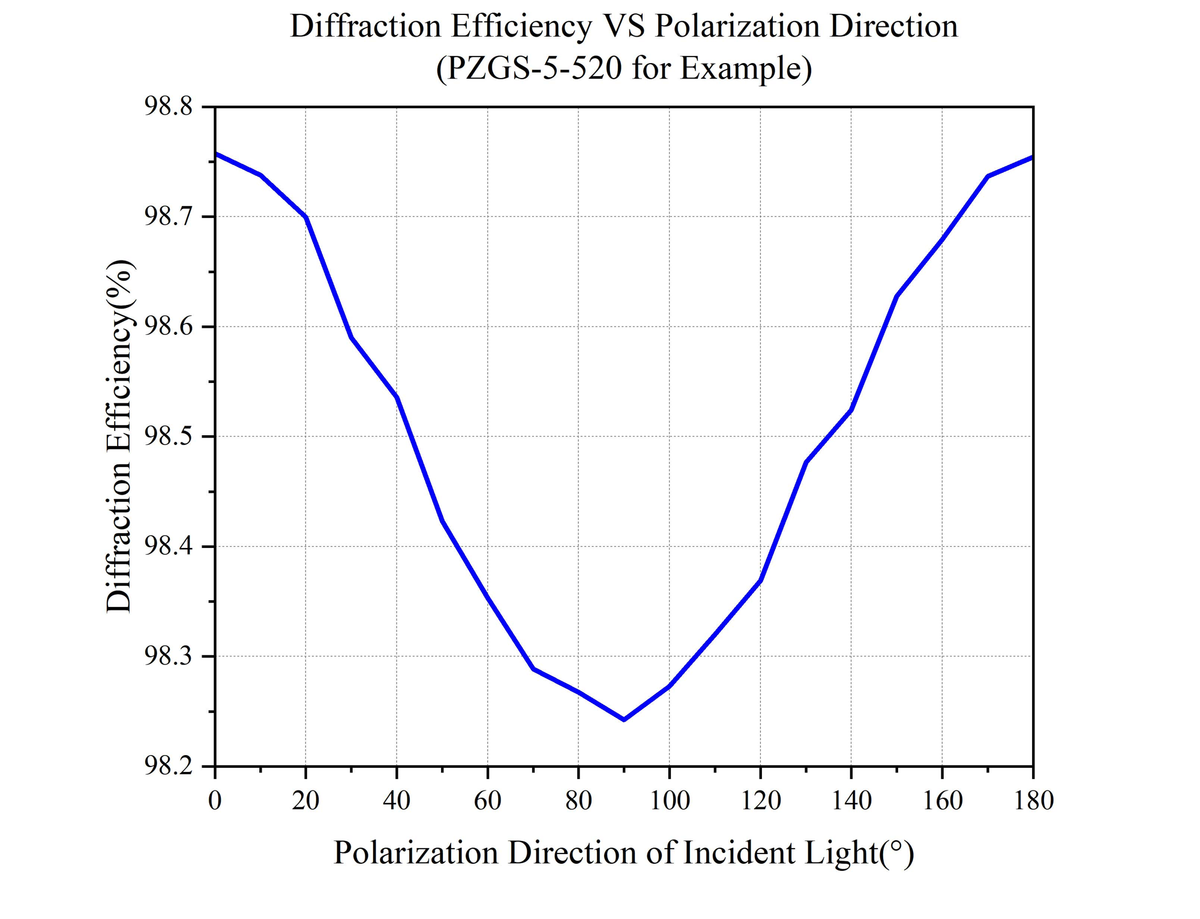

Curve 2
Curve 2

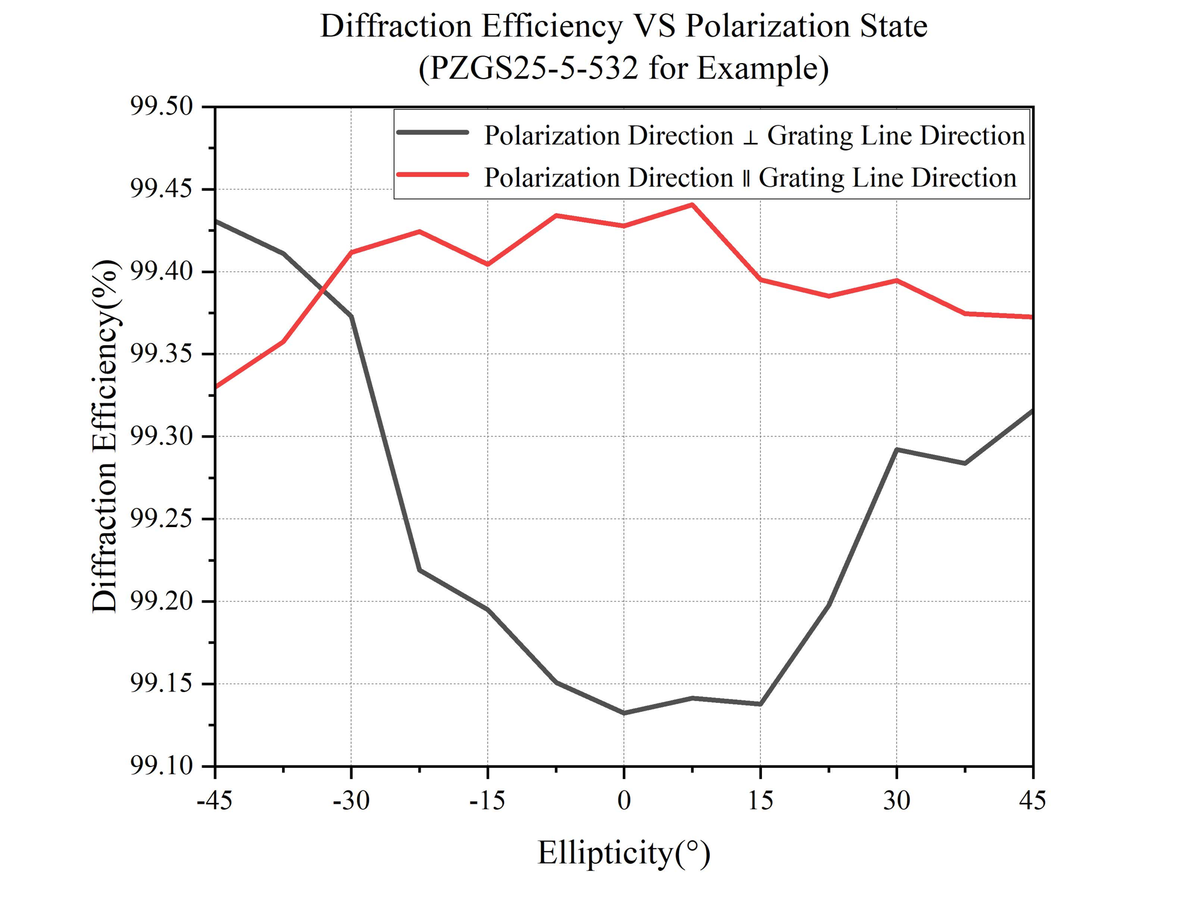

Curve 3
Curve 3

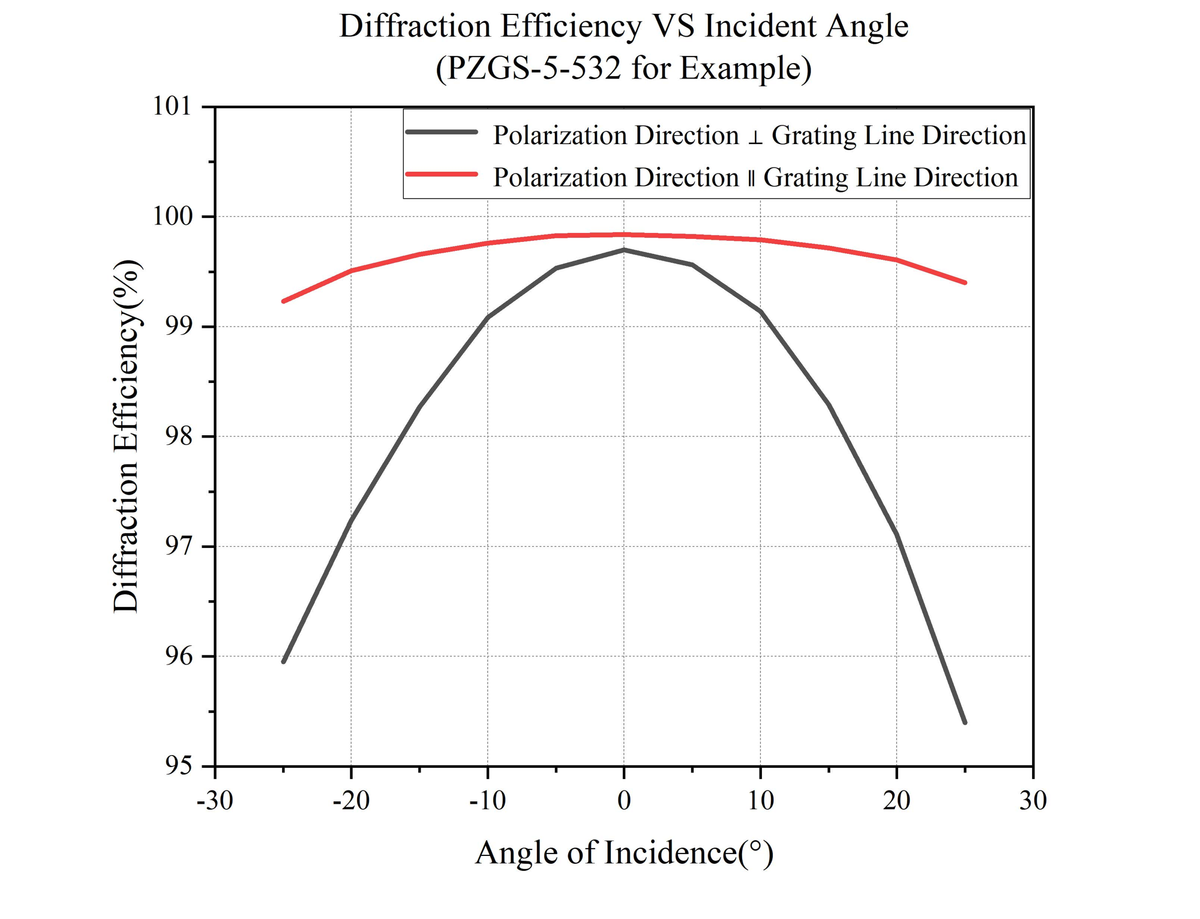

Curve 4
Curve 4

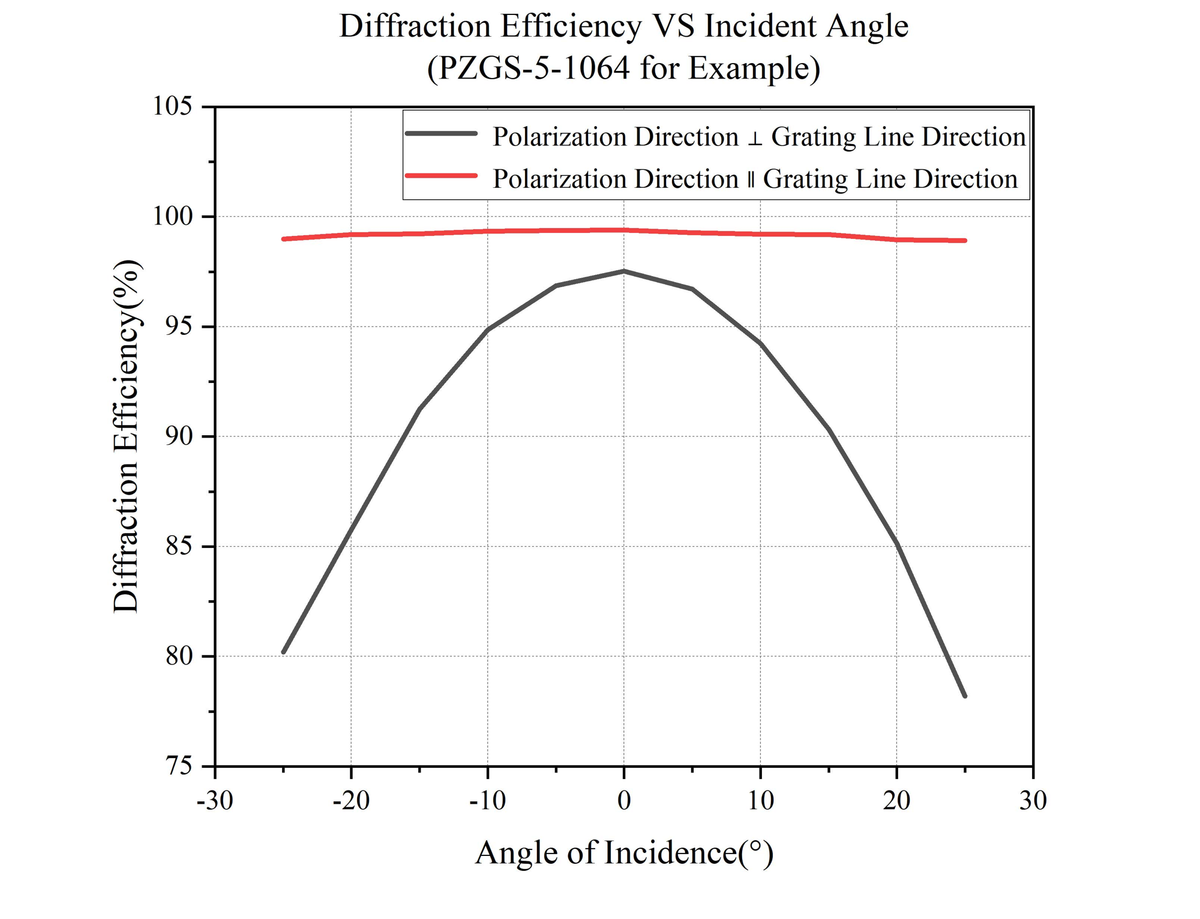

Curve 5
Curve 5
