Precision Adjustment Screw Assemblies M5X025-30KL

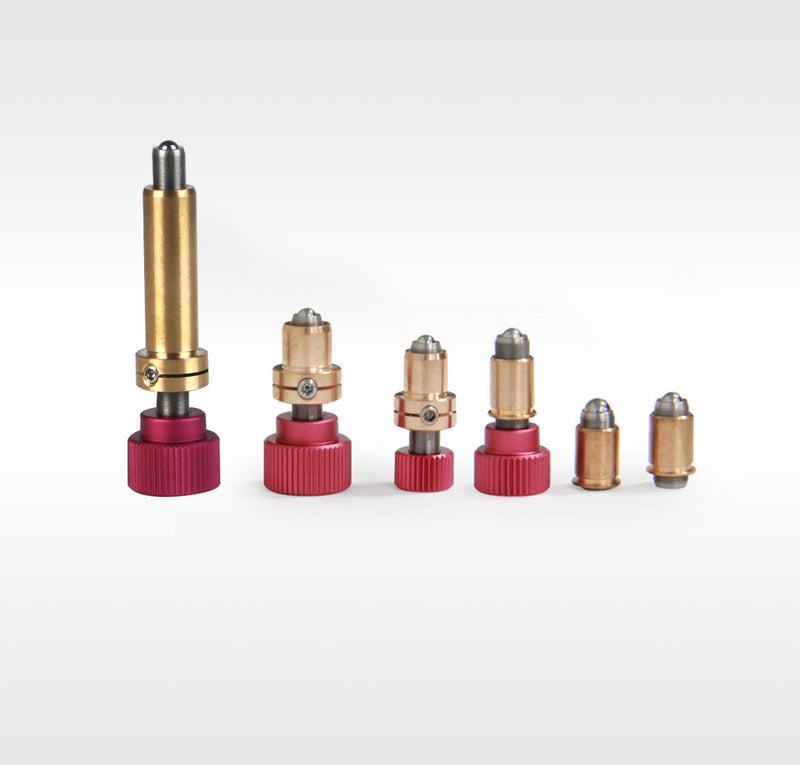

LBTEK precision adjustment screw assembly M5×0.25 is mainly used in opto-mechanical motion products, such as common optical adjustment mount series products, to control the precision of product movement. The diameter of the hex adjuster is M5, and the recommended matching hole size for the threaded bushing is 6.4 mm (0~+0.02 mm)~8 mm (0~+0.02 mm) optional. The head features a 2 mm hex socket hole, which can be paired with the included detachable knurled knob for precise adjustment, achieving an adjustment precision of 0.25 mm/revolution.
