Precision Adjustment Screw Assemblies M6X025-33N
M6X025-33N$28.82
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Precision Adjustment Screw Assemblies M6X025-33N from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

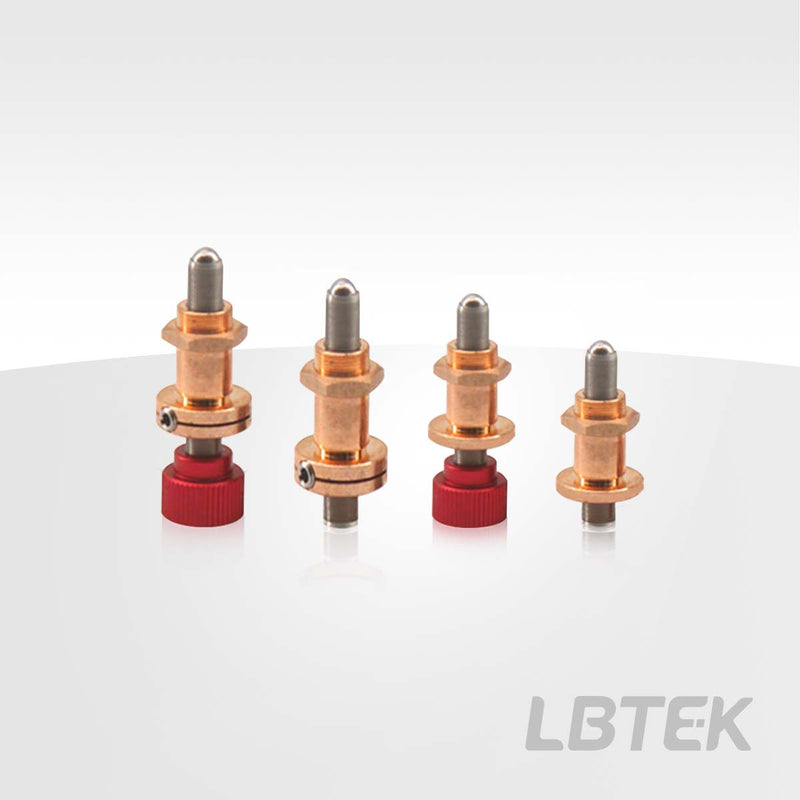

LBTEK precision adjustment screw assembly, M6×0.25 is mainly used in opto-mechanical motion products, such as common optical mount series products, to control the precision of product movement. The diameter of the hex adjuster is M6, with a 2 mm hex socket in the head. The recommended matching hole size for the threaded bushing is Ø 9.5 mm (0~+0.02 mm), featuring a hex nut for locking. The recommended matching part thickness ranges from 10 mm to 13 mm. It can be paired with the included detachable knurled knob for precision adjustment, achieving a fine-tuning precision of 0.25 mm/revolution.
Key Features
- Adjustment accuracy: 0.25 mm/revolution
- Recommended bore diameter for threaded bushing fit: φ9.5 mm (0~+0.02)
- Recommended mating part thickness: 10 mm~13 mm
- Maximum adjustment range: 14 mm
- Available with or without locking mechanism
- Available with or without knob
- Threaded bushing fixed with hex nut for easy disassembly
Application
M6×0.25 precision adjustment screw assembly, hex nut fixed type
| Material | 303 Stainless Steel |
| Material | Phosphor bronze |
| Bearing Type | 440C Stainless Steel & Ø4.76 mm |
| Shaft Diameter | Ø9.5 mm (0~+0.02 mm) |
| Adjustment accuracy | 0.25 mm/rev |
| Travel | 13.5 mm |
| Total length | 33.02 mm |
| Resolution | ±5 um |
| Optical Axis Height | No |
| Damping | No |
| Attribute 1005 | 10 mm~13 mm |
| Attribute 1006 | Hexagon nut locking |
