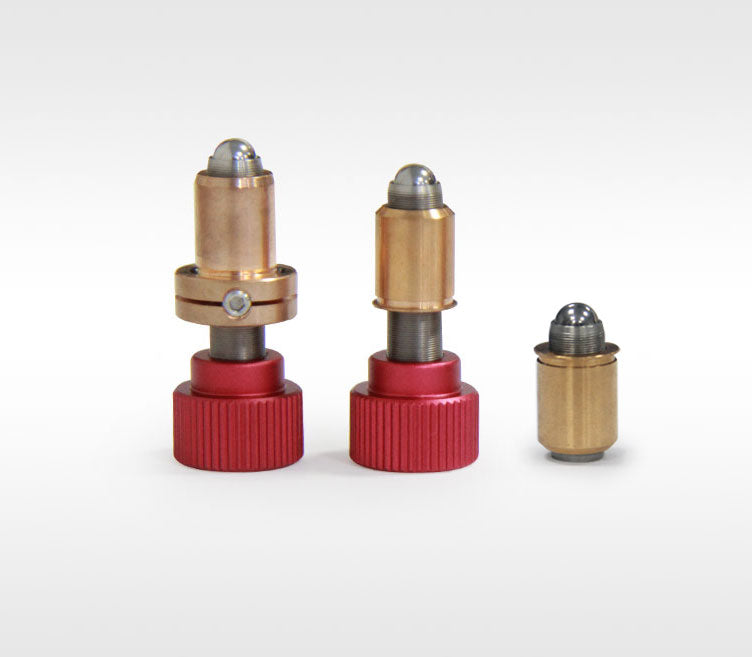

Precision Adjustment Screw Assemblies M6X025-32K

LBTEK precision adjustment screw assembly, M6×0.25 is mainly used in opto-mechanical motion products, such as common optical mount series products, to control the precision of product movement. The diameter of the hex adjuster is M6, and the recommended bore size for the threaded bushing is 8.6 mm (0~+0.02 mm). The head features a 2 mm hex socket, which can be paired with the included detachable knurled knob for precise adjustment, achieving a regulation precision of 0.25 mm/revolution.
