Precision pinhole PC1-15H
PC1-15H$279.51
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Precision pinhole PC1-15H from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

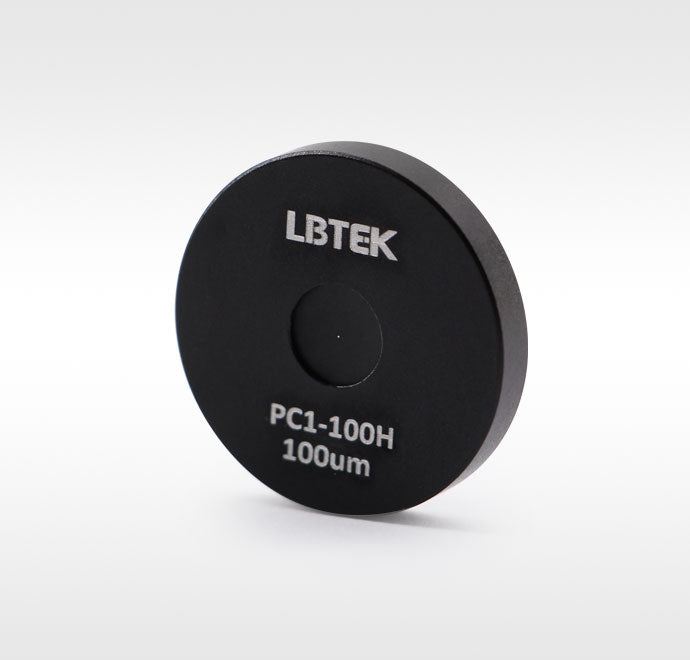

LBTEK offers copper high-energy precision pinholes with selectable aperture diameters ranging from Ø5 to Ø100 μm. The pinhole copper plate features a gold-plated front side and a blackened back side, housed in an aluminum alloy casing with an outer diameter of Ø25.4 mm, allowing for convenient installation in Ø25.4 mm mounting brackets.
Note: The pinhole metal sheet is relatively thin, and some products may exhibit minor peripheral deformation of the metal sheet. However, this does not affect the functionality or usage of the pinhole.
Key Features
- Shell material 6061-T6 aluminum alloy
- Pinhole metal sheet material: copper
- High-energy pinhole, gold-plated on the front side, blackened on the reverse side
Application
Precision pinholes are often installed in TXY1S
| Lead Time | In Stock |
No CAD drawings available for this product.
