The Precision pinhole PC1-50H from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

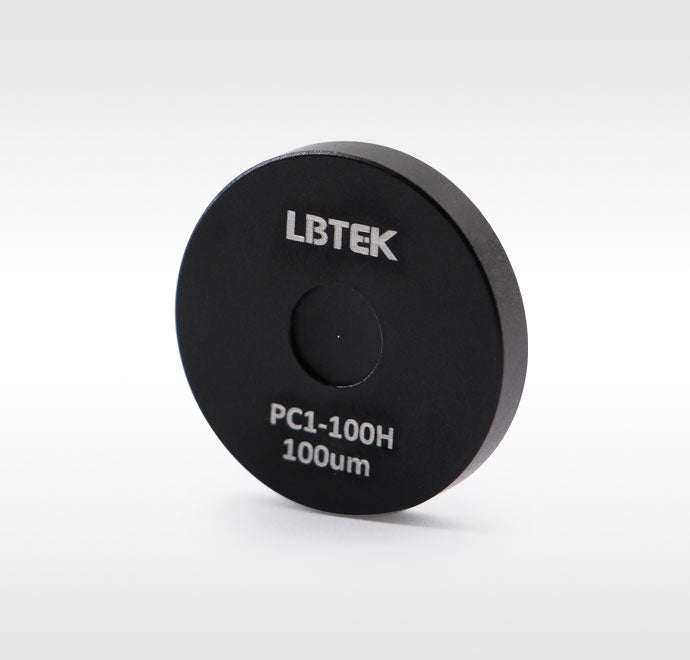

LBTEK offers copper high-energy precision pinholes with selectable aperture diameters ranging from Ø5 to Ø100 μm. The pinhole copper plate features a gold-plated front side and a blackened back side, housed in an aluminum alloy casing with an outer diameter of Ø25.4 mm, allowing for convenient installation in Ø25.4 mm mounting brackets.
Note: The pinhole metal sheet is relatively thin, and some products may exhibit minor peripheral deformation of the metal sheet. However, this does not affect the functionality or usage of the pinhole.
Key Features
- Shell material 6061-T6 aluminum alloy
- Pinhole metal sheet material: copper
- High-energy pinhole, gold-plated on the front side, blackened on the reverse side
Application
Precision pinholes are often installed in TXY1S
| Housing Material | 6061-T6 aluminum alloy |
| Mount Diameter | Ø25.4 mm |
| Tap Spacing | 4.1 mm |
| Housing Surface Treatment | Black anodized |
| Pinhole Diameter | Ø50 μm±3 μm |
| Pinhole Metal Sheet Material | Copper |
| Thickness of pinhole metal sheet | 25 μm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
