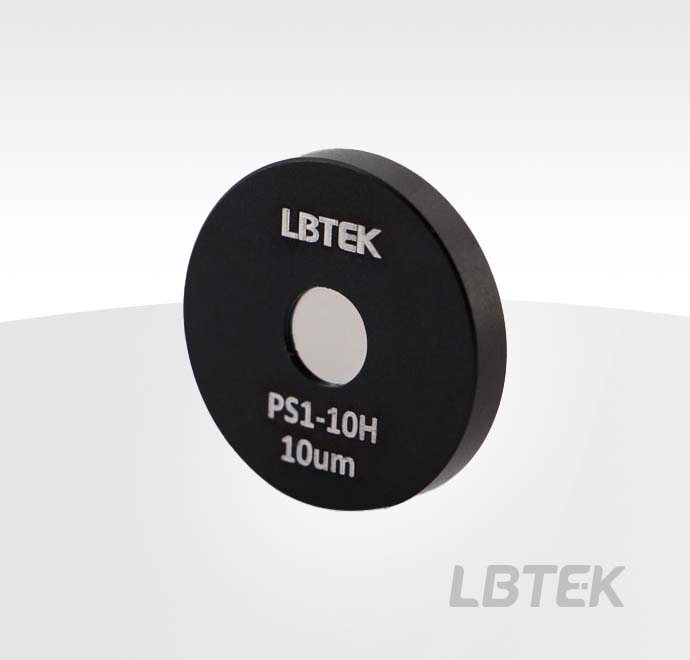

Precision pinhole PS1-10H
PS1-10H$172.16
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Precision pinhole PS1-10H from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today
LBTEK offers stainless steel precision pinholes with optional aperture diameters ranging from Ø2 to Ø2000 μm. The stainless steel pinhole plates are uncoated and mounted in aluminum alloy housings with an outer diameter of Ø25.4 mm, allowing for convenient installation in Ø25.4 mm mounting brackets. During the manufacturing process of stainless steel pinholes, slight marks may appear on the metal plates, which are normal processing residues and will not affect functionality.
Note: The pinhole metal plates are relatively thin, and some products may exhibit minor deformations around the edges of the metal plates. However, these will not affect the functionality or usage of the pinholes.
Key Features
- Shell material 6061-T6 aluminum alloy
- Pinhole metal sheet material: 300 series stainless steel
- Standard pinhole without coating treatment
Application
Precision pinholes are often installed in TXY1S
| Lead Time | In Stock |
