What wavelength range does Quartz True Zero-Order Half-Wave Plate — HWP20-488BT support?

Quartz True Zero-Order Half-Wave Plate — HWP20-488BT operates at a center wavelength of 488.0 nm.

What documentation is available for Quartz True Zero-Order Half-Wave Plate — HWP20-488BT?

The following documents are available for download on the Quartz True Zero-Order Half-Wave Plate — HWP20-488BT product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Quartz True Zero-Order Half-Wave Plate — HWP20-488BT available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta. Typical lead time is 0.0 week.Contact our sales team for current availability and volume pricing.

WaveQuanta

Quartz True Zero-Order Half-Wave Plate — HWP20-488BT

Name: Quartz True Zero-Order Half-Wave Plate — HWP20-488BT
Brand: WaveQuanta
SKU: HWP20-488BT
Price: 788.16 SGD
Availability: InStock

HWP20-488BT

$788.16

In Stock

Key Specifications

Wavelength 488.0nm

Transmittance 0.25%

Request Quote

Design Tools

Wavelength ↔ Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Fiber Optics Optomechanics

RoHS REACH

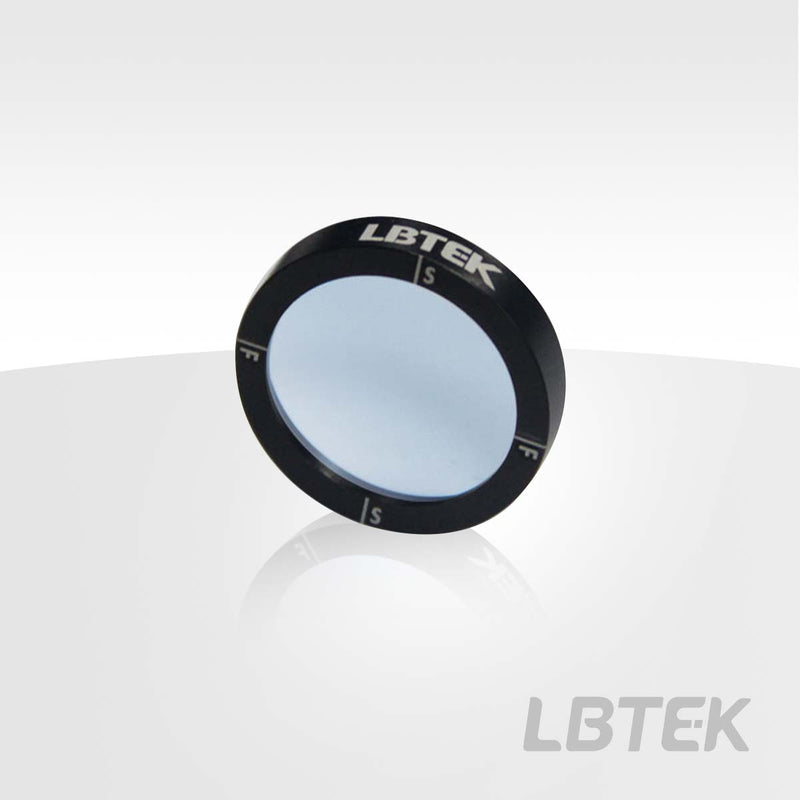

Quartz True Zero-Order Half-Wave Plate — Model HWP20-488BT

λ/2 quartz waveplate at 488 nm, mounted in standard SM housing.

Overview

These Quartz True Zero-Order Half-Wave Plates deliver a λ/2 retardance at the design wavelength. The true zero-order single-plate quartz construction provides superior thermal and spectral stability with minimal beam deviation. Each plate is anti-reflection coated on both surfaces (R < 0.25% @ design wavelength) and mounted in a standard SM05 or SM1 lens tube for seamless integration into polarization control setups.

Key Features

True Zero-Order design at the specified design wavelength
Retardance: λ/2
V-type anti-reflection coating on both surfaces
Surface finish 10/5 to 20/10
Operating temperature tolerant, polarization-stable
Mounted in standard SM05 / SM1 housing for seamless integration

Applications

Polarization state conversion (linear ↔ circular / elliptical)
Laser isolator, interferometry, and ellipsometry systems
Quantum optics and photonic research
Integration with polarizing beamsplitters and prisms

Optical component material	Crystalline Quartz
Mechanical housing diameter	25.4 mm
Mechanical housing diameter tolerance	+0.0/-0.1 mm
Clear Aperture	Ø20.0 mm
Mechanical housing thickness	4.79 mm
Diameter	25.4 mm
Design Wavelength	488 nm
Operating Wavelength	488 nm
Coating	V-Type AR Coating
Anti-reflective coating	R<0.25%@Design Wavelength (6° AOI, Single Surface)
Retardance	λ/2
Retardance Accuracy	±λ/200
Surface finish (scratches/pits)	10/5
Transmitted Wavefront Error (TWE) (@633 nm)	λ/6 over full CA; λ/8 over 50% CA
Surface Parallelism	<3 arcsec

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Quartz True Zero-Order Half-Wave Plates (18 variants)

Product ▴▾	SKU	Diameter ▴▾	Operating Wavelength ▴▾	Housing Diameter ▴▾
Quartz True Zero-Order Half-Wave Plate — HWP20-1310BT	`HWP20-1310BT`	25.4 mm	1310 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-1550BT	`HWP20-1550BT`	25.4 mm	1550 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-1064BT	`HWP20-1064BT`	25.4 mm	1064 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-1030BT	`HWP20-1030BT`	25.4 mm	1030 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-980BT	`HWP20-980BT`	25.4 mm	980 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-905BT	`HWP20-905BT`	25.4 mm	905 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-850BT	`HWP20-850BT`	25.4 mm	850 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-808BT	`HWP20-808BT`	25.4 mm	808 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-800BT	`HWP20-800BT`	25.4 mm	800 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-780BT	`HWP20-780BT`	25.4 mm	780 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-670BT	`HWP20-670BT`	25.4 mm	670 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-633BT	`HWP20-633BT`	25.4 mm	633 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-532BT	`HWP20-532BT`	25.4 mm	532 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-520BT	`HWP20-520BT`	25.4 mm	520 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-488BT Current	`HWP20-488BT`	25.4 mm	488 nm	25.4 mm
Quartz True Zero-Order Half-Wave Plate — HWP20-445BT	`HWP20-445BT`	25.4 mm	445 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-442BT	`HWP20-442BT`	25.4 mm	442 nm	25.4 mm	View
Quartz True Zero-Order Half-Wave Plate — HWP20-405BT	`HWP20-405BT`	25.4 mm	405 nm	Ø25.4 mm	View
