Standard O-Type 2-Dimensional Optical Mounts AMM-2A
AMM-2A$124.77
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

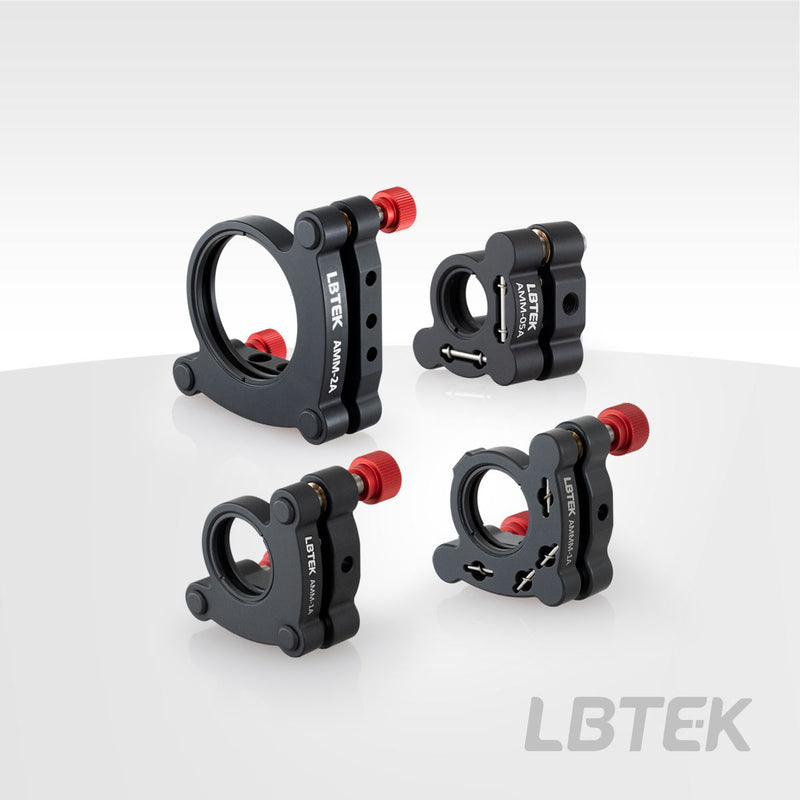

Standard O-Type 2-Dimensional Optical Mounts ā Model AMM-2A
ā In Stock ā Ships Today
The LBTEK Type A Standard O-Type Dual-axis Optical Mount features an internal threaded through-hole and secures optical components using two retaining rings. The base of the mount is equipped with two M4 countersunk holes for connecting to optical posts. The AMMM-1A has a short production cycle, meeting requirements for rapid bulk delivery, and its four tension springs provide enhanced stability.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Two Precision Adjusters
- Adjustable Angle Ā±3Ā° or Ā±4Ā°
- Includes 2 Retaining Rings
Application
AMM series products are commonly used for mounting optical components such as mirrors.
| Applicable optical element diameter | Ć50.8mm |
| Optical component mounting method | Dual retaining ring |
| Countersunk Hole Specification/Quantity | M4/6 pcs |
| Material | 6061-T6 Aluminum Alloy |
| Adjustable pitch/yaw angle range | Ā±3 Ā° |
| Maximum thickness of optical components | 5.2 mm |
| Function | 2 |
| Surface Treatment | Black anodized |
| Regulator Specifications / Quantity | M6/2 pcs |
Product Family: Standard O-Type 2-Dimensional Optical Mounts (11 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Standard O-Type 2-Dimensional Optical Mounts AMMC-05B |
AMMC-05B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMMC-1B |
AMMC-1B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMMC-2B |
AMMC-2B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05B |
AMM-05B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-1B |
AMM-1B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-2B |
AMM-2B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-30B |
AMM-30B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05B-SP |
AMM-05B-SP
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05A |
AMM-05A
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-1A |
AMM-1A
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-2A Current |
AMM-2A
| — | — | — |
