Standard O-Type 2-Dimensional Optical Mounts AMMC-2B
✔ In Stock — Ships Today

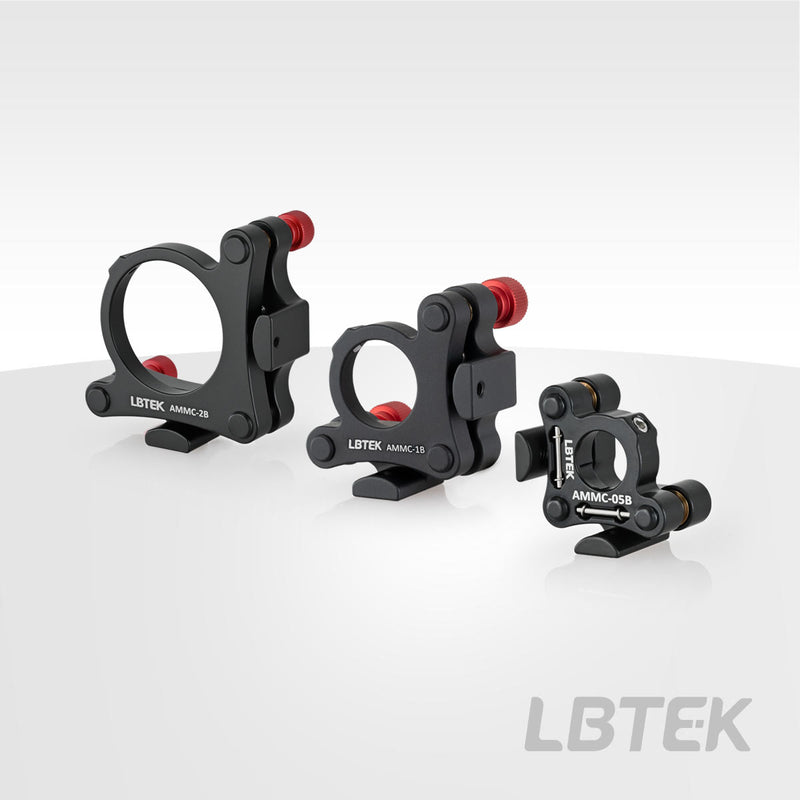

The LBTEK AMMC Series Standard O-Type Mount, with a smooth bore, secures optical components with set screws. The base of the mount is equipped with two M4 threaded holes for connecting to optical posts. The surface centerline aligns with the center of the post' mounting hole, simplifying the beam alignment process.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Two precision adjusters
- Secured with M4 rubber-tipped set screws
- Surface centerline aligning with the center of the post's mounting hole
Application
AMMC series products are commonly used for mounting optical components such as mirrors.
| Function | None |
| Applicable optical element diameter | Ø50.8mm |
| Surface Treatment | Black anodized |
| Optical component mounting method | M4 rubber-tipped set screw, compatible with 2mm hex key |
| Regulator Specifications / Quantity | M6/2 pcs |
| Mounting Hole Pattern | M4/2 pcs |
| Material | 6061-T6 Aluminum Alloy |
| Adjustable pitch/yaw angle range | ±3 ° |
| Minimum applicable thickness for optical components | 4 mm |
| Installation Method | Post connection |
Product Family: Standard O-Type 2-Dimensional Optical Mounts (11 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Standard O-Type 2-Dimensional Optical Mounts AMMC-05B |
AMMC-05B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMMC-1B |
AMMC-1B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMMC-2B Current |
AMMC-2B
| — | — | — | |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05B |
AMM-05B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-1B |
AMM-1B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-2B |
AMM-2B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-30B |
AMM-30B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05B-SP |
AMM-05B-SP
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05A |
AMM-05A
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-1A |
AMM-1A
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-2A |
AMM-2A
| — | — | — | View |
