Standard O-Type 2-Dimensional Optical Mounts AMM-2B
AMM-2B$109.53
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
Standard O-Type 2-Dimensional Optical Mounts — Model AMM-2B
✔ In Stock — Ships Today

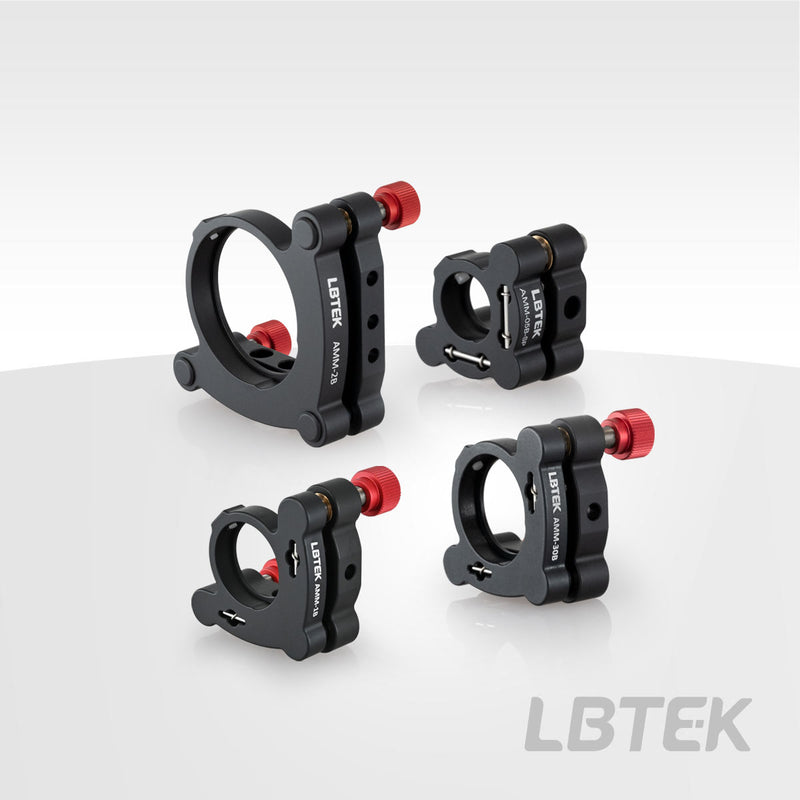

The LBTEK Type B Standard O-type Mount features smooth bores without threads and uses set screws to secure optical components. The AMM-1B and AMM-2B mounts are equipped with 2 M4 countersunk holes at the base, while the AMM-05B has 2 M4 through-holes for connecting to optical posts. The AMM-05B uses M4 threaded holes for post connection, whereas the AMM-05B-SP has Ø4.2 mm smooth bore holes, allowing easier control of the mount's orientation after tightening when the mounted component cannot rotate. LBTEK also supports customization of O-type mounts for large-diameter optical components ranging from 3 inches to 8 inches in this series. For details, please contact technical support. The AMMM-1B has a short production cycle, meeting requirements for rapid bulk delivery, and its four tension springs provide enhanced stability.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Two Precision Adjusters
- Adjustable Angle: ±3° or ±4°
- Fixed with M4 Rubber-Tipped Set Screws
Application
AMM series products are commonly used for mounting optical components such as mirrors.
| Function | None |
| Applicable optical element diameter | Ø50.8mm |
| Surface Treatment | Black anodized |
| Optical component mounting method | M4 rubber-tipped set screw, compatible with 2mm hex wrench |
| Regulator Specifications / Quantity | M6/2 pcs |
| Countersunk Hole Specification/Quantity | M4/6 pcs |
| Material | 6061-T6 Aluminum Alloy |
| Adjustable pitch/yaw angle range | ±3 ° |
| Minimum applicable thickness for optical components | 4 mm |
Product Family: Standard O-Type 2-Dimensional Optical Mounts (11 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Standard O-Type 2-Dimensional Optical Mounts AMMC-05B |
AMMC-05B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMMC-1B |
AMMC-1B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMMC-2B |
AMMC-2B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05B |
AMM-05B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-1B |
AMM-1B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-2B Current |
AMM-2B
| — | — | — | |
| Standard O-Type 2-Dimensional Optical Mounts AMM-30B |
AMM-30B
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05B-SP |
AMM-05B-SP
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-05A |
AMM-05A
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-1A |
AMM-1A
| — | — | — | View |
| Standard O-Type 2-Dimensional Optical Mounts AMM-2A |
AMM-2A
| — | — | — | View |
