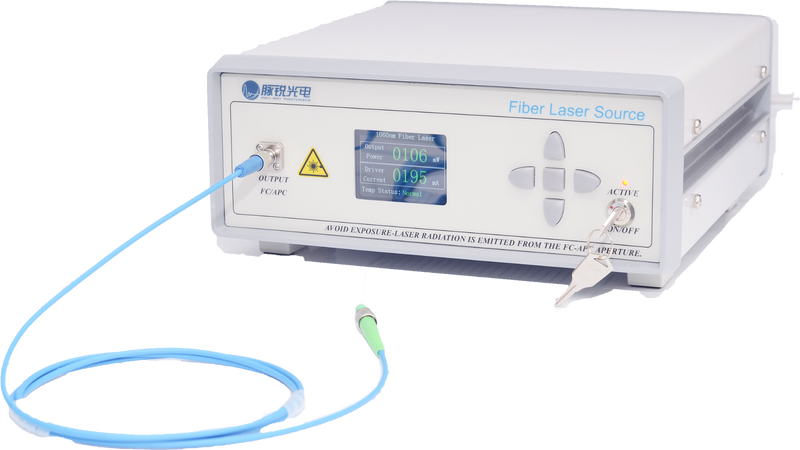

1550nm High-power nanosecond pulsed fiber laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 1550nm high-power nanosecond pulsed fiber laser employs a high-power gain fiber module, complemented by specialized driver and temperature control circuits, to output high-peak and high-energy laser pulses with stable laser wavelength and power. It can be utilized in laser ranging radars, fiber-optic sensing systems, and other applications.
Features & Applications
- All-fiber structure
- L idar
- Pulse Duratio、 Freq 、 Power Adjustable
- Nonlinear O ptics
- Pulse energy up to 100uJ
- Fiber o ptic d istributed s ensing
| Models | Specification |
|---|---|
| Wavelength (nm) | 1550 |
| Wavelength Accuracy (nm) | ± 1 |
| Maximum pulse energy (μJ) | 100 |
| Maximum peak power (k W) | 10 |
| Maximum average power (W) | 2 |
| Pulse Duration (ns) | 1 ～ 200 Adjustable |
| Repetition Rate (kHz) | 1～ 3000 Adjustable |
| M 2 | ≤1.1 |
| OutputIsolation (dB) | ≥30 |
| Short-term stability (15 minutes) (dB) | ≤ ±0.05 |
| Long-term stability (8 hours) (dB) | ≤ ±0. 1 |
| Polarization | Random |
| Optical Fiber | SMF-28， 900umTube |
| Fiber C onnectors | FC/APC ， Length≥0.3m |
Maximum pulse energy: @Repetition Rate≤10kHz，Pulse Duration≥10ns
Maximum peak power: @ Pulse Duration3ns， Repetition Rate ≤10kHz
Maximum average power: @ Pulse Duration≥3ns， Repetition Rate≥100kHz
Pulse Duration: *1~3ns@FWHM，>3ns@ Full width at the Base
M 2: Based on the collimator
Short-term stability (15 minutes): ≤± 1.2 %
Long-term stability (8 hours): ≤± 2 %
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
