Single-frequency narrow linewidth semiconductor laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

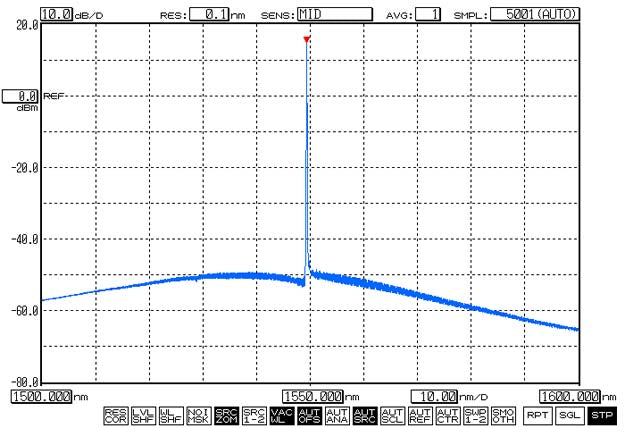

The single-frequency narrow linewidth fiber laser uses an ultra-narrow linewidth external cavity semiconductor laser chip to output a single longitudinal mode laser with a wavelength of 1550nm, with a spectral linewidth of less than 100kHz, and a single-mode or polarization maintaining fiber coupled output. It is provided in a module or desktop package. It is a cost-effective laser source that can be used for distributed sensing.
| Models | Specification |
|---|---|
| Operating wavelength (nm) | 1550± 1 |
| Spectral linewidth @3dB (kHz) | ≤ 100 |
| Side mode rejection ratio (dB) | ≥50 |
| Wavelength instability (MHz) | ≤± 100 |
| Working mode | CW |
| Output power (mW) | 30 |
| Short-term stability (15 minutes) (dB) | ≤ ±0.02 |
| Long-term stability (8 hours) (dB) | ≤ ±0.05 |
| Polarization state | linear polarization |
| Pigtail type | PM1550 |
spectral linewidth @3dB: *3dB line width = 20dB line width/20
wavelength instability: @8h
working mode: continuous light
short-term stability (15 minutes): equivalent ≤±0.5%
long-term stability (8 hours): equivalent ≤±1.2%
pigtail type: FC/APC
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
