MR Photonics
1550nm Nano-second Pulse Fiber Laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The nanosecond pulsed laser utilizes unique circuit and optical optimization designs, allowing the output laser pulse duration, peak power, and repetition rate to be adjustable. It operates with stable wavelength and power output, featuring a single-mode fiber output. The modular design facilitates system integration, making it suitable for distributed optical fiber sensing systems.
Features & Applications
- All-fiber structure
- Lidar
- Pulse Duratio、 Freq 、 Power A djustable
- Nonlinear O ptics
- Benchtop or m odule p ackaging
- DTS
| Models | Specification |
|---|---|
| C enter Wavelength (nm) | 1550±1 |
| Optical Spectrumwidth (nm) | ≤1 |
| O utpu t p ea k power (W) | 5～ 5 Adjustable |

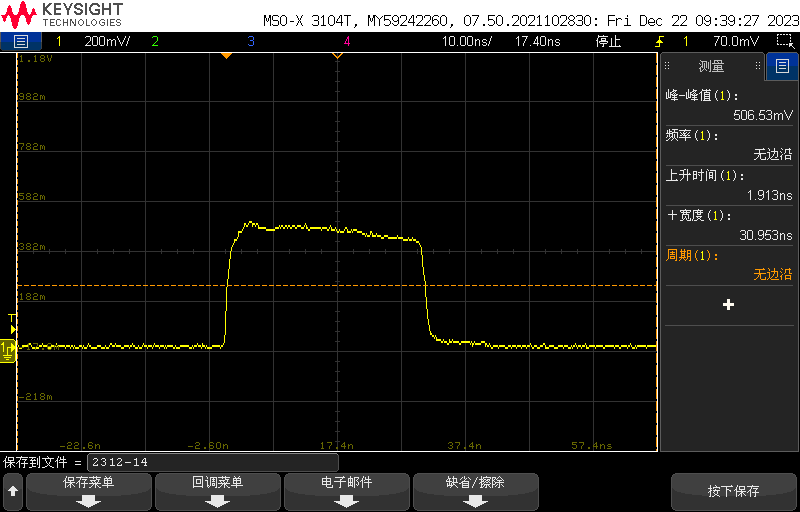

| Pulse Duration (ns) | 5～3 Adjustable |
| Repetition Rate (kHz) | 1～100 Adjustable |
| Short-term stability (15 minutes) (dB) | ≤ ±0.02 |
| Long-term stability (8 hours) (dB) | ≤ ±0.05 |
| Optical Fiber | SMF-28 |
| Fiber connectors | FC/APC |
O utpu t p ea k power: Maximu power customizable
Pulse Duration: Pulse duration customizable
Short-term stability (15 minutes): ≤±0.5%
Long-term stability (8 hours): ≤±1.2%
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
