Single-frequency narrow linewidth nanosecond pulsed fiber laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The laser uses a single-frequency narrow linewidth laser as the seed source and cooperates with a high-power gain fiber module to output single-frequency narrow linewidth laser pulses with high peak value and high energy. The laser wavelength and power are stable, and can be used for coherent lidar, optical fiber sensing systems, etc.
| Models | Specification |
|---|---|
| Center wavelength (nm) | 1550± 1 |
| Spectral linewidth (kHz) | ≤3/≤100 |
| Maximum single pulse energy (μJ) | 10 |
| Maximum output peak power (W) | ≥50 |
| Maximum average laser power (mW) | 100~200 |
| Pulse width (ns) | 20~1000 |
| Repetition frequency (kHz) | 1 ~ 200 |
| Pulse turn-off ratio (dB) | ≥60 |
| Beam quality M 2 | ≤1.1 |
| Output isolation (dB) | ≥30 |
| Short-term stability (15 minutes) (dB) | ≤ ±0.02 |
| Long-term stability (8 hours) (dB) | ≤ ±0. 05 |
| Output laser polarization state | random/Line deviation |
| Pigtail type | SMF-28/PM1550 |
| Fiber pigtail joint type | FC/APC or fiber collimator |
Maximum single pulse energy: @ Pulse frequency =20kHz, pulse width =200ns
Maximum output peak power: 50W peak @ Pulse frequency =20kHz, pulse width =200ns
Maximum average laser power: @ Pulse energy = 10uJ, pulse frequency =10 to 20kHz

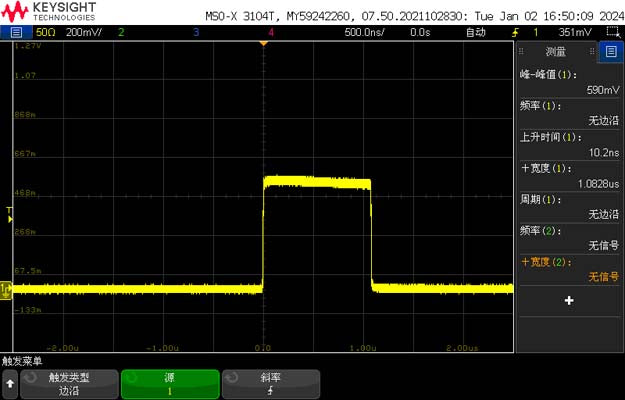

Pulse width: * Refers to the full width at the bottom of the pulse, adjustable
repetition frequency: Adjustable
beam quality M 2: @ When cooperating with the output of the optical fiber collimator
short-term stability (15 minutes): equivalent ≤± 0.5 %
long-term stability (8 hours): equivalent ≤± 1.2 %
pigtail type: 900um casing, length 0.3 m
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
