1st Order Distributed Fiber Raman Amplifier
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Fiber Raman amplifier utilizes the Raman scattering effect in quartz optical fibers to provide gain for optical signals. By employing a 14xxnm wavelength laser as the Raman pump, it can provide gain for the signal light in the C-band, effectively compensating for the attenuation of optical signals during long-haul transmission in optical fibers. It is suitable for long-distance optical transmission systems and distributed optical fiber sensing systems.
Features & Applications
- Wide operating wavelength
- Long-distance fiber communication
- High Gain
- Fiber optic distributed sensing
- Low noise figure
- Fiber Laser
| Models | Specification |
|---|---|
| Pump W avelength (nm) | 1425~1465 |
| Signal Wavelength (nm) | 1528~1565 |

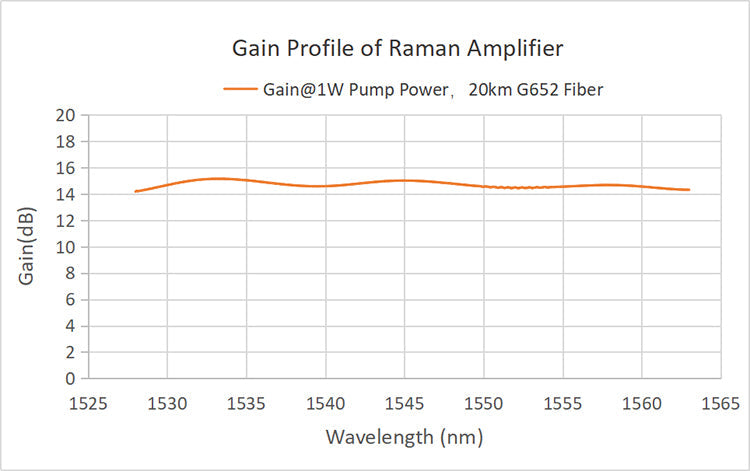

| Raman Gain (dB) | 10/20 |
| Gain Flatness (dB) | <2 |
| Pump P ower (mW) | 300/500/1000/1400 |
| Degree of polarization (DOP) of pump light | 5% (Ty pical )，10%(Max) |
| Noise Figure (dB) | 0 |
| Optical Fiber | SMF-28 |
| Fiber connectors | FC/APC |
| Control Mode | APPC（Automatic p ump power c ontrol） |
Signal Wavelength: Customizable
Raman Gain: *Note 2
Gain Flatness: *Note 2
Pump P ower: Customizable
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
