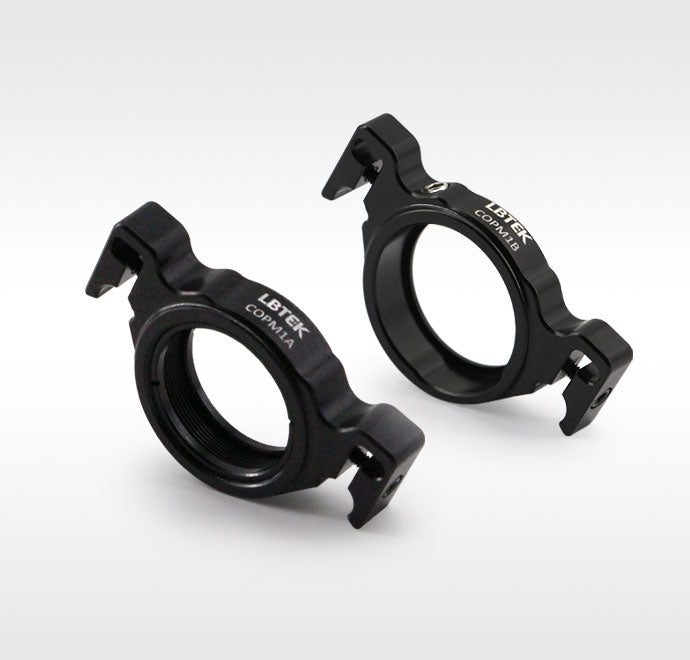

30mm Coaxial Quick-Release Mounting Plate COPM1A

The 30 mm snap-in flexible coaxial mounting plate provided by LBTEK is suitable for mounting Ø25.4 mm optical components. The COPM1B version features light-wall mounting holes and uses knurled screws to secure optical components, with a recommended minimum thickness of 5 mm for the mounted optics. The COPM1A version has SM1 threaded through holes and uses dual retaining rings to fix optical components, accommodating a maximum thickness of 6 mm. Both versions include 2 coaxial rod through holes compatible with 30 mm coaxial systems. The side features M2.5 hex socket head cap screws for flexible locking, which can be tightened using a 2 mm hex wrench. The snap-in design facilitates easy insertion or removal of optical components.
