30mm Coaxial Quick-Release Mounting Plate MFLF1CA-A

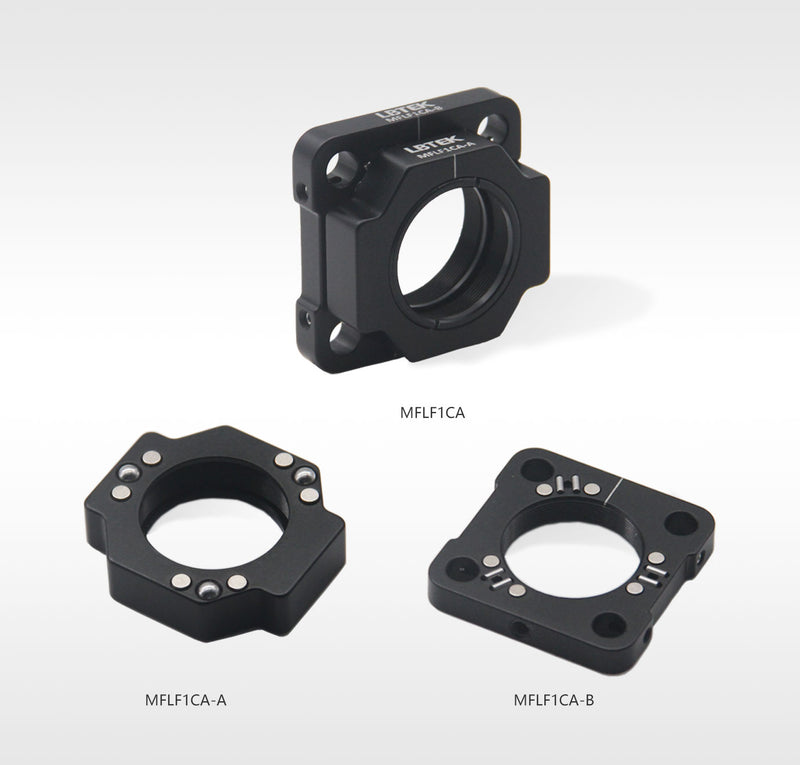

The LBTEK 30 mm magnetic quick-release coaxial plate MFLF1CA consists of a rear mounting bracket MFLF1CA-B and a front plate MFLF1CA-A, which are held together by neodymium iron boron magnets and 440C high-precision positioning steel balls. This allows the front plate to be easily installed or removed from the coaxial system during use. The included SM1R retaining ring enables optical components with a maximum thickness of 6.1 mm to be secured in the SM1 internal thread of the front plate. The rear plate also features SM1 threaded holes for expanding other components, with four Ø6 mm through-holes on the side, compatible with 30 mm coaxial systems. It uses M3 locking screws to secure coaxial rods and includes an M4 threaded hole at the bottom for ease of use in free space.
