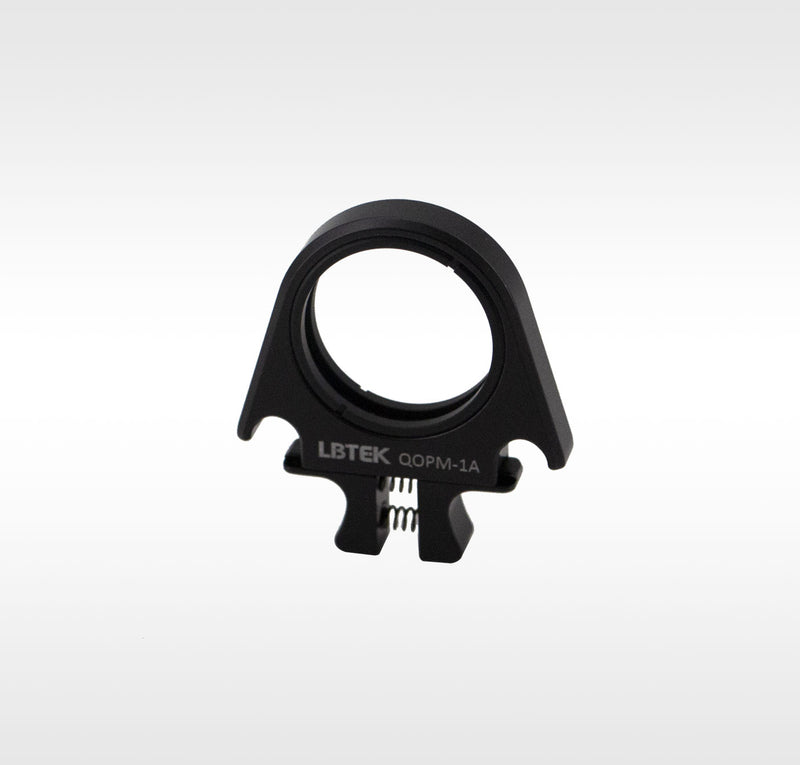

30mm Coaxial Quick-Release Mounting Plate — Model QOPM-1A
✔ In Stock — Ships Today
The 30 mm spring-loaded quick-release coaxial plate provided by LBTEK is compatible with 30 mm coaxial systems. It utilizes spring force in conjunction with dovetail grooves to achieve quick-release functionality, allowing insertion from any direction of the coaxial system. The center features an SM1 threaded through-hole and comes with two SM1R retaining rings, capable of securing optical components with a maximum thickness of 3.5 mm.
Key Features
- Material: 6061-T6 aluminum alloy
- SM1 threaded hole at center, includes two SM1R retaining rings
- Quick-release mechanism with dovetail groove and spring
- Accommodates optical components up to 25.4 mm diameter and 3.5 mm thickness
Application
Can be inserted from all directions of the coaxial system
| Clear Aperture | 23.0 mm |
No documents available for this product.
No CAD drawings available for this product.
Product Family: 30mm Coaxial Quick-Release Mounting Plate (8 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30mm Coaxial Quick-Release Mounting Plate ROPM-9B |
ROPM-9B
| — | — | — | View |
| 30mm Coaxial Quick-Release Mounting Plate ROPM-12.5B |
ROPM-12.5B
| — | — | — | View |
| 30mm Coaxial Quick-Release Mounting Plate QOPM-1A Current |
QOPM-1A
| — | — | — | |
| 30mm Coaxial Quick-Release Mounting Plate MFLF1CA |
MFLF1CA
| — | — | — | View |
| 30mm Coaxial Quick-Release Mounting Plate MFLF1CA-A |
MFLF1CA-A
| — | — | — | View |
| 30mm Coaxial Quick-Release Mounting Plate MFLF1CA-B |
MFLF1CA-B
| — | — | — | View |
| 30mm Coaxial Quick-Release Mounting Plate COPM1B |
COPM1B
| — | — | — | View |
| 30mm Coaxial Quick-Release Mounting Plate COPM1A |
COPM1A
| — | — | — | View |
