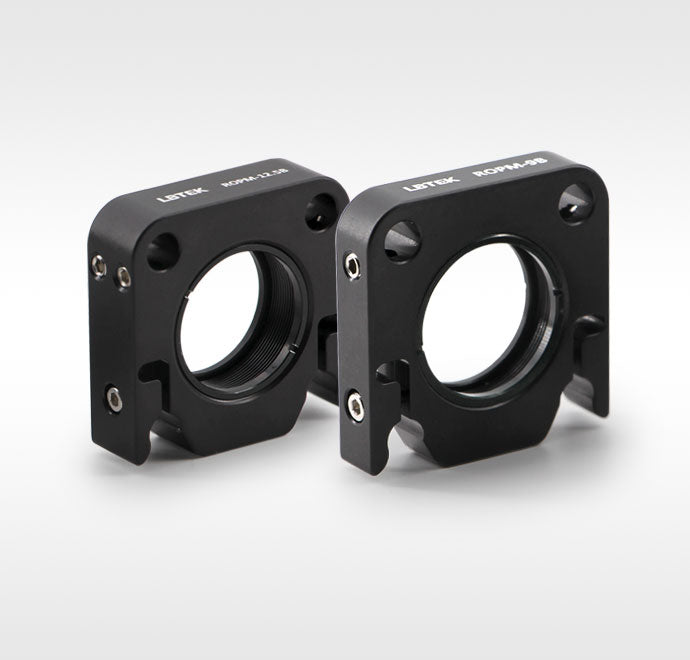

30mm Coaxial Quick-Release Mounting Plate ROPM-9B

The 30 mm removable flexible coaxial mounting plate provided by LBTEK is suitable for mounting Ø25.4 mm optical components, featuring an SM1 threaded through-hole and secured with dual retaining rings. The ROPM-9B can mount optical components with a maximum thickness of 5 mm, while the ROPM-12.5B can mount optical components with a maximum thickness of 8.5 mm. The base includes an M4 threaded hole for connecting to a post, and four coaxial rod through-holes compatible with 30 mm coaxial systems. The side features an M2.5 hex socket head cap screw and an M4 cup-point set screw for locking, which can be tightened with a 2 mm hex wrench. The flexible locking design facilitates easy insertion or removal of short coaxial systems.
