Princeton Instruments

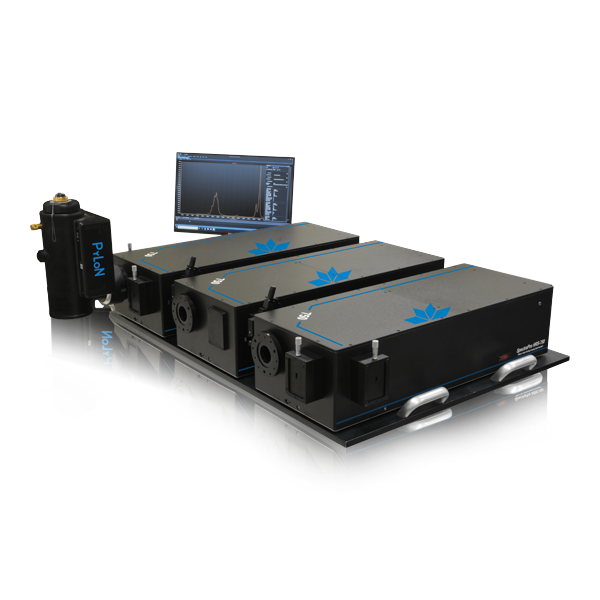

TriVista Triple Spectrometer System
PI-TRIVISTA-555Contact for pricing
In Stock
Contact Sales
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The TriVista is a research-grade triple spectrometer system comprising three synchronized spectrometer stages on a rigid baseplate. In additive mode, it provides ultra-high resolution (down to 0.005 nm at 500 nm). In subtractive mode, it achieves extreme stray light rejection for Raman spectroscopy as close as 5 cm⁻¹ from the Rayleigh line. Each stage can also operate independently for three simultaneous experiments. Available as TriVista 555 (3×500mm), 557 (2×500mm+750mm), and 777 (3×750mm).
Key Features
- Triple spectrometer: 3 synchronized stages
- Additive mode: ultra-high resolution (0.005 nm)
- Subtractive mode: Raman down to 5 cm⁻¹
- Independent stage operation (3 experiments simultaneously)
- Wavelength range 185 nm - 2.2 µm
- Software-controlled mode switching
- Compatible with PyLoN, PI-MAX4, NIRvana cameras
Applications
- Ultra-low frequency Raman
- Photoluminescence excitation mapping
- Quantum materials characterization
- Phonon spectroscopy
- High-resolution absorption spectroscopy
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 185 nm |
| Wavelength Range Max | 2200 nm |
| Focal Length | 500.0 mm |
| Weight | 102.0 kg |
| Wavelength Range | 185.0 – 2200.0 nm |
| Focal Length | 500.0 mm |
| Weight | 102.0 kg |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Spectrometers (4 variants)
