Broadband Dielectric Mirrors, Circular BDM15-A-SP

Name: Broadband Dielectric Mirrors, Circular BDM15-A-SP
Brand: WaveQuanta
SKU: BDM15-A-SP
Price: 209.31 SGD
Availability: InStock

BDM15-A-SP

$209.31

In Stock

Key Specifications

Diameter 15.0mm

Reflectance 99.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system

View all 49 calculators →

RoHS REACH

Broadband Dielectric Mirrors, Circular — Model BDM15-A-SP

Operating wavelength 400 nm-750 nm, Ø15.0 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV Fused Silica
Application: Beam Deflection
Operating Wavelength: 300 nm-1650 nm

Reflectors are used to change the direction of light beam emission. LBTEK's fused silica broadband dielectric coating mirrors achieve a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UV fused silica dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized reflector services with other materials and coating systems. For customization needs, please contact our technical support.

Broadband Dielectric Mirrors, Circular

Working Wavelength: 300 nm-750 nm, 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
Application: Deflecting Optical Path
Optical Material: UV Fused Silica

Diameter	15.0 mm
Thickness	3.0 mm
Operating Wavelength	400 nm-750 nm
Clear Aperture	90% CA
Material	UV fused silica
Diameter Tolerance	+0.0/-0.2 mm
Thickness Tolerance	±0.2 mm
Coating	Medium film
Reflectivity	Ravg>99%@400 nm-750 nm(AOI=0°-45°)
Surface Quality (Scratch/Dig)	40/20
Surface Flatness (@633 nm)	λ/10
Parallelism	<30 arcsec
Package Quantity	1

No documents available for this product.

Mechanical Drawing PDF

CAD Drawing Download

3D Model (STL) STL — Download

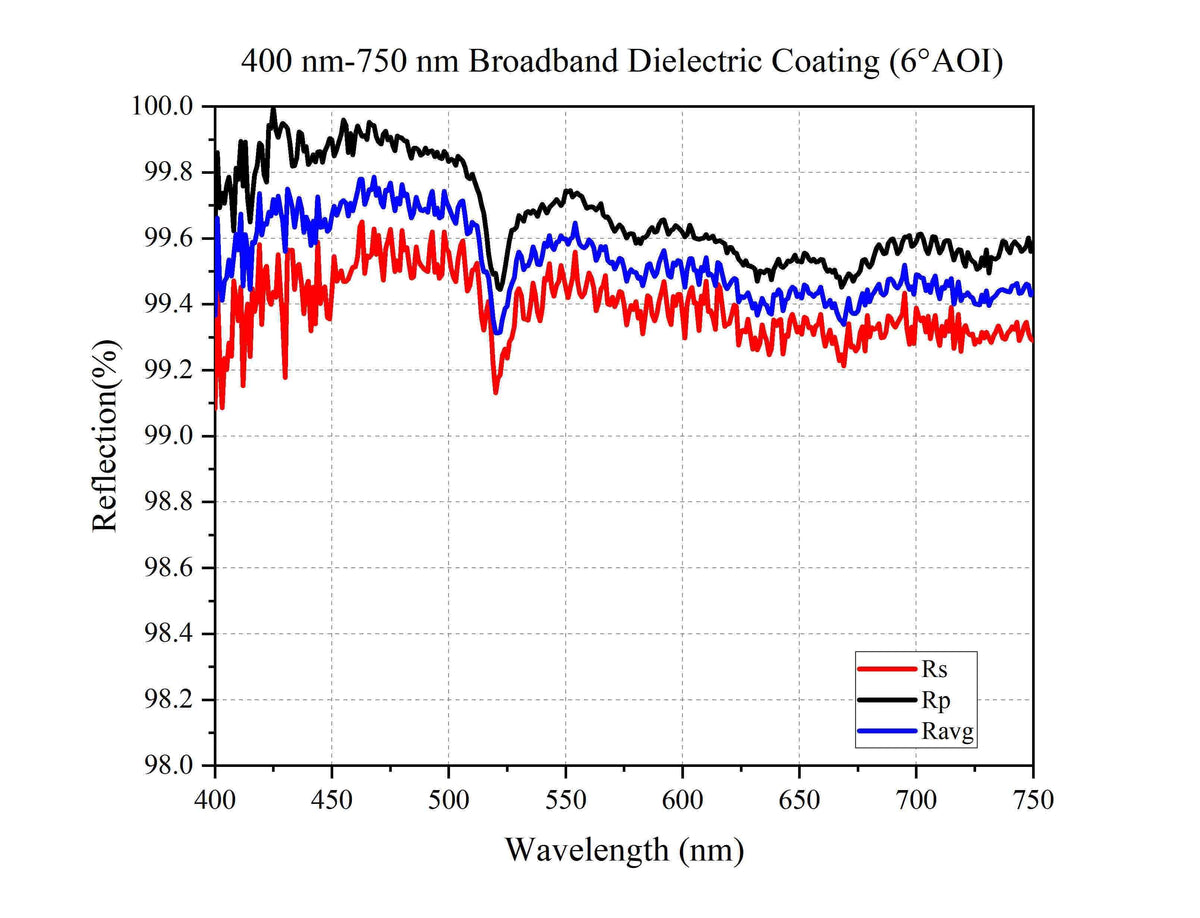

Curve - 400 nm-750 nm Broadband Dielectric Coating (6°AOI)

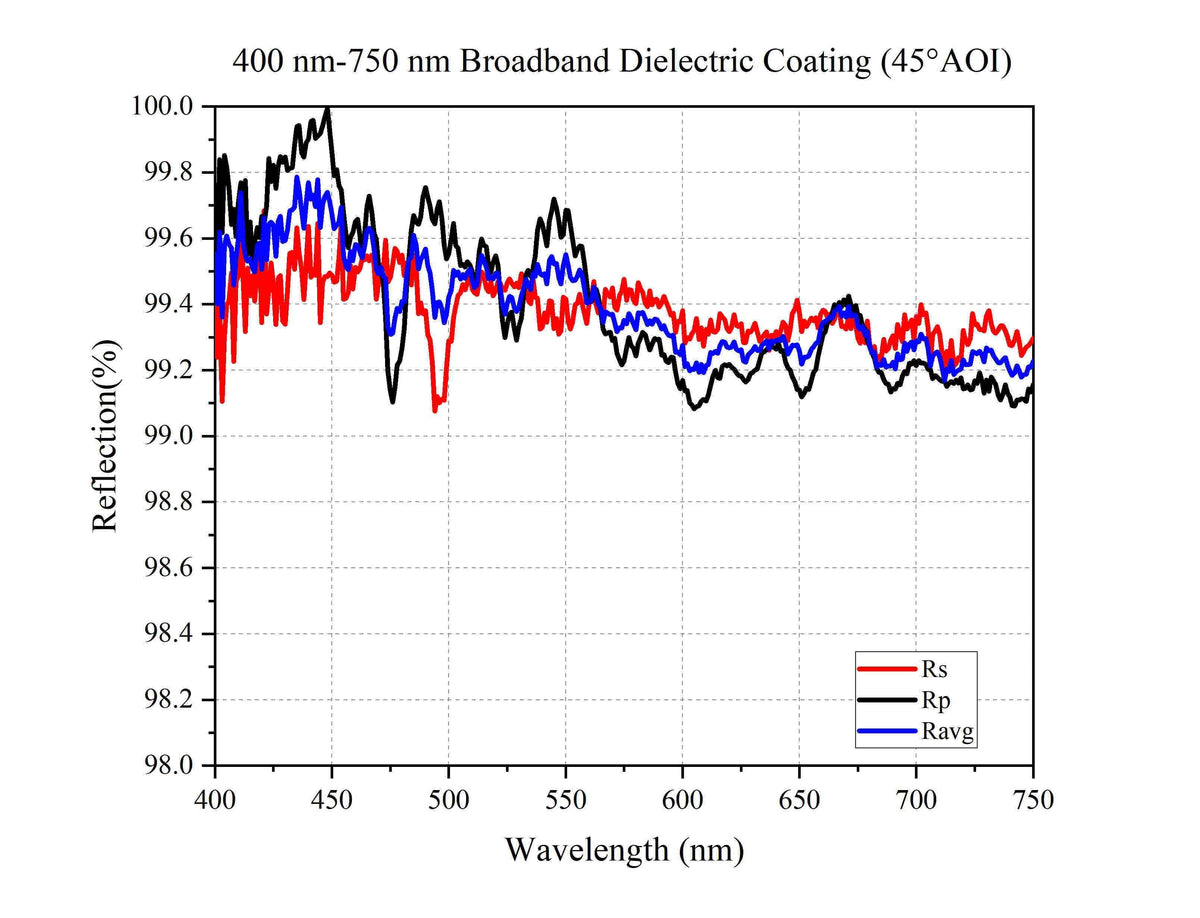

Curve - 400 nm-750 nm Broadband Dielectric Coating (45°AOI)

Product Family: Broadband Dielectric Mirrors, UV Fused Silica, Operating Wavelength: 300 nm-1650 nm (32 variants)

Product ▴▾	SKU	Diameter ▴▾	Thickness ▴▾	Operating Wavelength ▴▾
Broadband Dielectric Mirrors, Circular BDM15-A-SP Current	`BDM15-A-SP`	15.0 mm	3.0 mm	400 nm-750 nm
Broadband Dielectric Mirrors, D-shaped BDM1D-A	`BDM1D-A`	—	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, D-shaped BDM1D-B	`BDM1D-B`	—	6.0 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, D-shaped BDM1D-C	`BDM1D-C`	—	6.0 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Square BDM1S-A	`BDM1S-A`	—	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Square BDM1S-B	`BDM1S-B`	—	6.0 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Square BDM1S-C	`BDM1S-C`	—	6.0 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Square BDMR-39×30-A-SP	`BDMR-39×30-A-SP`	—	5.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-A	`BDM1E-A`	—	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-B	`BDM1E-B`	—	6.0 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-C	`BDM1E-C`	—	6.0 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-A	`BDM05E-A`	—	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-B	`BDM05E-B`	—	6.0 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-C	`BDM05E-C`	—	6.0 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A-SP	`BDM1-A-SP`	25.4 mm	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-A	`BDM05-A`	12.7 mm	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A	`BDM1-A`	25.4 mm	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM2-A	`BDM2-A`	50.8 mm	12 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-B	`BDM05-B`	12.7 mm	6.0 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM1-B	`BDM1-B`	25.4 mm	6.0 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM2-B	`BDM2-B`	50.8 mm	12 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM05-C	`BDM05-C`	12.7 mm	6.0 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-C	`BDM1-C`	25.4 mm	6.0 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM2-C	`BDM2-C`	50.8 mm	12 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A-P10	`BDM1-A-P10`	25.4 mm	6.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-B-P10	`BDM1-B-P10`	25.4 mm	6.0 mm	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM1-C-P10	`BDM1-C-P10`	25.4 mm	6.0 mm	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-T1-A-SP	`BDM1-T1-A-SP`	25.4 mm	1.0 mm	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-UVA	`BDM05-UVA`	12.7 mm	6.0 mm	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-UVA	`BDM1-UVA`	25.4 mm	6.0 mm	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-UVA-P10	`BDM1-UVA-P10`	25.4 mm	6.0 mm	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM2-UVA	`BDM2-UVA`	50.8 mm	12.0 mm	300 nm-750 nm	View
