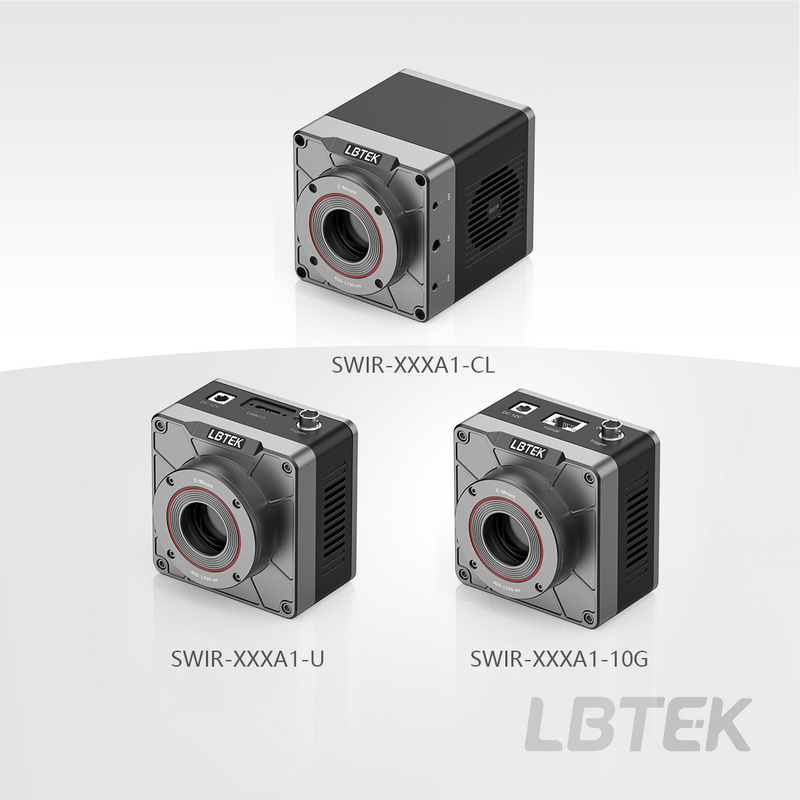

High-resolution infrared camera SWIR-33A1-CL
SWIR-33A1-CLContact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
LBTEK's high-resolution infrared camera is equipped with a SONY InGaAs sensor, featuring a broad spectral response range of 400-1700 nm. Pixel options include 330,000, 1.3 million, and 5 million. Data transfer interfaces are available in four options: USB3, 10GigE, GigE, and CameraLink. It has a built-in TEC cooling element and supports external IO trigger control. Its optical interface is C-Mount, and it can be connected via SM1 threaded adapters, such as SM1-CC, to SM1 coaxial mounting plates or SM1 lens tubes, etc., for integration into a 30 mm coaxial system. The camera's mechanical housing has M4 and M6 threaded holes on the bottom for convenient mounting in free-space applications.
Key Features
- C-Mount Optical Interface
- Up to 5 Megapixels
- Spectral Range: 400-1700 nm
Application
Camera Rear Interface Diagram
| Sensor Type | InGaAs |
| Spectral range | 400-1700 nm |
| Pixel size | 5.0 µm x 5.0 µm |
| Effective pixels | 0.33 MP |
| Sensor Format | 1/4'' |
| Frame Rate & Resolution | 8 Bit：</br>400fps@648×514、753fps@328×258 </br>12 Bit：</br>212fps@648×514、400fps@328×258 |
| Shutter Type | Global Shutter |
| color | Black and white |
| Bit Depth | 12 bit/8 bit |
| Data Transfer Interface | CameraLink |
| Zoom Range | 1x-15x |
| Exposure Time | 15 µs-60 sec |
| Optical Interface | C-Mount |
| Signal-to-noise ratio | 52 dB |
| Dynamic Range | 59 dB |
| Conversion Gain | 42.29e/ADU |
| Read Noise | 176e |
| Full Well Capacity | 173ke |
| Memory | 512 MB |
| Cooling Temperature | Below room temperature 25 °C |
| Power Method | 12V power adapter powered |
| Field of View | 2.35 degrees |
| Operating Temperature | -20~60 ℃ |
| Operating Temperature | -40~85 ℃ |
| Operating Humidity | 20%-80%, no condensation |
| Size | 75mm×75mm×97.5mm |
