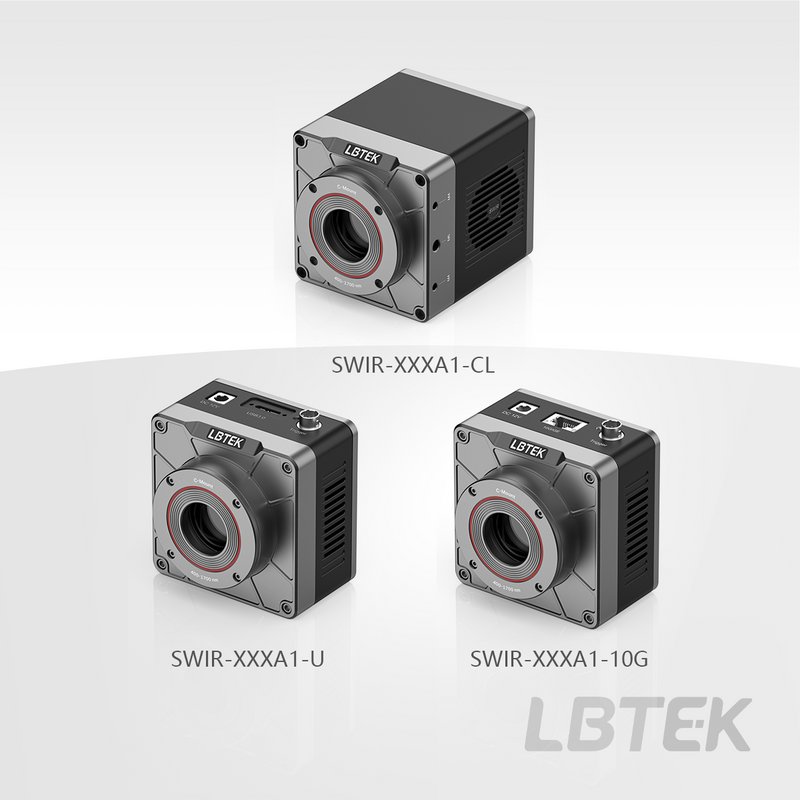

High-resolution infrared camera SWIR-500A1-U
SWIR-500A1-UContact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
LBTEK's high-resolution infrared camera is equipped with a SONY InGaAs sensor, featuring a broad spectral response range of 400-1700 nm. Pixel options include 330,000, 1.3 million, and 5 million. Data transfer interfaces are available in four options: USB3, 10GigE, GigE, and CameraLink. It has a built-in TEC cooling element and supports external IO trigger control. Its optical interface is C-Mount, and it can be connected via SM1 threaded adapters, such as SM1-CC, to SM1 coaxial mounting plates or SM1 lens tubes, etc., for integration into a 30 mm coaxial system. The camera's mechanical housing has M4 and M6 threaded holes on the bottom for convenient mounting in free-space applications.
Key Features
- C-Mount Optical Interface
- Up to 5 Megapixels
- Spectral Range: 400-1700 nm
Application
Camera Rear Interface Diagram
| Sensor Type | InGaAs |
| Spectral range | 400-1700 nm |
| Pixel size | 3.45 μm×3.45 μm |
| Effective pixels | 5 MP |
| Sensor Format | 1/1.4'' |
| Frame Rate & Resolution | 8 Bit：</br>61fps@2576×2050、135fps @1288×1026</br> 12 Bit：</br>35fps @ 2576×2050、135fps @1288×1026 |
| Shutter Type | Global Shutter |
| color | Black and white |
| Bit Depth | 8 bit / 12 bit |
| Data Transfer Interface | USB3.0 |
| Signal-to-noise ratio | 46.1 dB (High Gain Mode)</br> 48.4 dB (Low Gain Mode) |
| Zoom Range | 1×-15× |
| Exposure Time | 15 µs-60 sec |
| Optical Interface | C-Mount |
| Dynamic Range | 51.3 dB (High Gain Mode)</br> 51.4 dB (Low Gain Mode) |
| Read Noise | 111.8e (High Gain Mode)</br> 186.6e (Low Gain Mode) |
| Full Well Capacity | 41.3ke (High Gain Mode)</br> 69.9ke (Low Gain Mode) |
| Power Method | USB3 interface power supply / 12V power adapter power supply |
| Power Consumption | <2.1 W (Uncooled) / <25 W (Cooled) |
| Operating Temperature | -20~60 ℃ |
| Operating Temperature | -40~85 ℃ |
| Operating Humidity | 20%-80%, no condensation |
| Size | 80mm×85.2mm×65.7mm |
| Conversion Gain | 10.3e/ADU (High Gain Mode)</br> 17.29e/ADU (Low Gain Mode) |
| Memory | 512 MB |
| Cooling Temperature | Below room temperature 25 °C |
| Field of View | 2.35 degrees |
