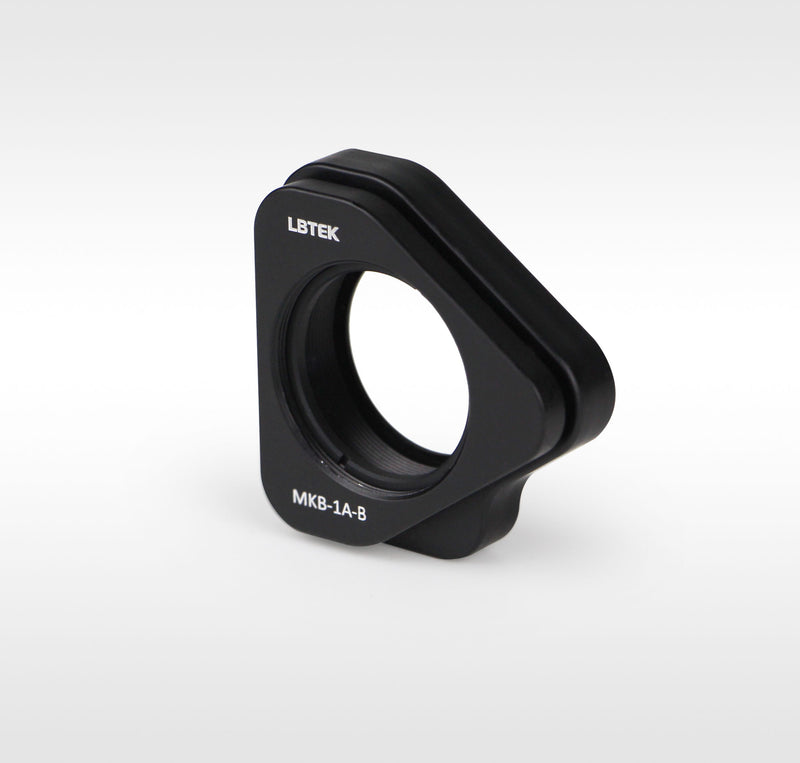

Magnetic Quick-Release Mounts — Model MKB-1A-B
✔ In Stock — Ships Today
The LBTEK Magnetic Quick-Release Mount MKB-1A consists of two parts: the back plate MKB-1A-A and the front plate MKB-1A-B. They are attached together via NdFeB magnets and 440C high-precision positioning steel balls, allowing the front plate to be easily installed or removed from the optical system during use. With the included SM1R retaining ring, optical components with a maximum thickness of 9 mm can be secured in the SM1 internal thread of the front plate. The back plate also features an SM1 threaded hole for expanding other components, and it comes with an M4 threaded hole at the bottom for frees-pace situations.
Key Features
- High-precision positioning achieved with balls and V-grooves
- Equipped with M4 threaded holes at the bottom
- Front and back plates sold separately
Application
Front and back plates combining for quick-release in free space.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Magnetic Quick-Release Mounts (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Magnetic Quick-Release Mounts MKB-1A |
MKB-1A
| — | — | — | View |
| Magnetic Quick-Release Mounts MKB-1A-A |
MKB-1A-A
| — | — | — | View |
| Magnetic Quick-Release Mounts MKB-1A-B Current |
MKB-1A-B
| — | — | — |
