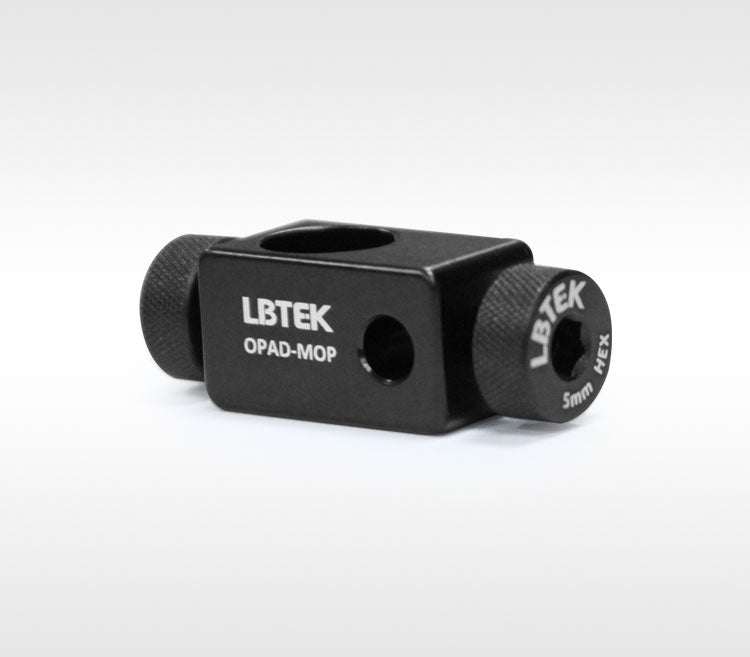

Ø12.7 mm Post Angle Clamp — Model OPAD-MOP
✔ In Stock — Ships Today
The Ø12.7 mm Post to Ø6 mm Post 90 Degree Angle Clamp from LBTEK is designed for angular transition between Ø12.7 mm and Ø6 mm posts at 90°. The distance between the two center holes is 12.7 mm, and the perpendicularity of the clamped post is within 0.03 μm. It features thumb locking screws on both sides with POM material screw heads to prevent post scratching during tightening. All thumb screws can be reinforced using 5 mm hex keys (Note: Excessive torque may cause POM deformation damage, recommend using L-shaped hex keys holding the short end for gentle tightening).
Key Features
- Material: 6061-T6 aluminum alloy
- Compatible with Ø12.7 mm post
- Clamp angle: 90°
Application
OPAD-MOP is suitable for transitionting from Ø12.7 mm post to Ø6 mm post
| Material | 6061-T6 aluminum alloy |
| Fixture angle | 90° |
| Surface Treatment | Black anodized |
| Hand-tightened screw | M6 Knurled Socket/2 pcs |
| Applicable connecting rod diameter | Ø12.7 mm to Ø6 mm |
| Distance between two center holes | 12.7 mm |
| Attribute 568 | ＜0.03 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
